Test 11 - Rear Door Unlock Detection Switch Circuit

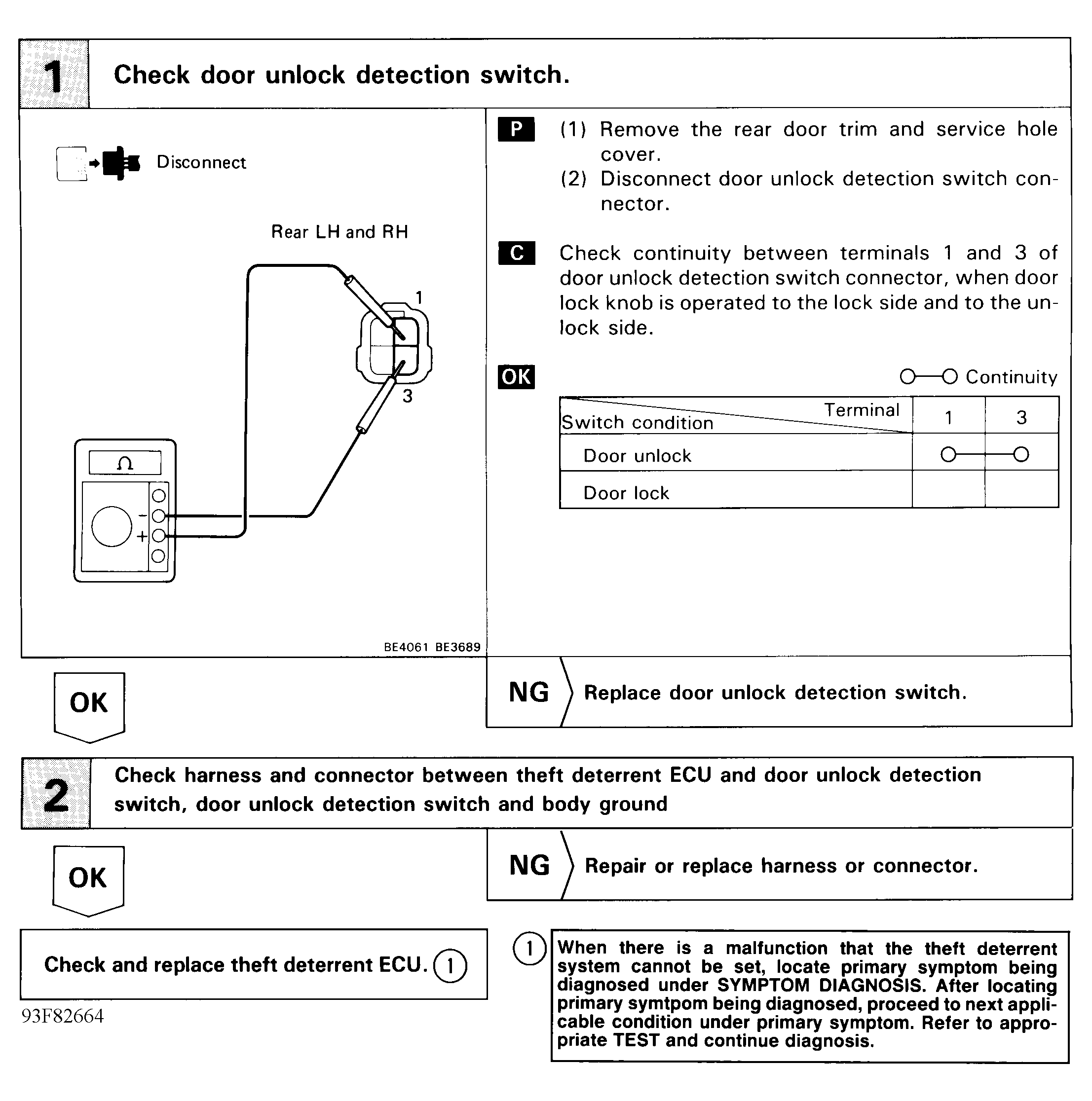

Fig 1: Test 11 - Rear Door Unlock Detection Switch Circuit
G93F82664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
