Odometer & Trip Meter Switch Test

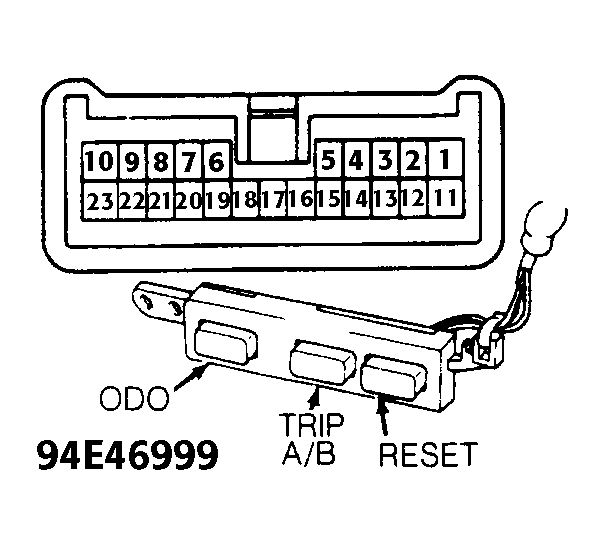

- Disconnect electrical connector from odometer and trip meter switch. See Fig 1. If continuity is not as follows, replace switch: With no buttons pressed, there should be no continuity between terminal No. 19 and terminals No. 16, 17 and 18.
- With TRIP A/B button pressed, there should be continuity between terminals No. 17 and 19. With RESET button pressed, there should be continuity between terminals No. 18 and 19. With ODO button pressed, there should be continuity between terminals No. 16 and 19.
