Instrument Cluster Circuit Testing

NOTE: Remove instrument cluster. To identify connectors, See Fig 1. Check voltage, resistance and continuity at specified terminals of instrument cluster connector (harness side). See Fig 2- Fig 5 . Unless specified otherwise, use a DVOM with a minimum input impedance of 10-megohms during testing.

Fig 1: Harness Connector & Gauge Terminal On Back Of Instrument Cluster ID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

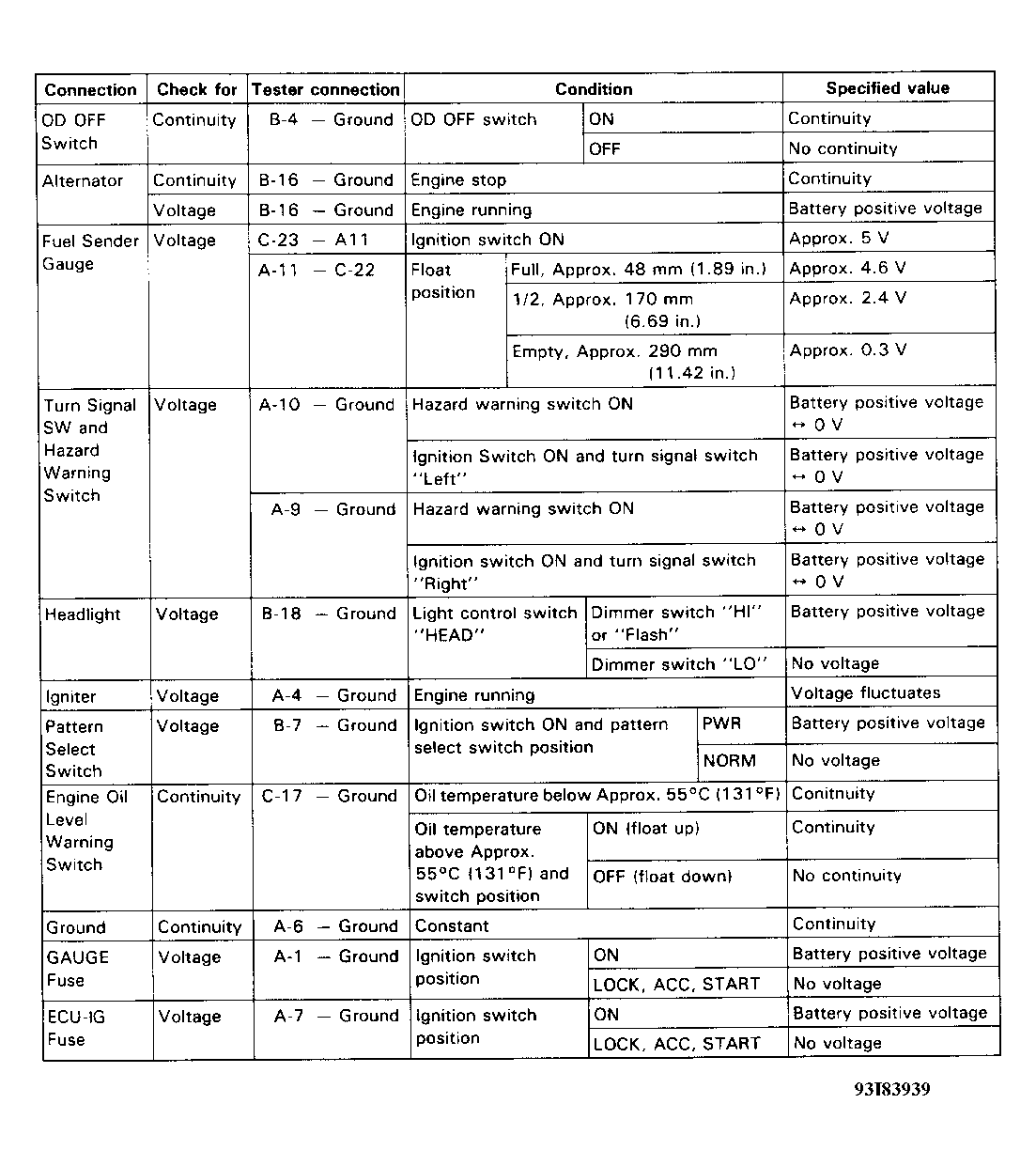

Fig 2: Testing Instrument Cluster Circuits (Canada - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

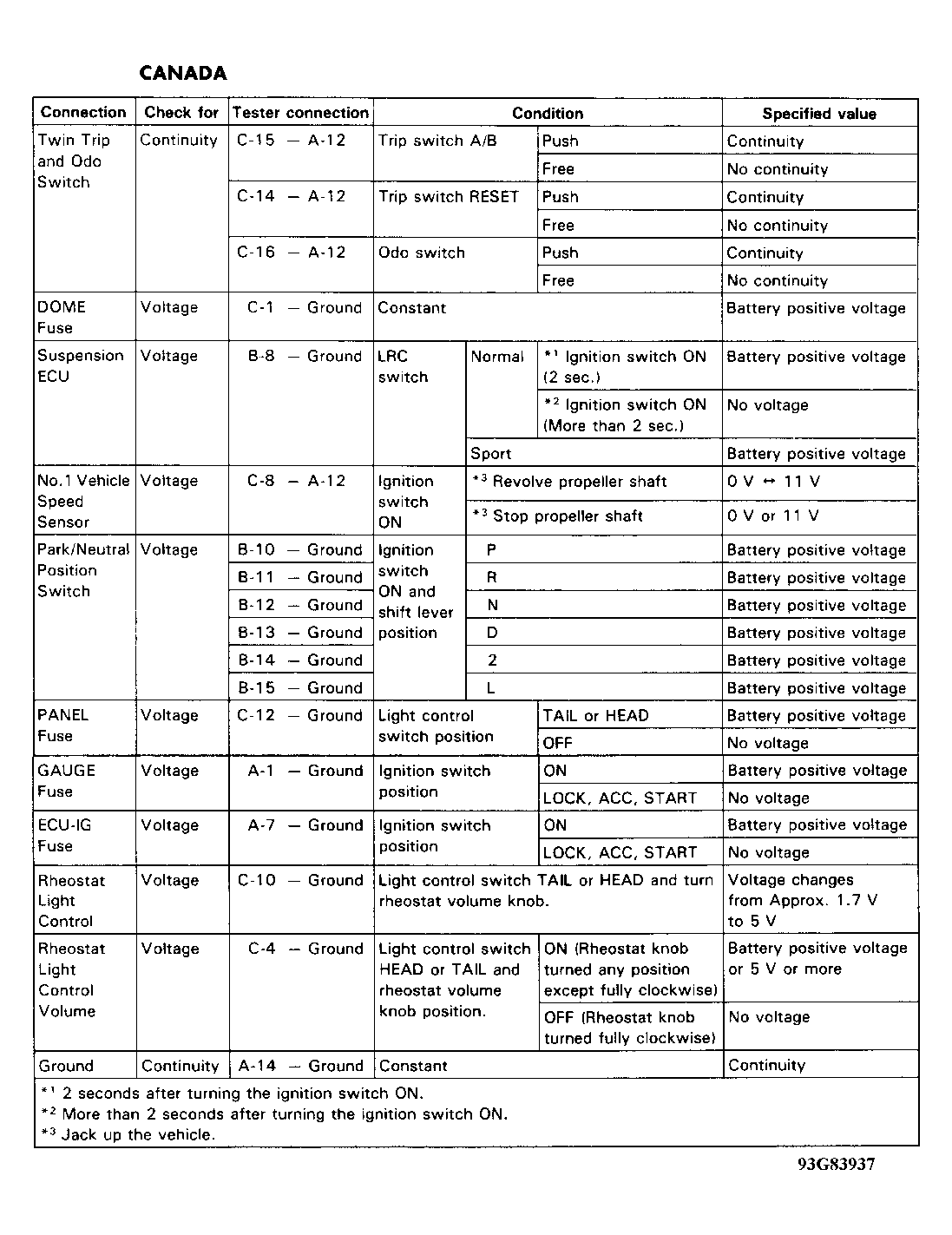

Fig 3: Testing Instrument Cluster Circuits (Canada - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Testing Instrument Cluster Circuits (USA - 1 Of 2)

Fig 5: Testing Instrument Cluster Circuits (USA - 2 Of 2)
