Code 14 - Ignition Signal Circuit, IGNITOR No. 1

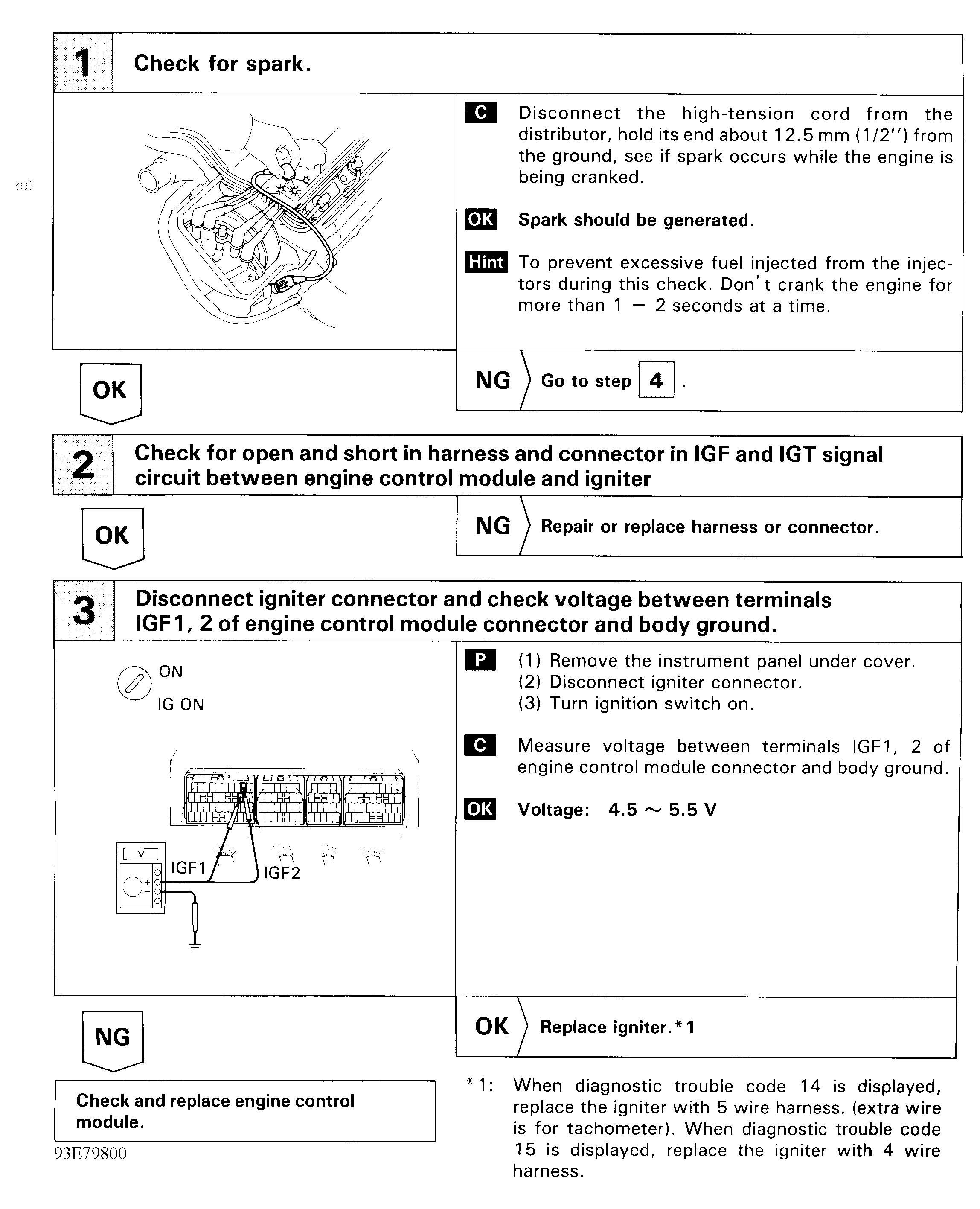

Fig 1: Code 14 Flow Chart - 1 Of 4 (LS400) Ignition Signal Circuit - Ignitor No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

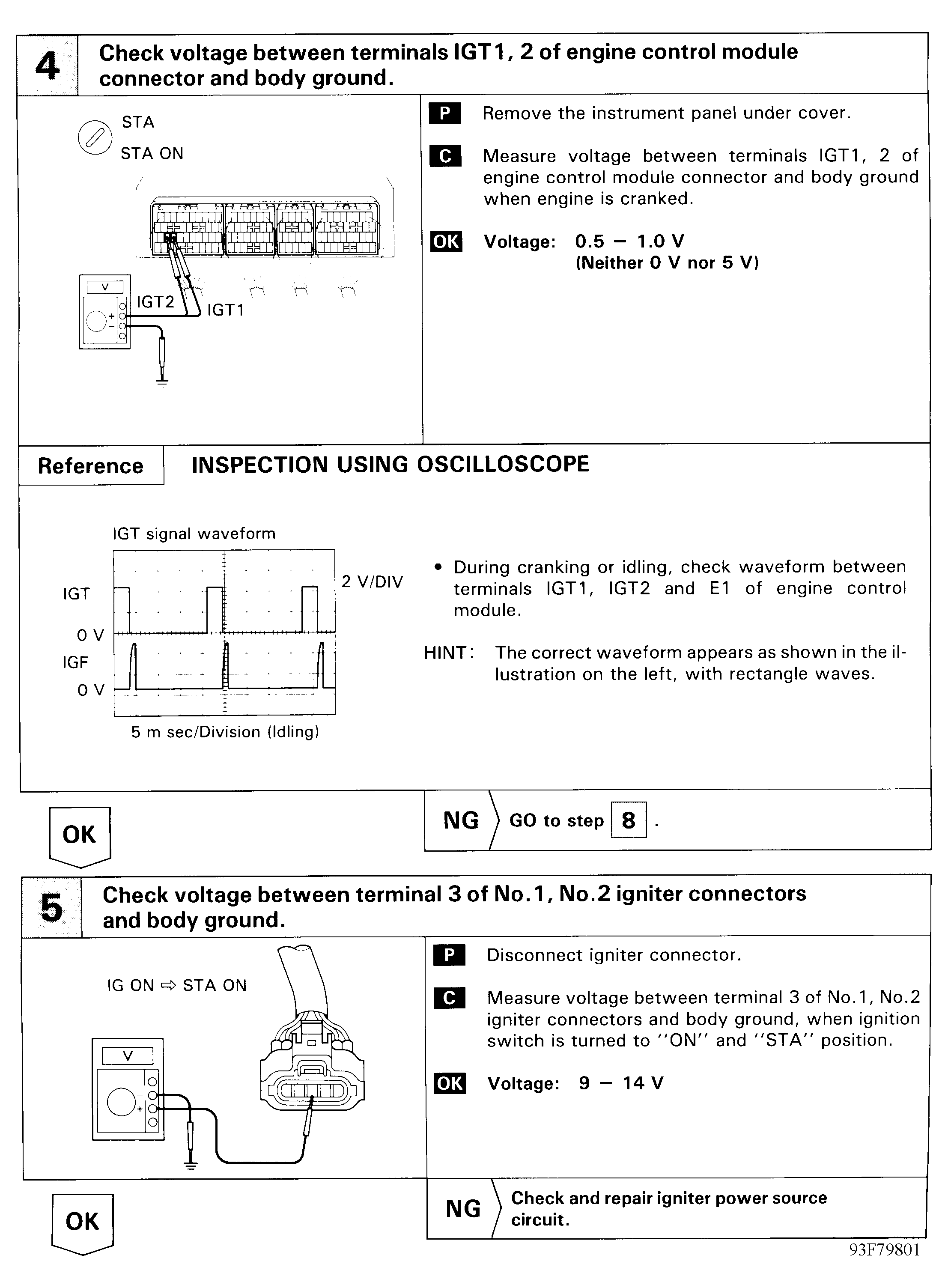

Fig 2: Code 14 Flow Chart - 2 Of 4 (LS400) Ignition Signal Circuit - Ignitor No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

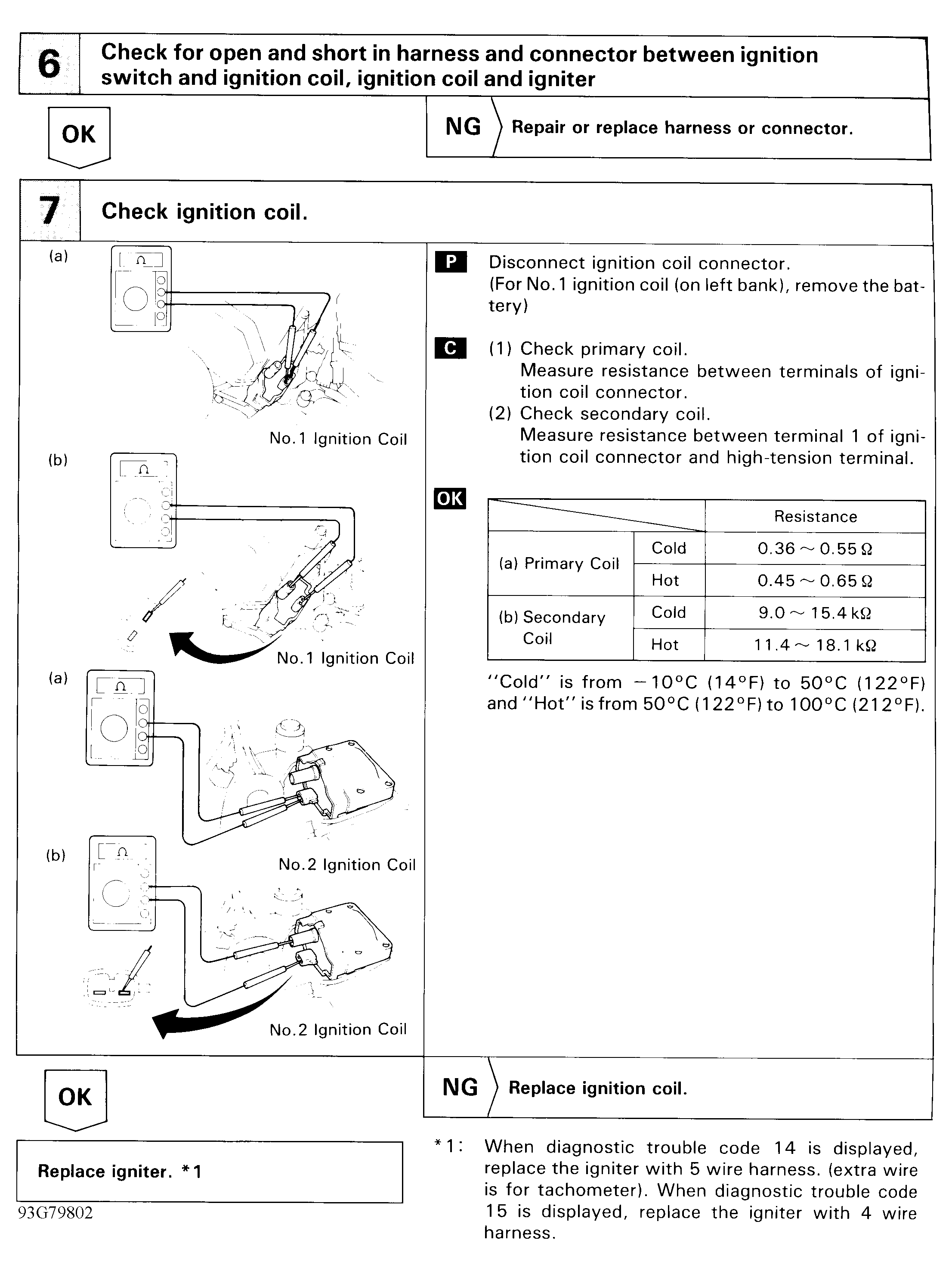

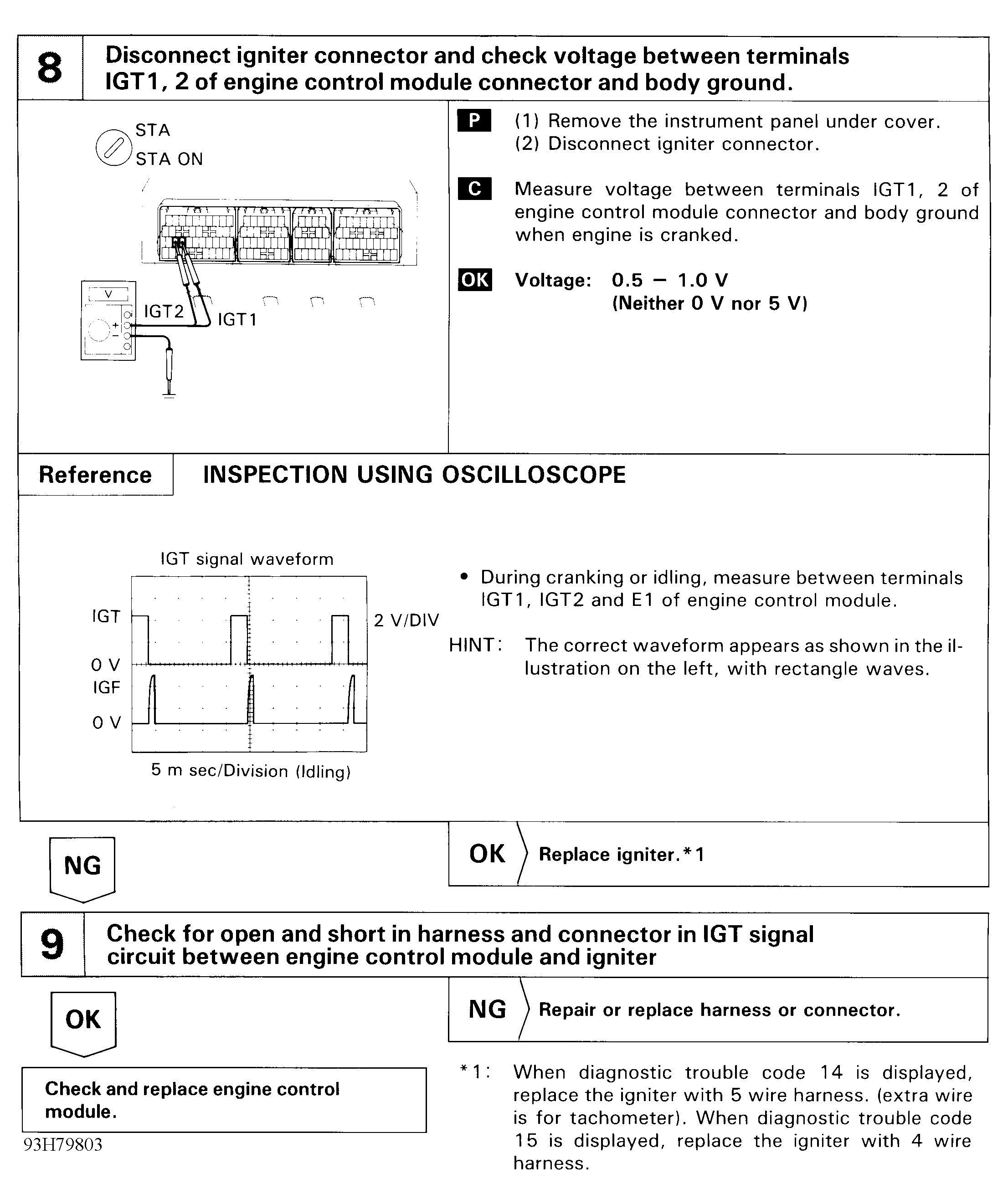

Fig 3: Code 14 Flow Chart - 3 Of 4 (LS400) Ignition Signal Circuit - Ignitor No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Code 14 Flow Chart - 4 Of 4 (LS400) Ignition Signal Circuit - Ignitor No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
