Main Junction Block Identification (1990-94): Notes

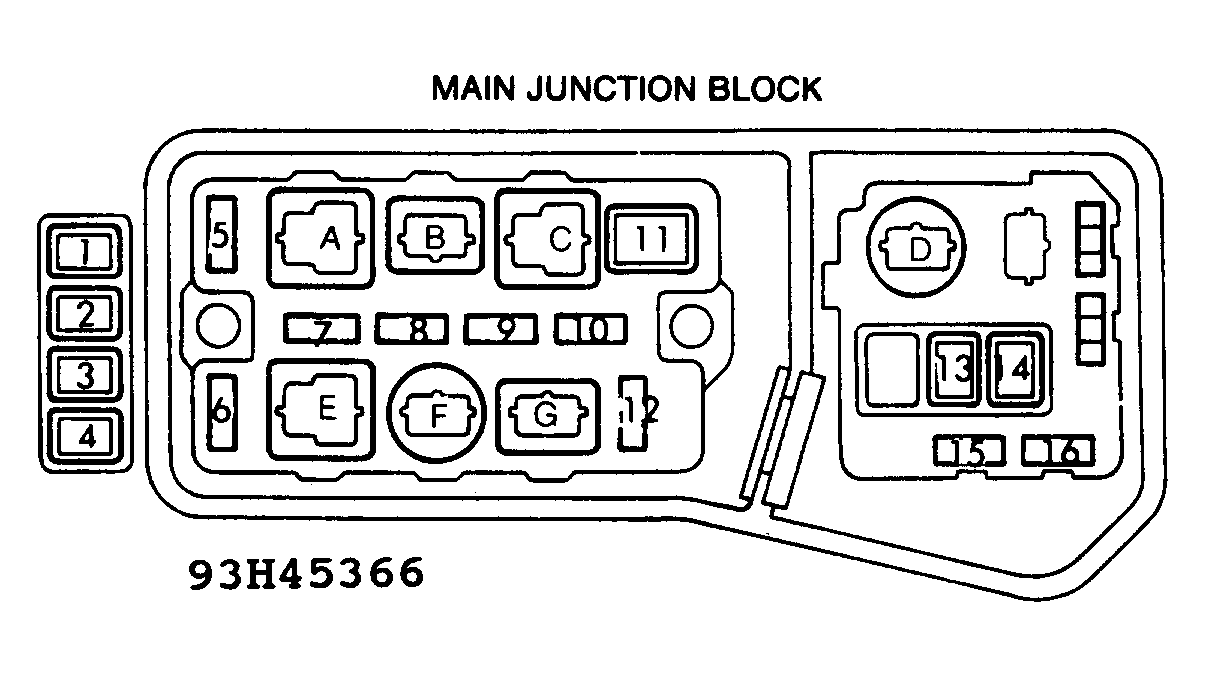

Fig 1: Main Junction Block Identification (1990-94)
G93H45366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
