Code 14 - Ignition Signal Circuit

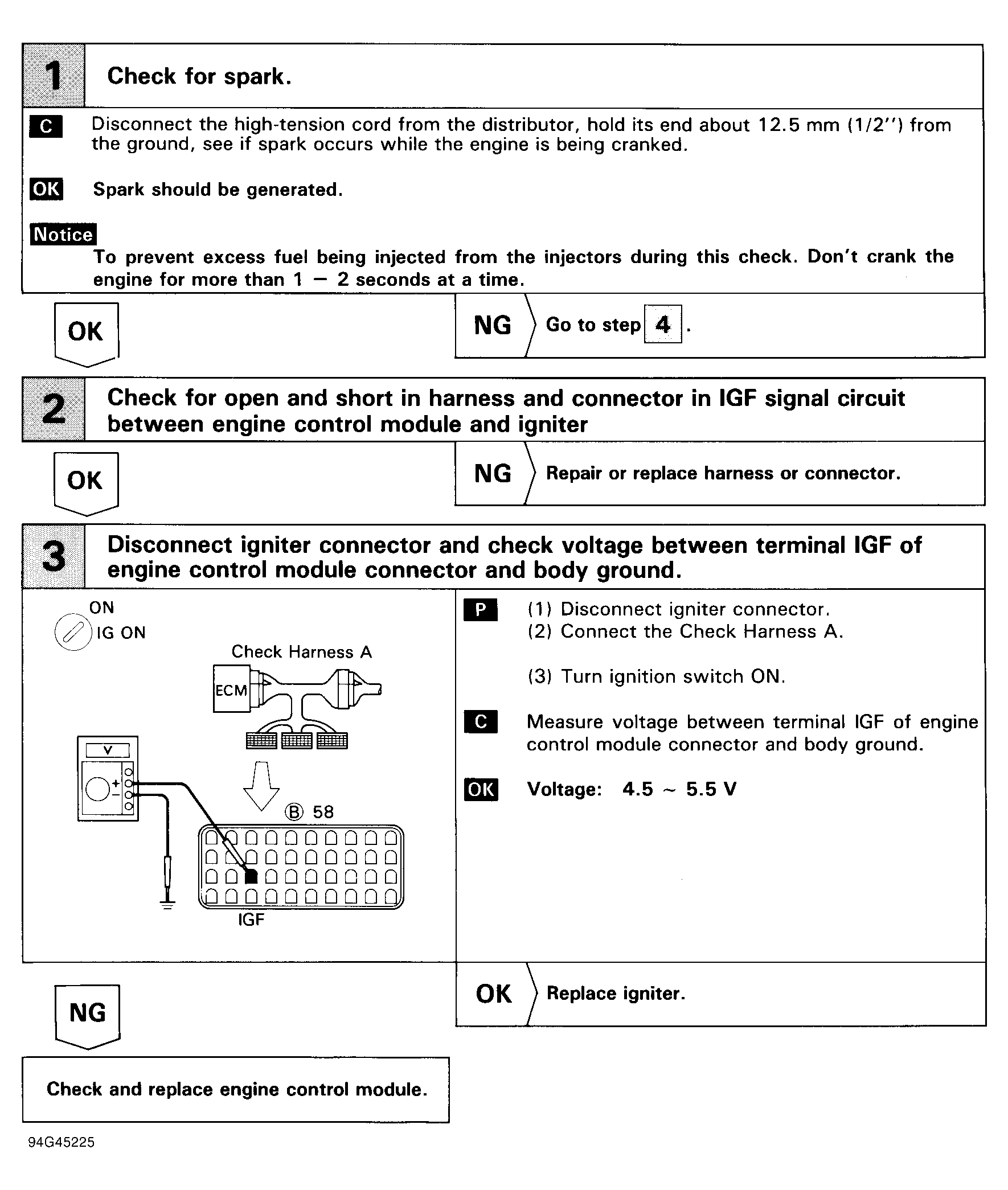

Fig 1: Code 14 Flow Chart - 1 Of 4 (SC300) Ignition Signal Circuit
G94G45225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

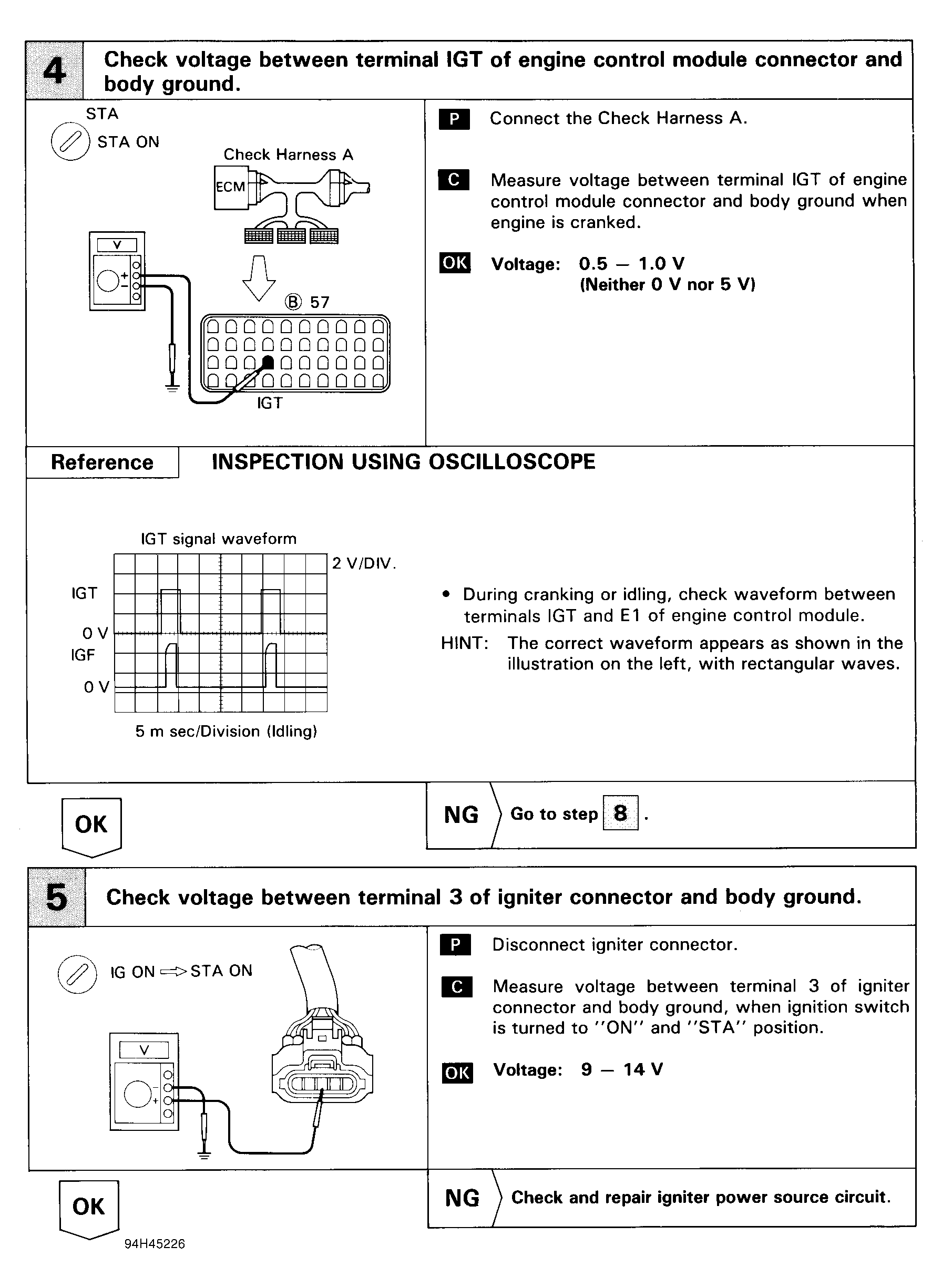

Fig 2: Code 14 Flow Chart - 2 Of 4 (SC300) Ignition Signal Circuit
G94H45226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

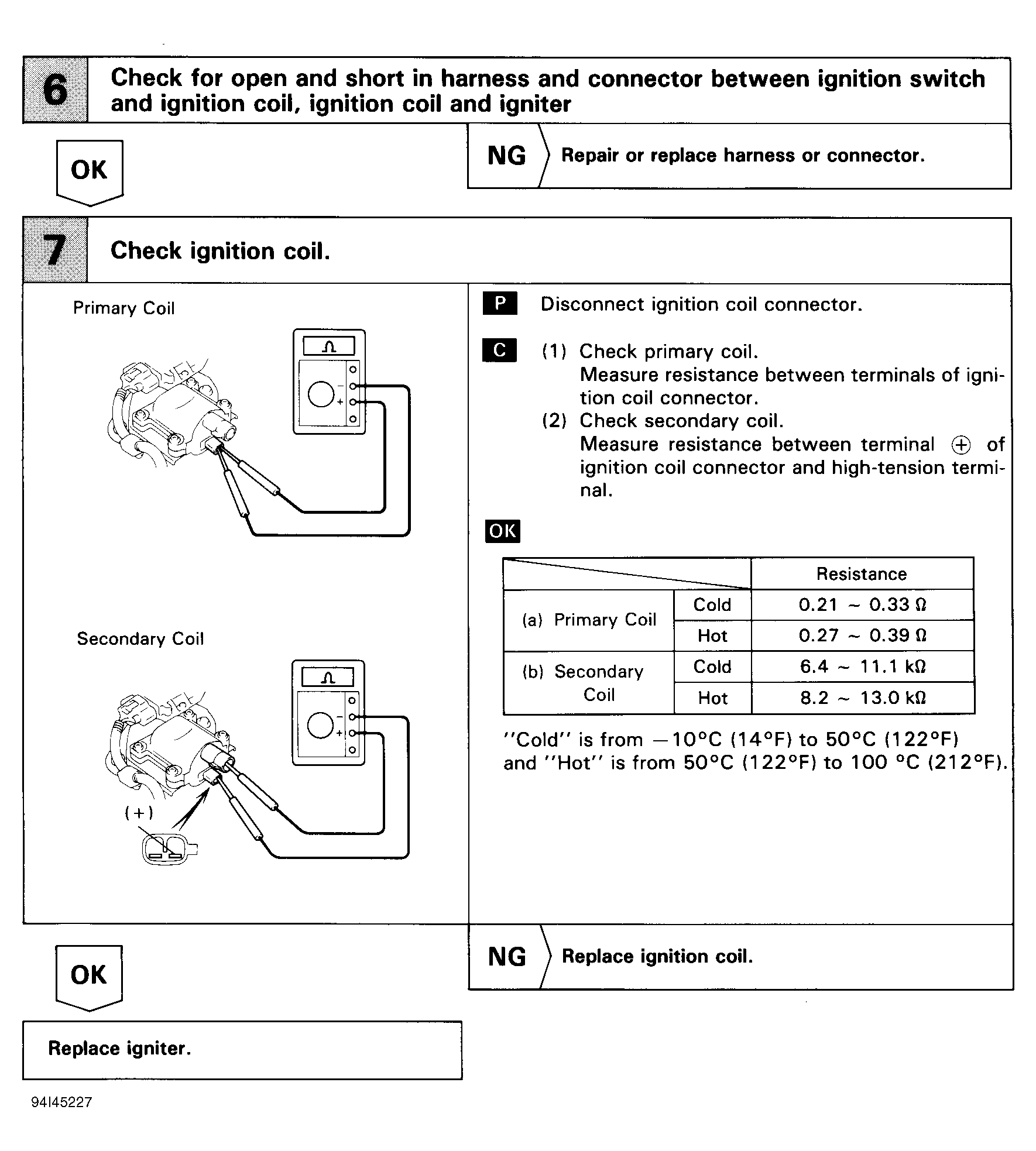

Fig 3: Code 14 Flow Chart - 3 Of 4 (SC300) Ignition Signal Circuit
G94I45227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

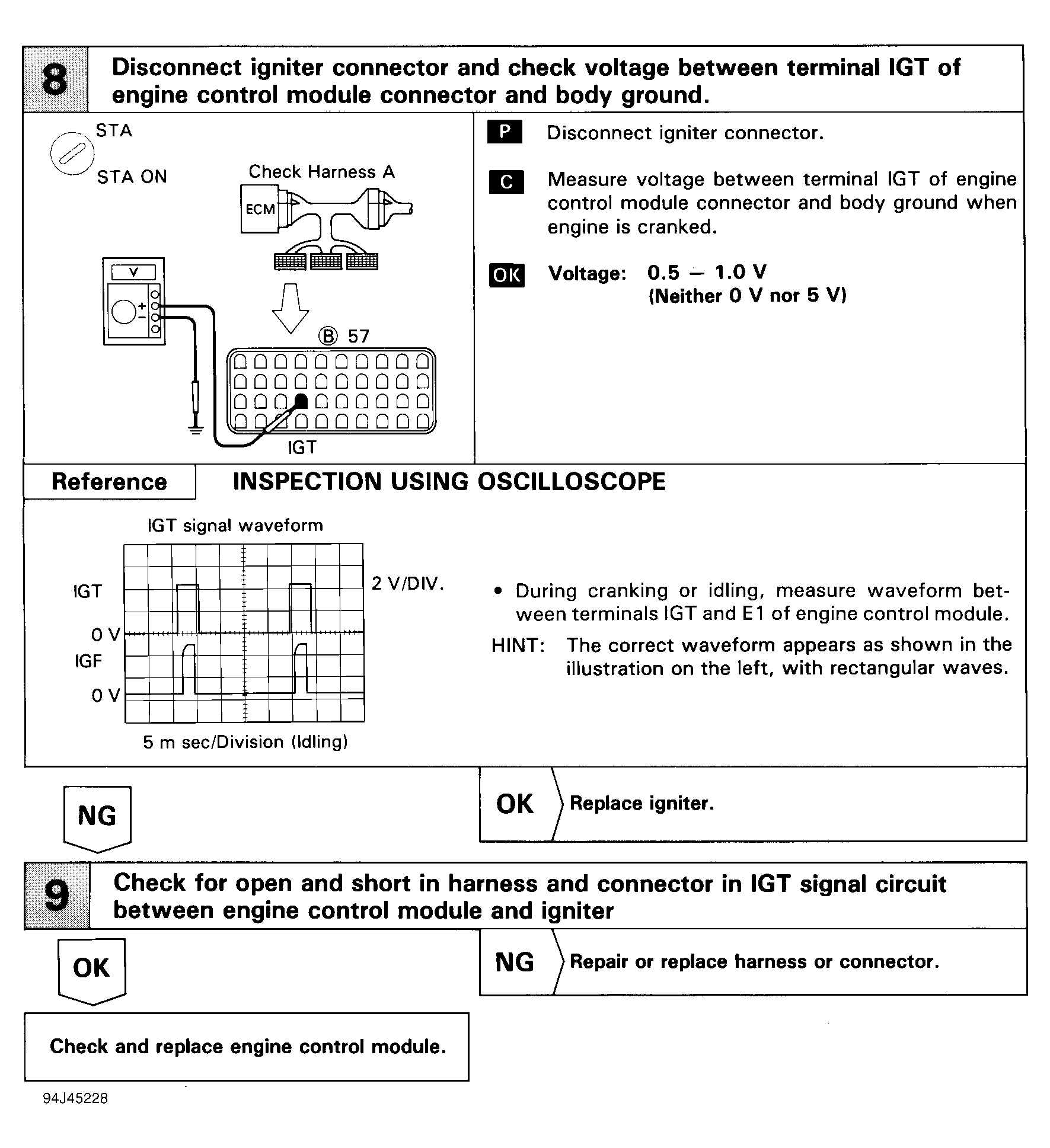

Fig 4: Code 14 Flow Chart - 4 Of 4 (SC300) Ignition Signal Circuit
G94J45228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
