Code 71 - EGR System Malfunction

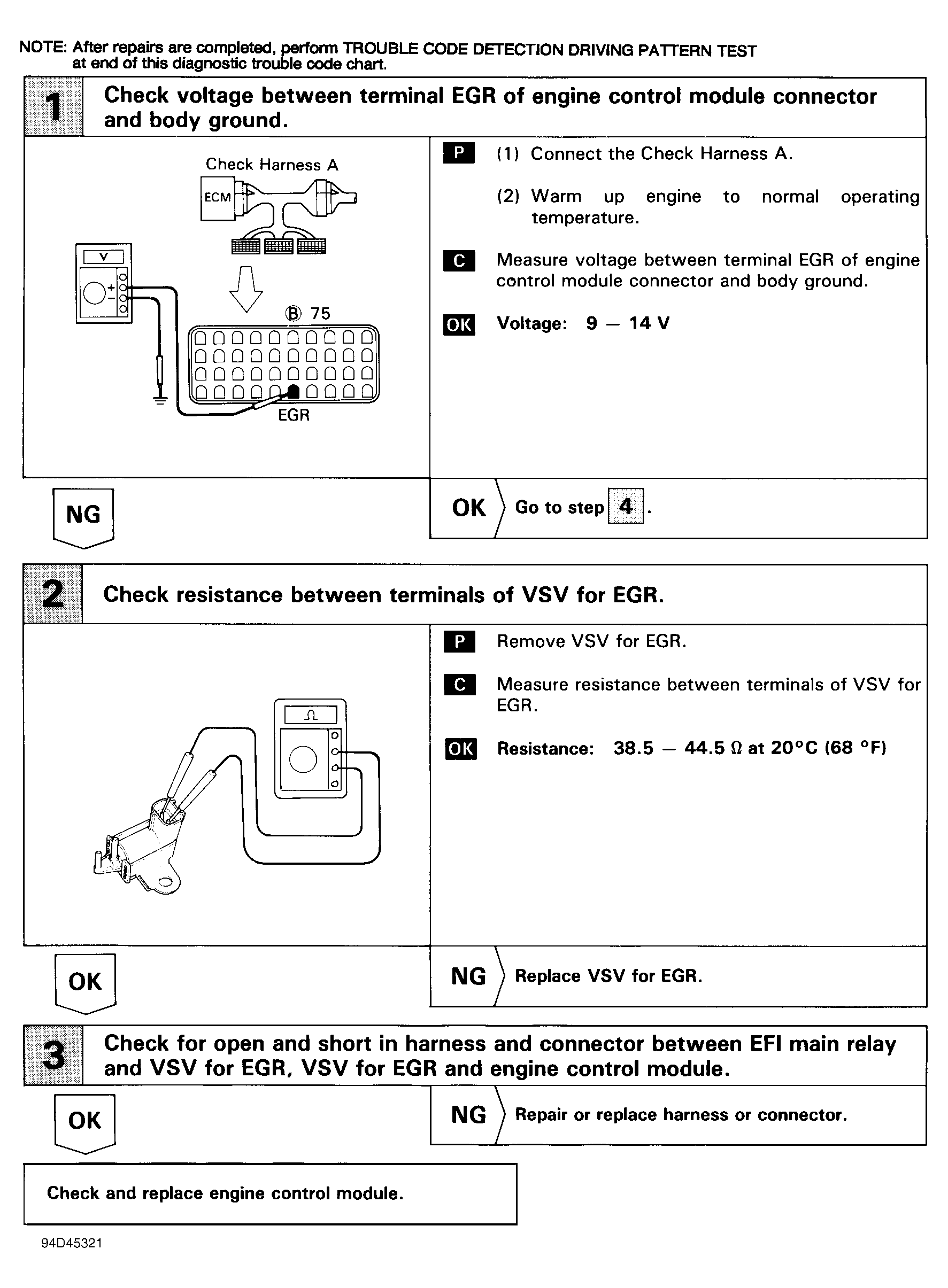

Fig 1: Code 71 Flow Chart - 1 Of 2 (SC300) EGR System Malfunction
G94D45321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

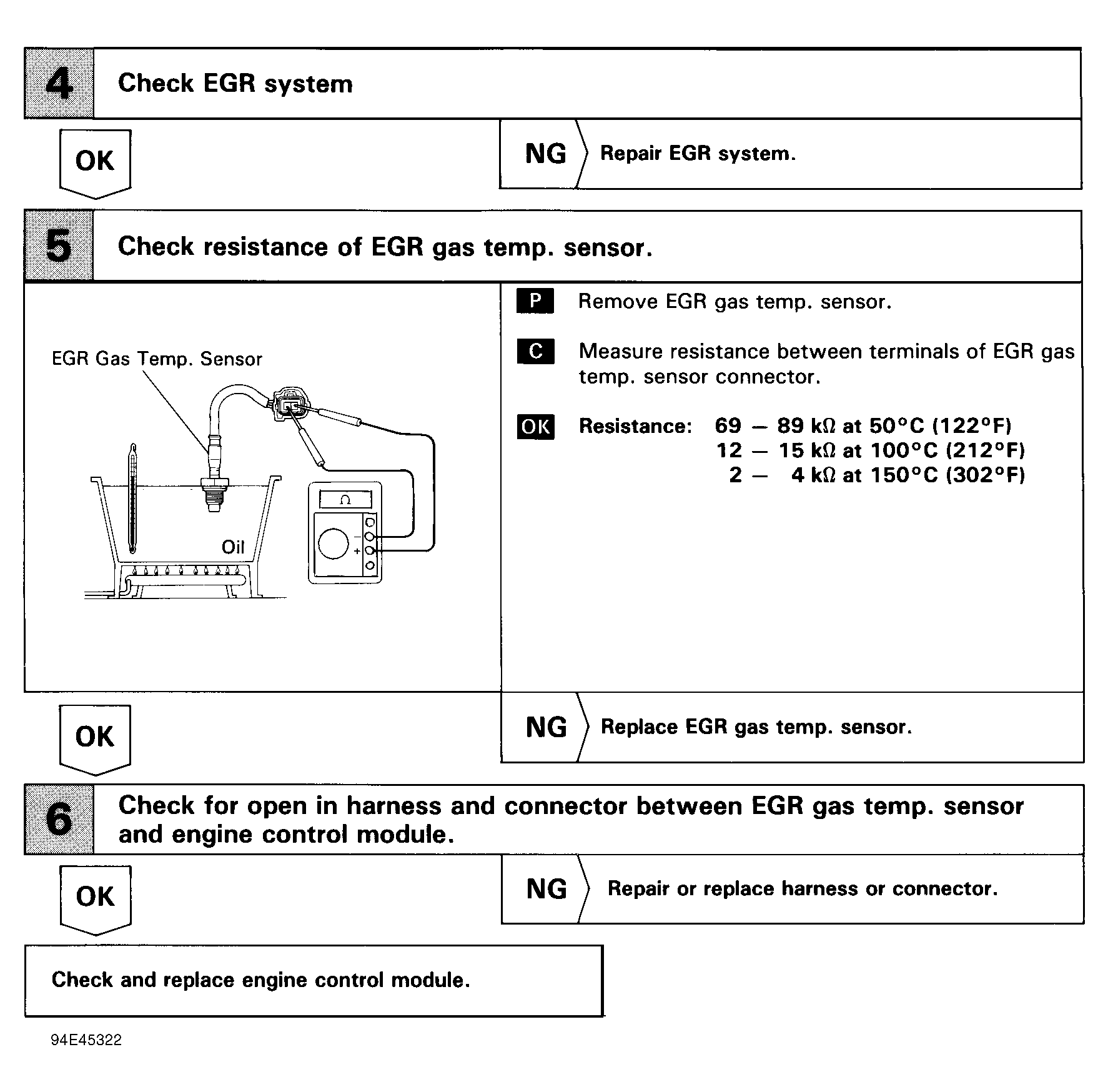

Fig 2: Code 71 Flow Chart - 2 Of 2 (SC300) EGR System Malfunction
G94E45322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

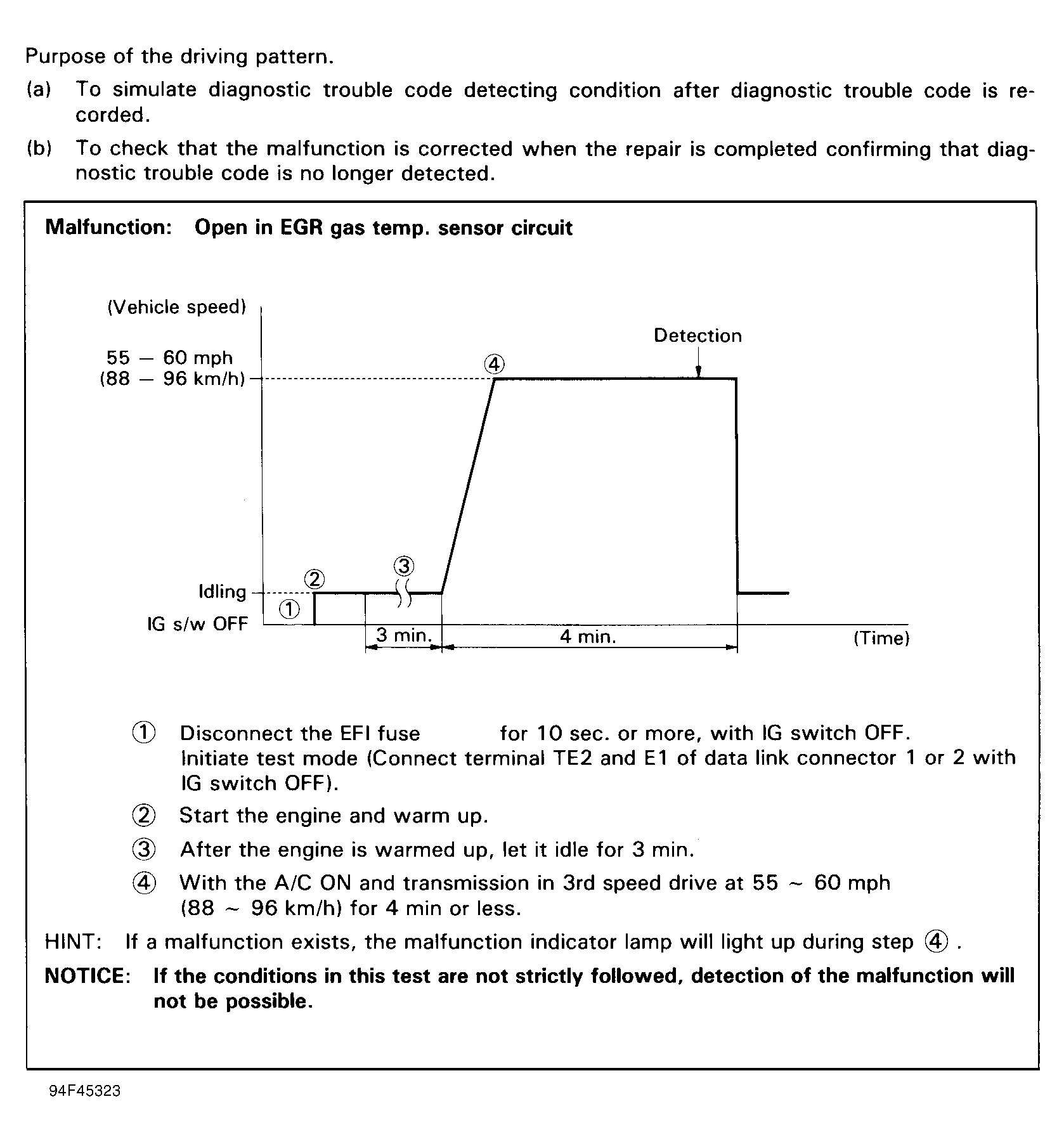

Fig 3: Code 71 Diag. Trouble Code Det. Drvng. Pattern Test (SC300) EGR System Malfunction
G94F45323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
