System Specifications

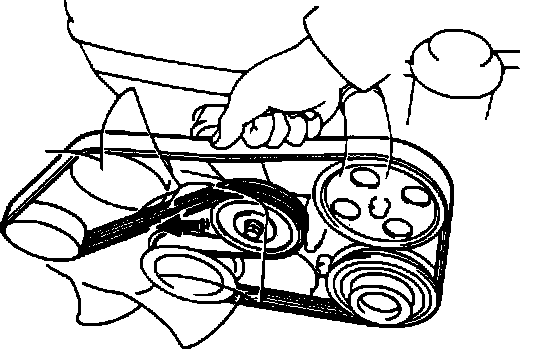

Fig. 41 Serpentine Drive Belt Routing:

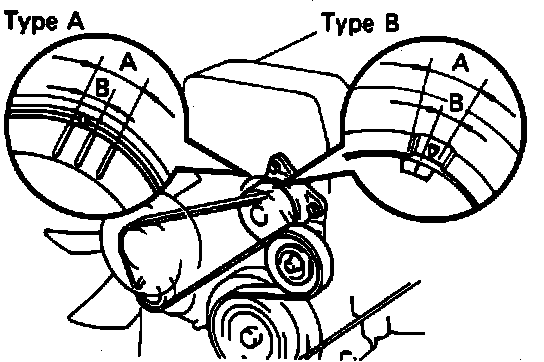

Fig. 42 Serpentine Drive Belt Tensioner:

Refer to Fig. 41 for belt routing diagram. Ensure proper belt tension by checking that belt rides within the A area of the belt tensioner, Fig. 42. If belt does fall within the A area, replace belt. The new belt should ride within the B area.
