Power Seat Switch Test (Passenger's Side)

Disconnect switch connector. Check for continuity between specified terminals of switch connector, with switch in specified position. See appropriate POWER SEAT SWITCH TEST table. See Fig 2. If there is no continuity, replace switch. If there is continuity, switch is okay.

POWER SEAT SWITCH TEST (PASSENGER'S SIDE)

Switch Position

⁽¹⁾ Terminals No.

Slide

Forward

1 & 3; 2 & 4

Off

2 & 3; 2 & 4

Backward

1 & 4; 2 & 3

Recline

Forward

Off

2 & 5; 2 & 6

Backward

(2 y) - Information is not available from manufacturer.

⁽¹⁾	See Fig 2.

Fig 1: Seat Switch Connector Terminal ID (Driver's Side)

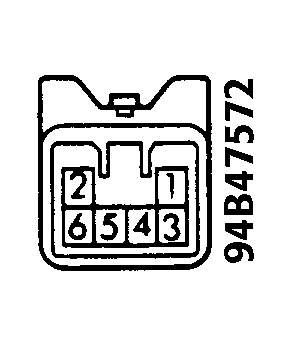

Fig 2: Seat Switch Connector Terminal ID (Passenger's Side)
