ABS Solenoid Relay

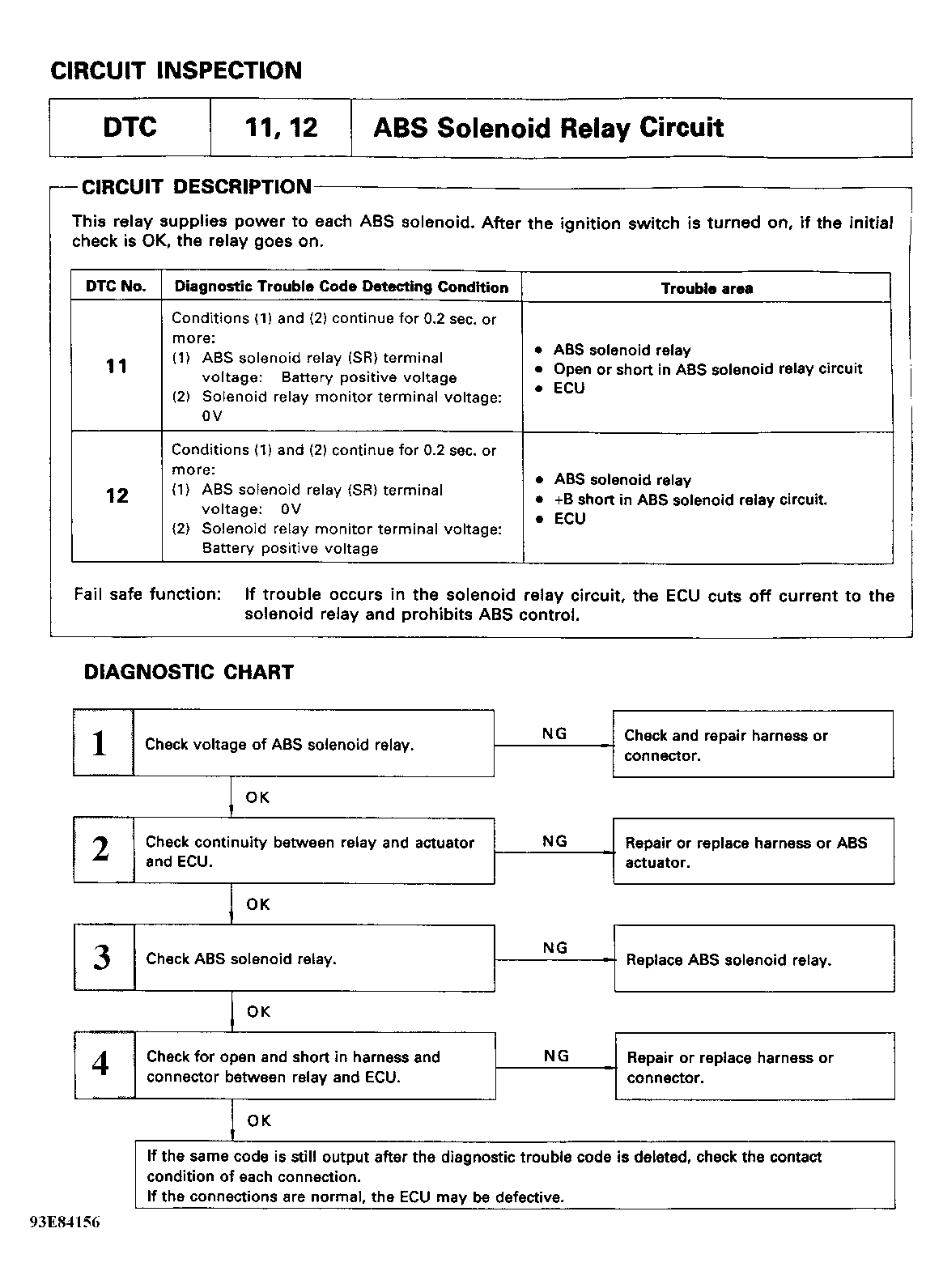

  1. Remove actuator solenoid relay from ABS relay block (near brake master cylinder). Check continuity between indicated terminals of ABS solenoid relay. See Figure. If readings are not as specified, replace ABS solenoid relay.
  2. Apply battery voltage between ABS solenoid relay terminals No. 4 and 6. See Figure. Continuity should not be present between ABS solenoid relay terminals No. 2 and 3. Continuity should be present between ABS solenoid relay terminals No. 1 and 3. See Figure. If readings are not as specified, replace ABS solenoid relay.
