Tc TERMINAL CIRCUIT

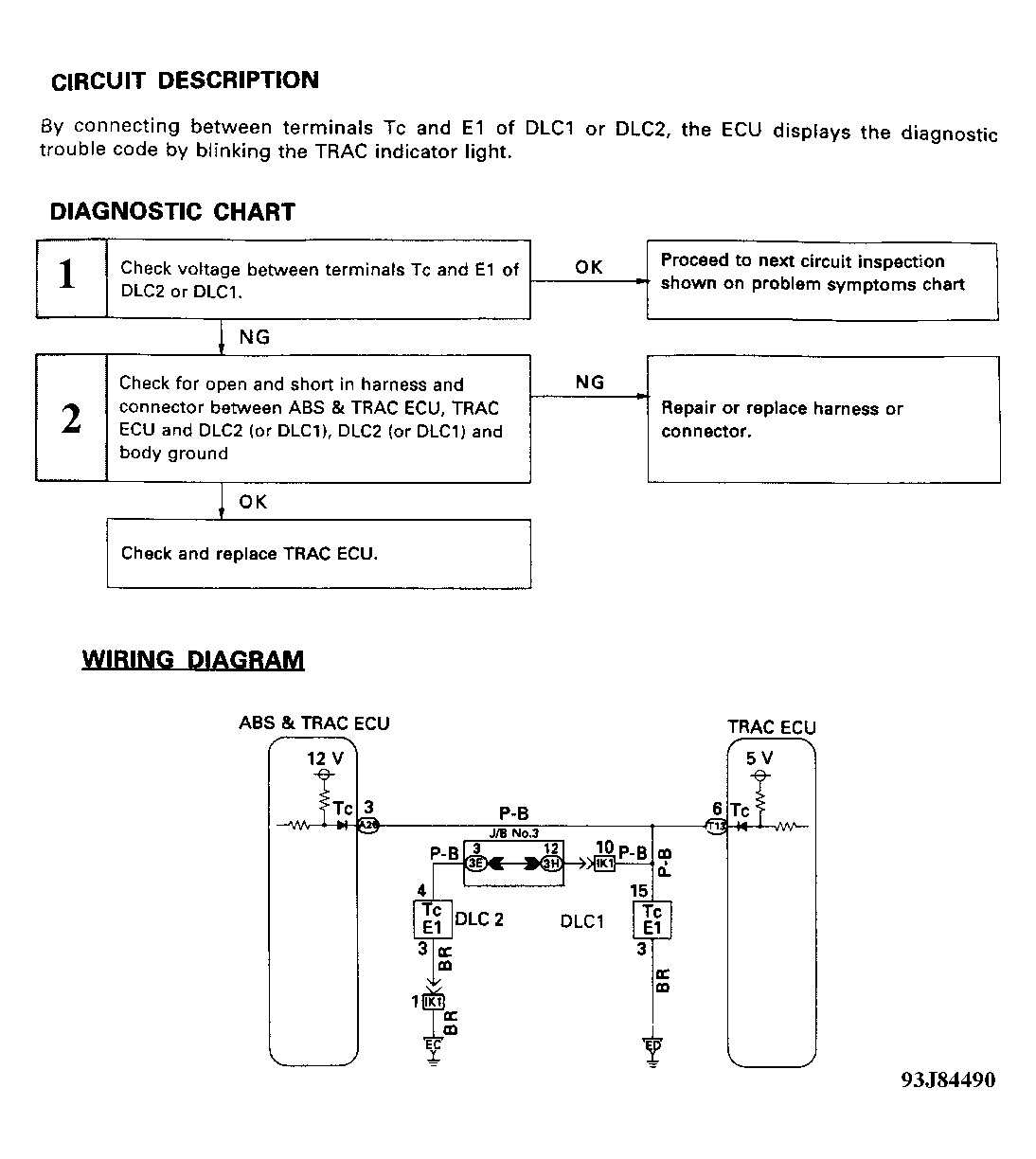

Fig 1: Tc Terminal Circuit (1 Of 2)
G93J84490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

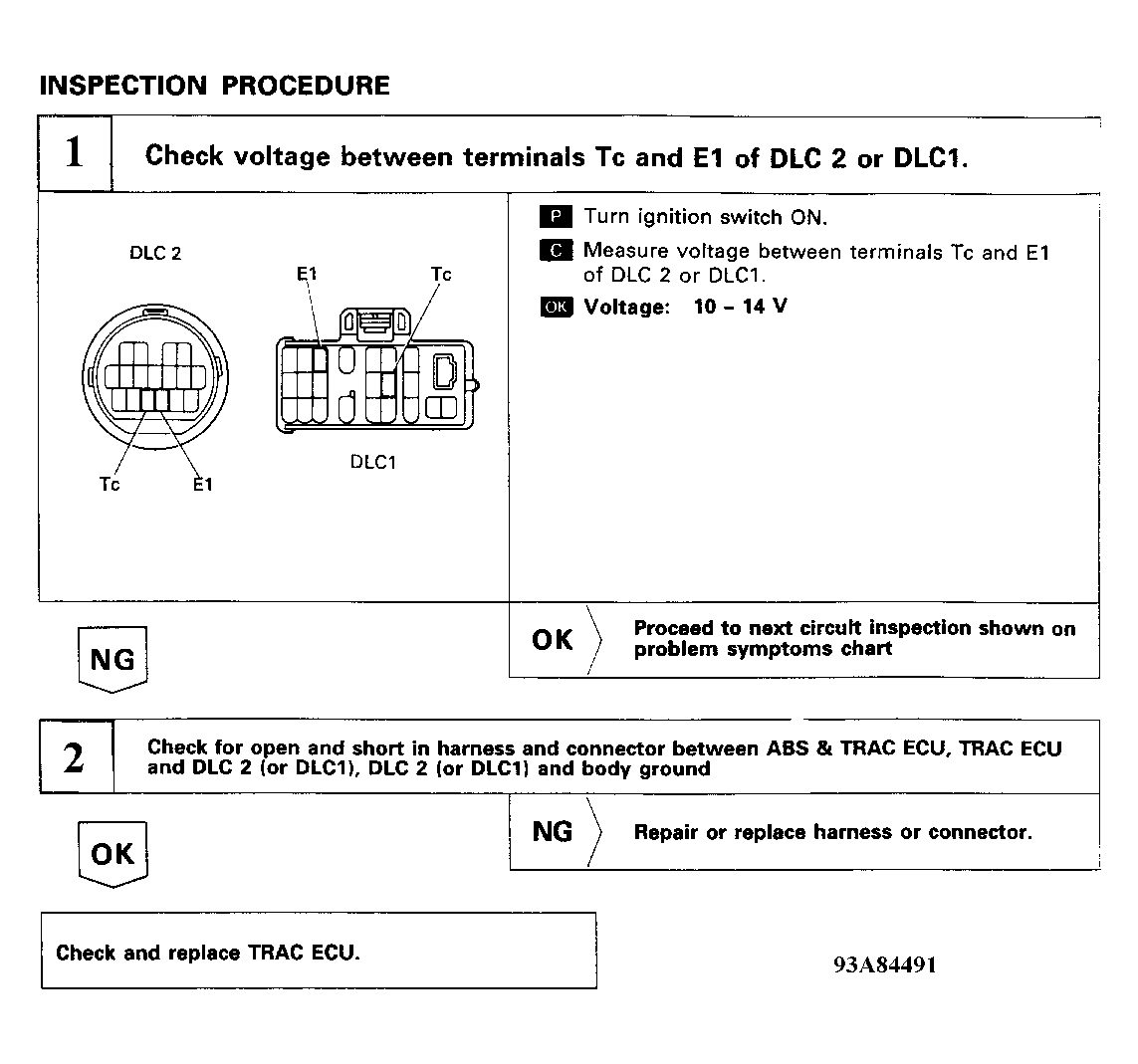

Fig 2: Tc Terminal Circuit (2 Of 2)
G93A84491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
