Instrument Cluster Circuit Testing

NOTE: Remove instrument cluster. To identify connectors, see Fig 1. Check voltage, resistance and continuity at specified terminals of instrument cluster connector (harness side). See Fig 2 & Figure . Unless specified otherwise, use a DVOM with a minimum input impedance of 10-megohms during testing.

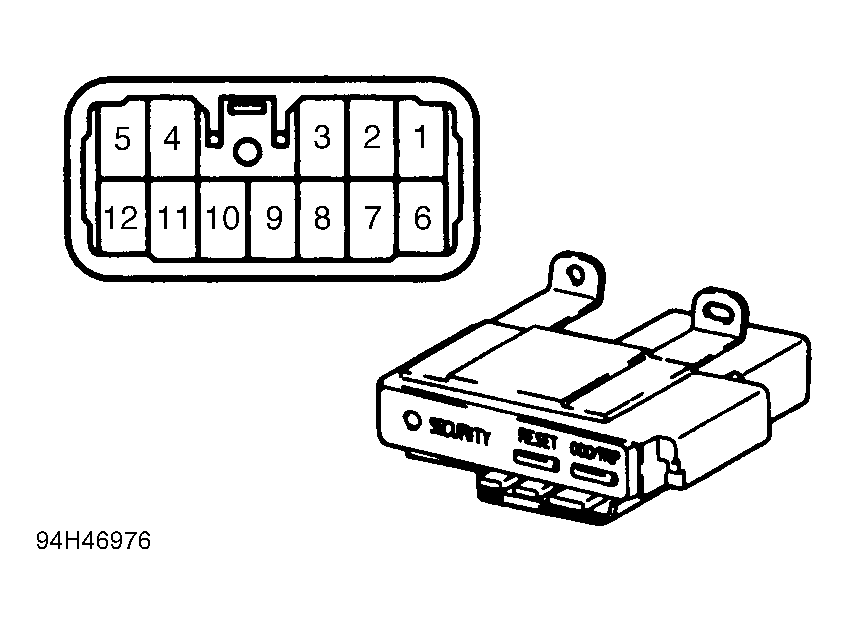

Fig 1: Harness Connector & Gauge Terminal ID On Back Of Instrument Cluster
G94F46966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Testing Instrument Cluster Circuits (1 Of 2)
G94H46968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

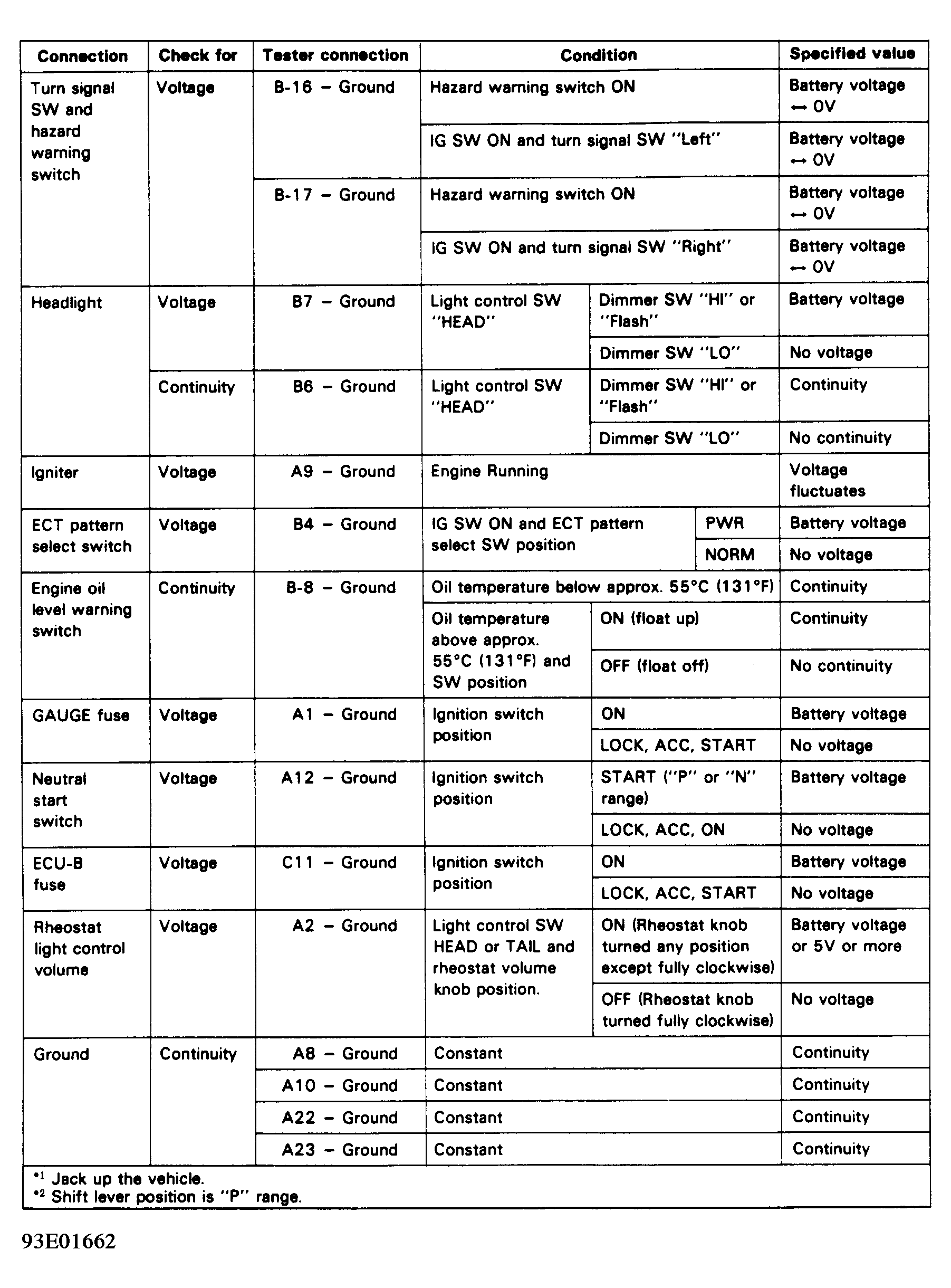

Fig 3: Testing Instrument Cluster Circuits (2 Of 2)
G93E01662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
