Code 14 - Ignition Signal (IGNITOR No. 1)

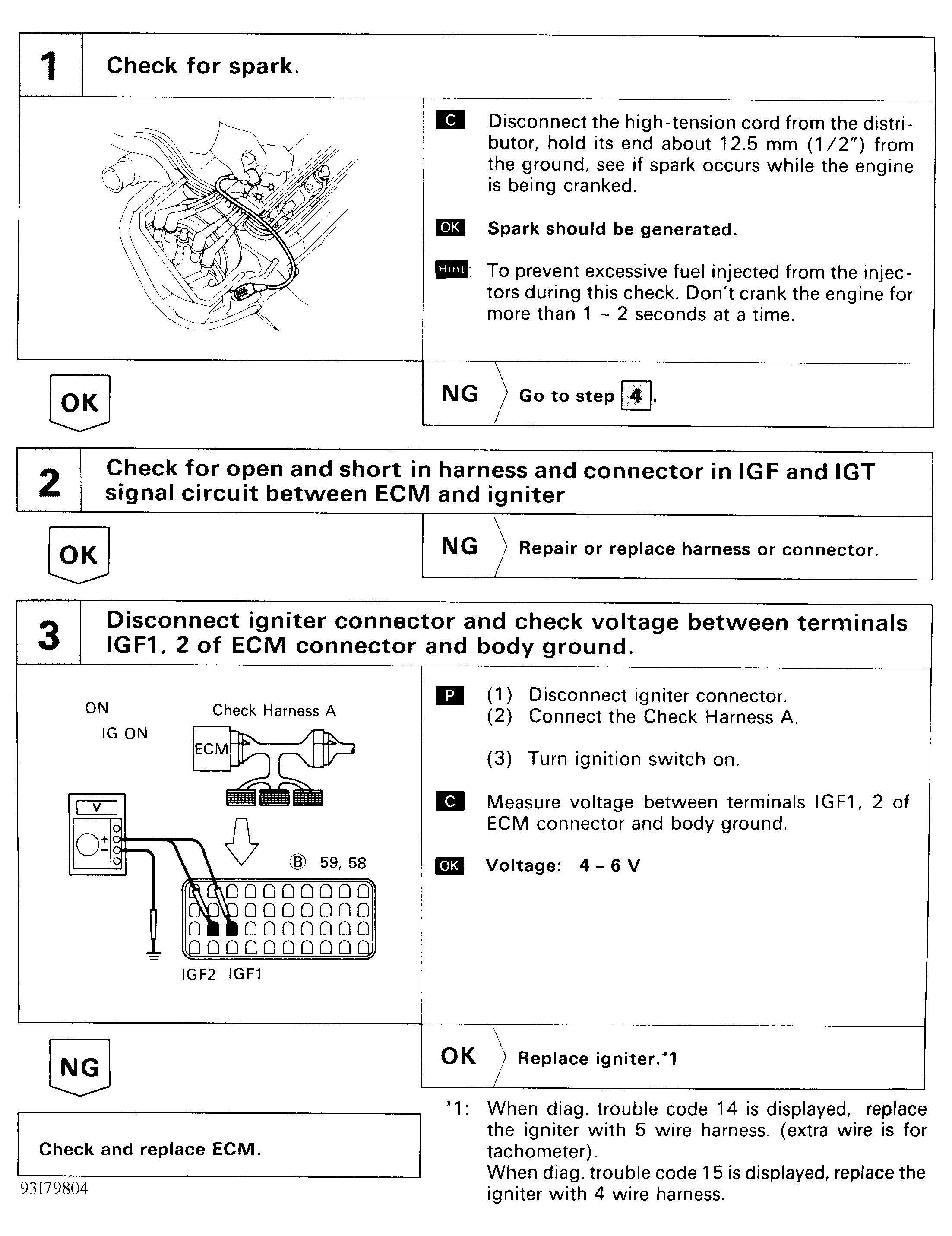

Fig 1: Code 14 Flow Chart - 1 Of 5 (SC400) Ignition Signal
G93I79804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

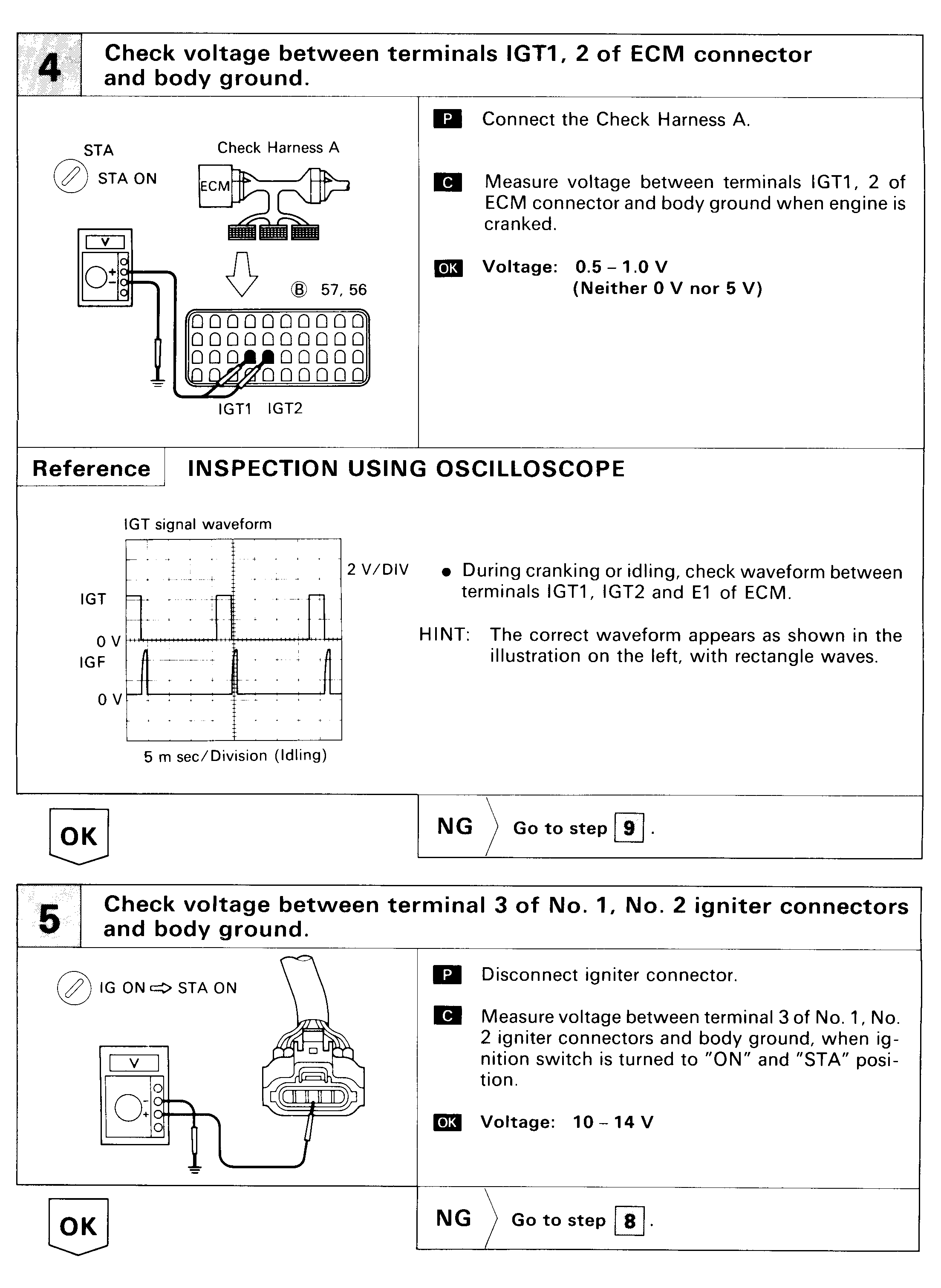

Fig 2: Code 14 Flow Chart - 2 Of 5 (SC400) Ignition Signal
G93J79805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

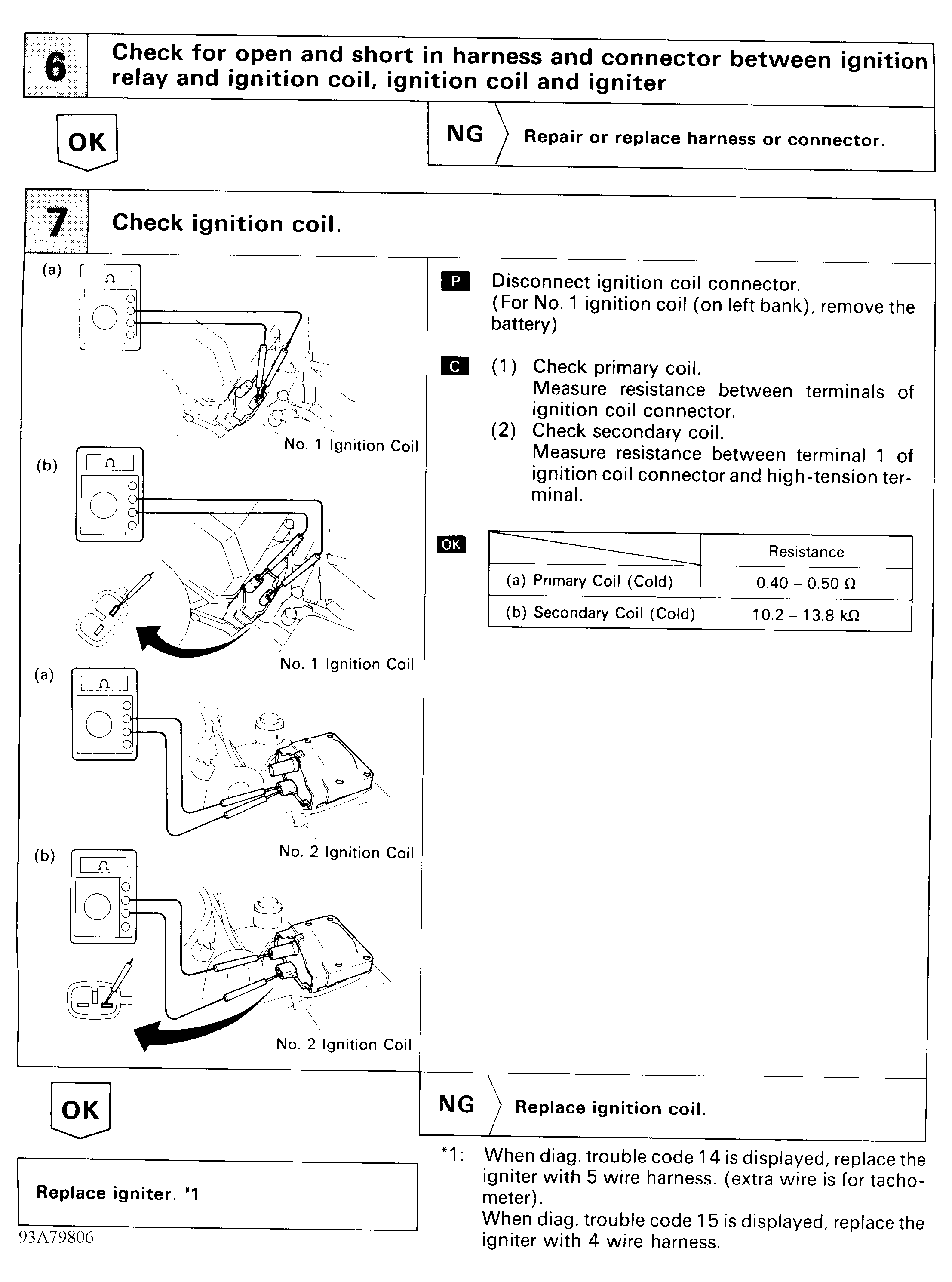

Fig 3: Code 14 Flow Chart - 3 Of 5 (SC400) Ignition Signal
G93A79806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

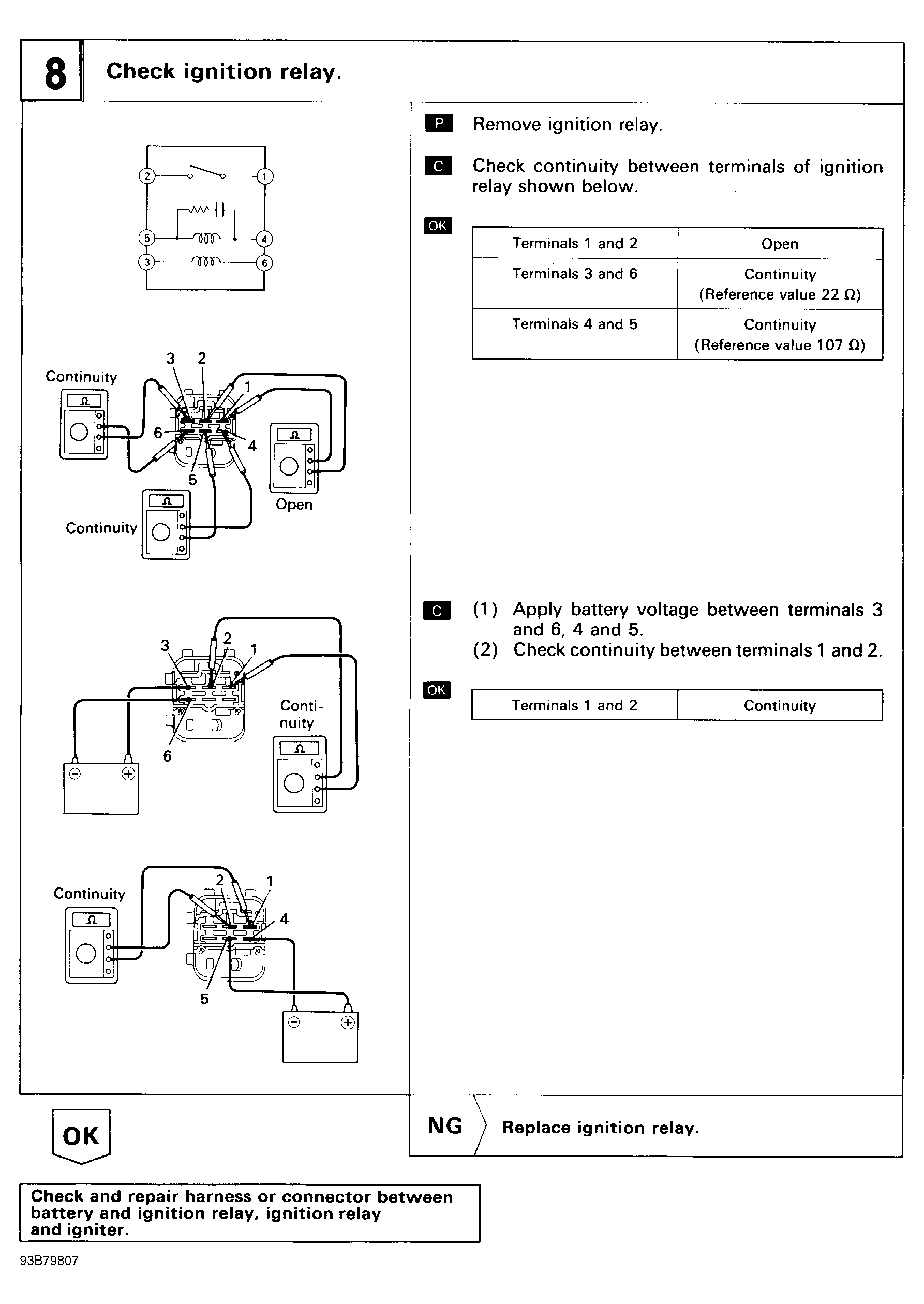

Fig 4: Code 14 Flow Chart - 4 Of 5 (SC400) Ignition Signal
G93B79807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

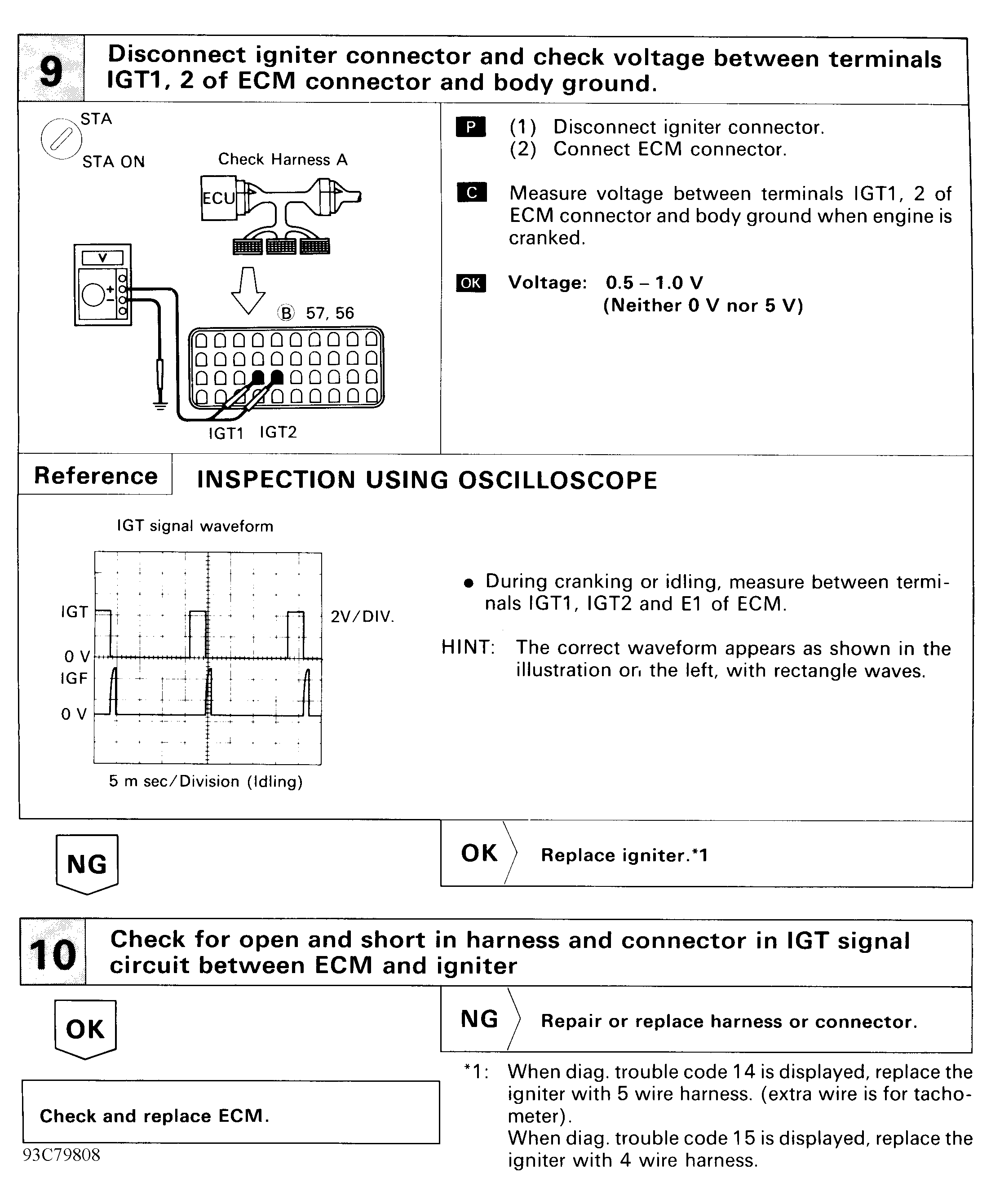

Fig 5: Code 14 Flow Chart - 5 Of 5 (SC400) Ignition Signal
G93C79808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
