Code 27 - Sub-Oxygen Sensor Circuit (Left Bank)

NOTE: After repairs are completed, perform TROUBLE CODE DETECTION DRIVING PATTERN TEST at end of testing for this trouble code.

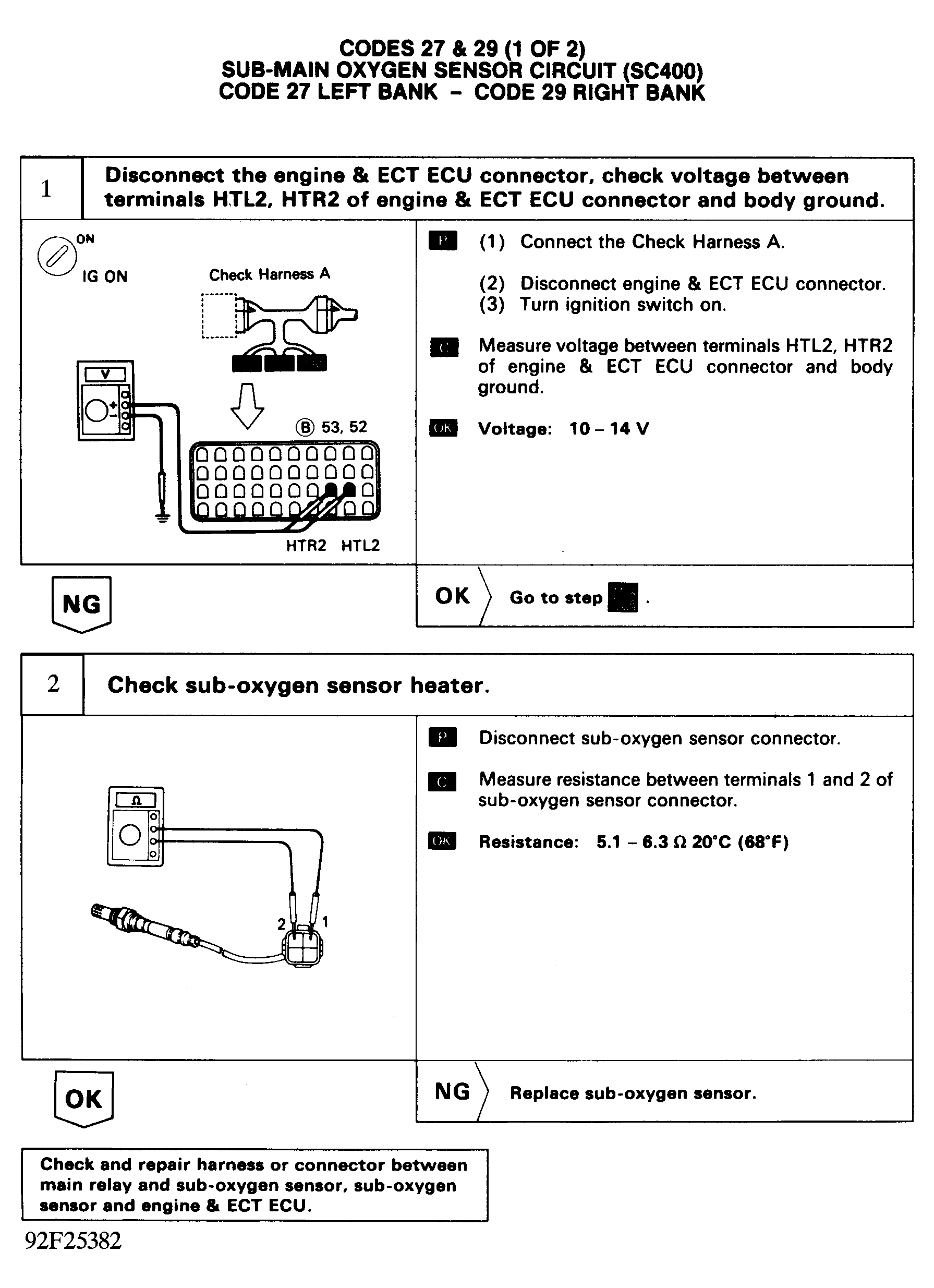

Fig 1: Code 27 Flow Chart - 1 Of 2 (SC400) Sub-Oxygen Sensor Circuit (Left Bank)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

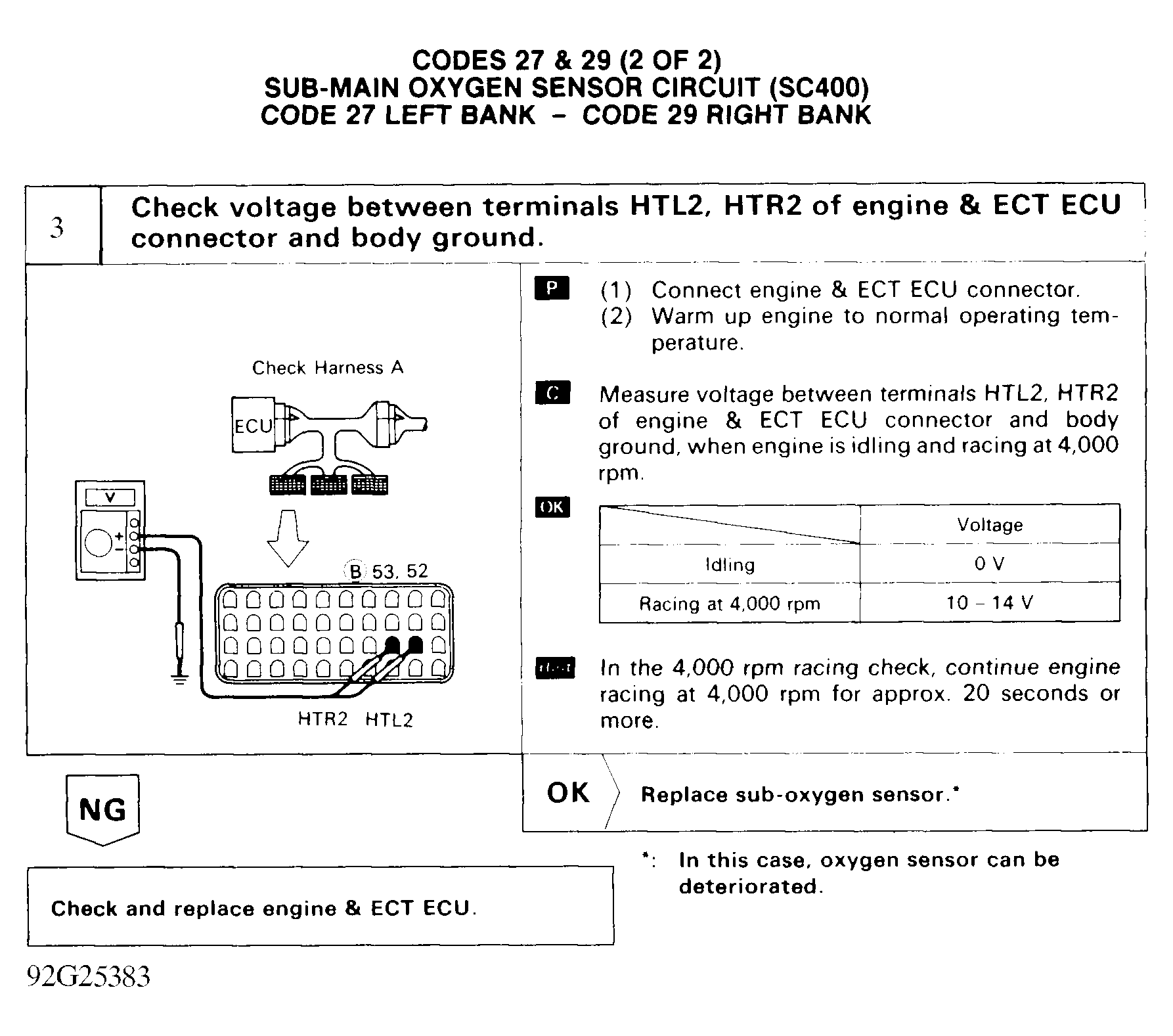

Fig 2: Code 27 Flow Chart - 2 Of 2 (SC400) Sub-Oxygen Sensor Circuit (Left Bank)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

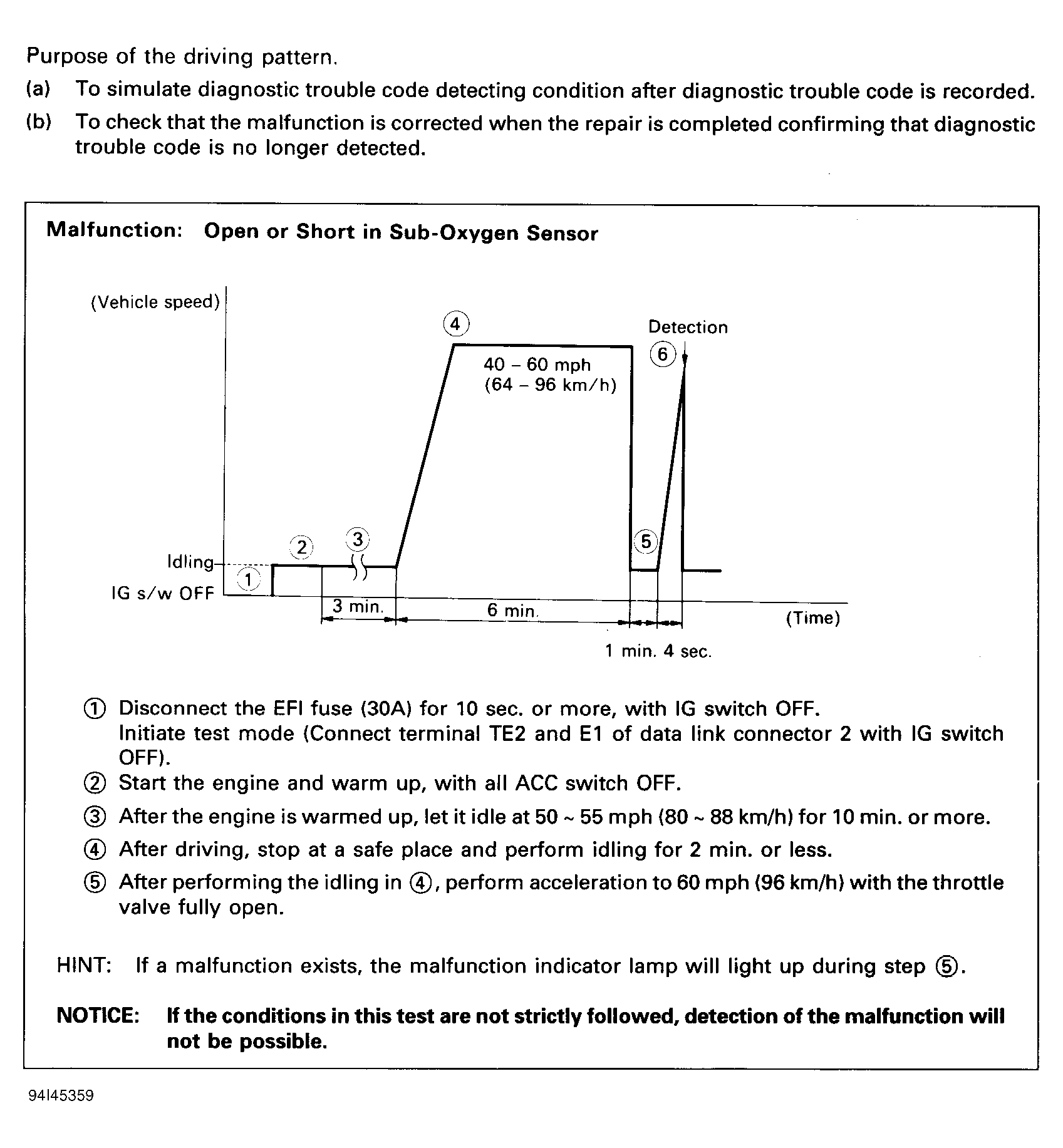

Fig 3: Code 27 Trouble Code Detection Driving Pattern Test (SC400) Sub-Oxygen Sensor Circuit (Left Bank)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
