1994 LEXUS Special Service Tools (SS94-001)

Publication date: 1994-04-15
Reference number: SS94-001

1994 LEXUS SPECIAL SERVICE TOOLS

1994 LEXUS SPECIAL SERVICE TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS94-001, Date of Issue:  April 15, 1994
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

1994 LEXUS SPECIAL SERVICE TOOLS

Model(s): 1990-94 Lexus Vehicles

Reference: Special Service Tools

Bulletin No.: SS94-001

Date: April 15, 1994

SERVICE INFORMATION

The following TSIB contains information regarding the 1994 Special Service Tools (SST's). Both the Essential and Available SST's are listed by part number, tool name, model application, illustration / usage (for Essential SST's only) and appropriate reference in repair manual. All Special Service Tools (SST's) may be ordered by contacting OTC at 1-800-933-8335.

SPECIAL SERVICE TOOL

ESSENTIAL SST'S

Part Number Tool Name Fig. #
LEX220036 Lexus Diagnostic Toolset N/A
01001270 Diagnostic Tester Kit 1
01001293 Noise-Vibration-Harshness(NVH) Analyzer Kit 3
01001295 Vehicle Break-out Box (VBOB) Kit 2
09201- 01055-01 Valve Guide Bushing Remover & Replacer (5.5mm) 4
09552- 10010-01 Ball Detent Handle 4

TOYOTA DIAGNOSTIC TOOLSET

This Toolset includes:

  • Diagnostic Tester Kit
  • Vehicle Breakout Box (VBOB) Kit
  • Noise-Vibration-Harshness (NVH)/ Accessory Kit
  • Part number: LEX220036

DIAGNOSTIC TESTER KIT

Part Number: 01001270

Application: 1990-94 Vehicles

Affected Area: Engine, Brake, Body Electrical

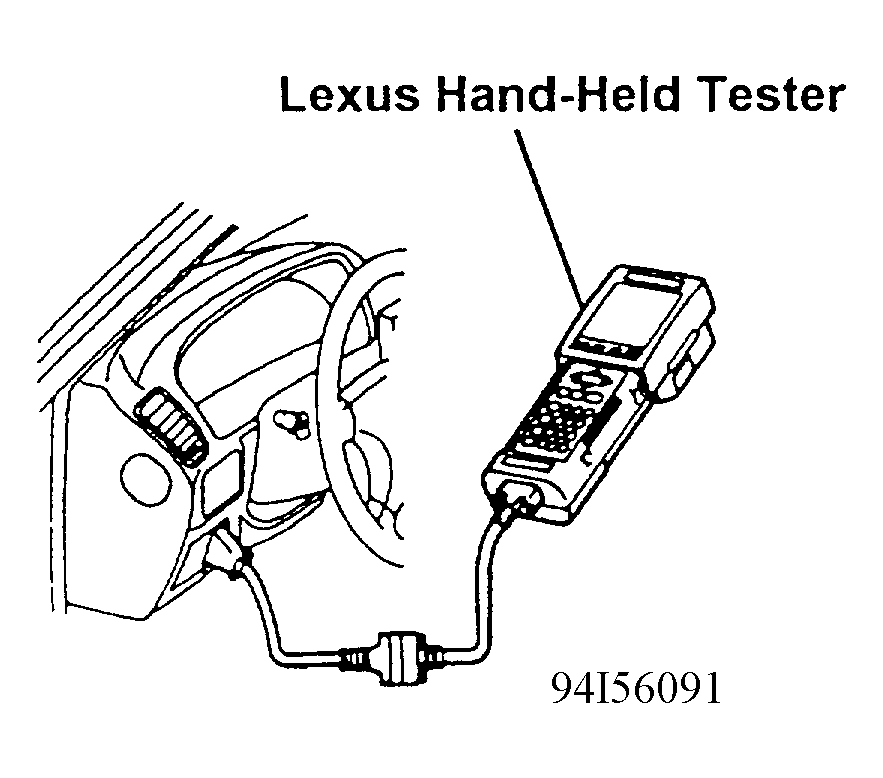

Fig 1: Diagnostic Tester Kit
G94I56091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOISE-VIBRATION-HARSHNESS (NVH) ANALYZER KIT

Part Number: 01001293

Application: 1990-94 Vehicles

Affected Area: N/A

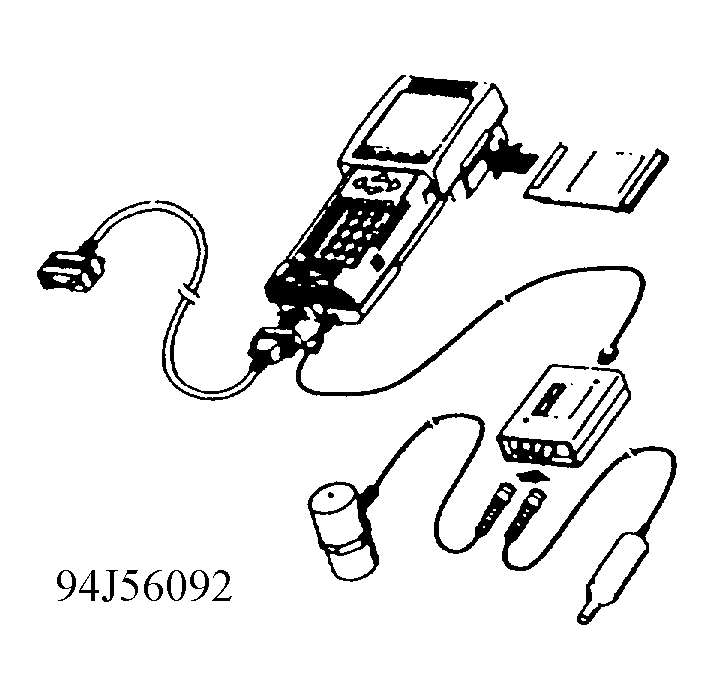

Fig 2: Noise-Vibration-Harshness (NVH) Analyzer Kit
G94J56092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE BREAK-OUT BOX (VBOB) KIT

Part Number: 01001295

Application: 1990-94 Vehicles

Affected Area: Brake, Body Electrical

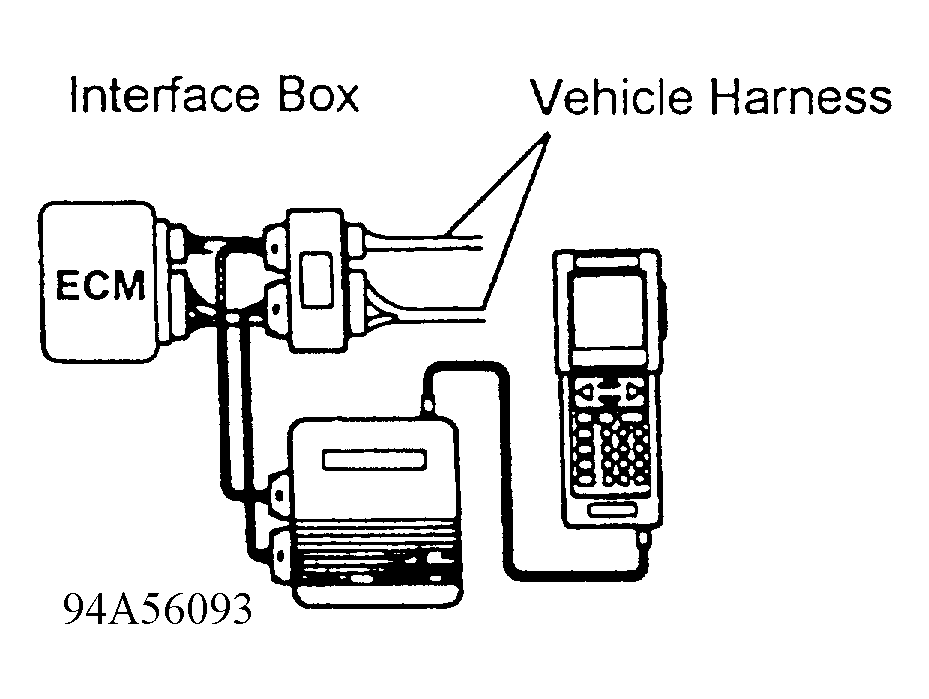

Fig 3: Vehicle Break-Out Box (VBOB) Kit
G94A56093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VALVE GUIDE BUSHING R & R TOOL & BALL DETENT HANDLE

Part Number: 09201-01055-01 (Valve Guide Bushing R & R Tool)

09552-10010-01 (Ball Detent Handle)

Part of 00002-53464B-02

Application: 1994 ES 300

Affected Area: Engine

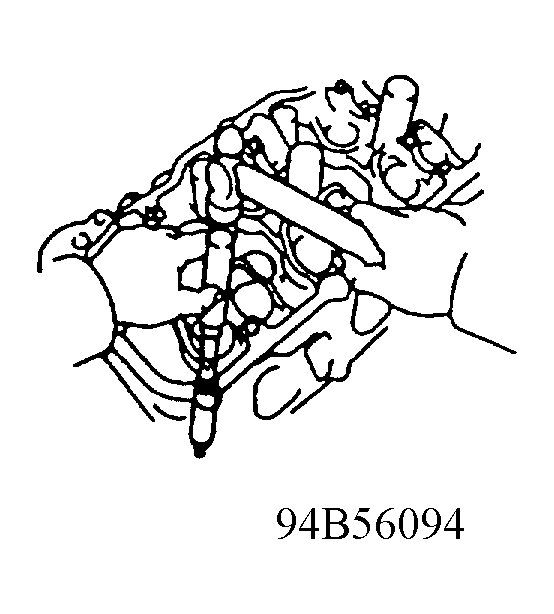

Fig 4: Valve Guide Bushing R & R Tool & Ball Detent Handle
G94B56094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AVAILABLE SST'S

Tool Number Tool Name Application R/M Section
09223-00010 Cover & Seal Replacer ES 300 Engine
09223-63010 Crankshaft Rear Oil Seal Replacer ES 300 Suspension
09229-55010 Oil Cooler Relief Valve Wrench ES 300 Suspension
09502-12010 Differential Bearing Replacer ES 300 Power Train
09502-24010 Bearing Replacer ES 300 Suspension
09812-00020 Door Hinge Set Bolt Wrench ES 300 Body
18190-A (1) R134A Service Station Low Side Coupler All Models A/C
18191-A (1) R134A Service Station High Side Coupler All Models A/C
(1) = New Compact Size
