Oscilloscope Patterns and Waveforms

OSCILLOSCOPE PATTERN

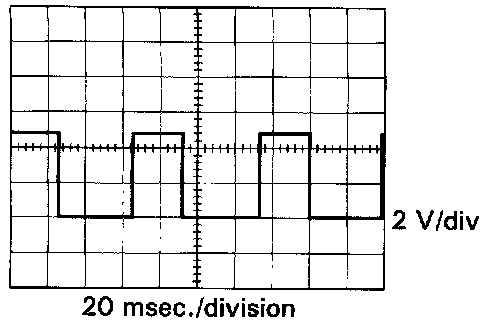

- Waveform between terminals SP1 and E1 when vehicle speed is approx. 20km/h (12mph).
- The greater the vehicle speed, the greater the number of SP1 signals produced.
