Firing Order & Cylinder Numbering

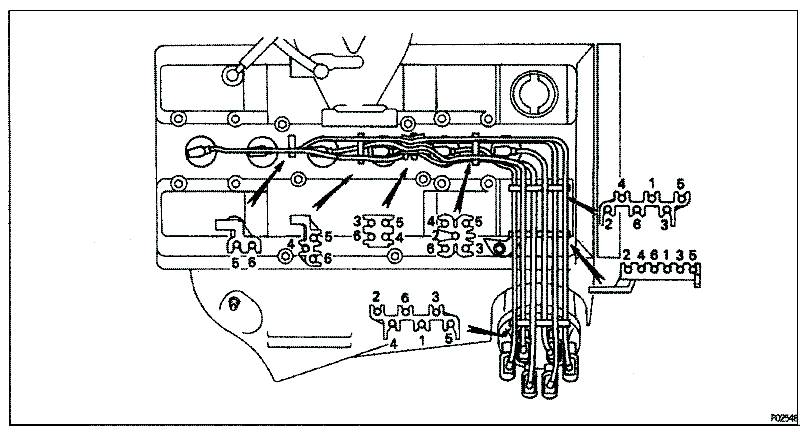

Fig 1: Ignition Wire Routing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FIRING ORDER

Application	Firing Order
ES300	1-2-3-4-5-6

CYLINDER NUMBERING

Application

⁽¹⁾ Cylinder Number

Right Bank ⁽²⁾

1-3-5

Left Bank ⁽²⁾

2-4-6

⁽¹⁾	Starting at cylinder closest to timing belt-end of engine.

⁽²⁾	As viewed from flywheel-end of engine.
