Fuel Rails & Injectors: Installation

Install NEW "O" rings and grommets on injectors. Apply a light coat of oil to fuel injector "O" rings. Using a twisting motion, push injectors onto fuel rail. Ensure injectors are fully seated.
Put 6 insulators and 4 spacers in position on intake manifold. Place fuel rails and injectors in position on intake manifold. Install mounting bolts, and tighten to specification. See TORQUE SPECIFICATIONS.
To complete installation, reverse removal procedure. Fill cooling system with proper mix of water and coolant. Turn ignition on. Pressurize fuel system and check for leaks. To pressurize fuel system, connect a jumper wire between terminals +B and FP of Data Link Connector (DLC). See Fig 1.

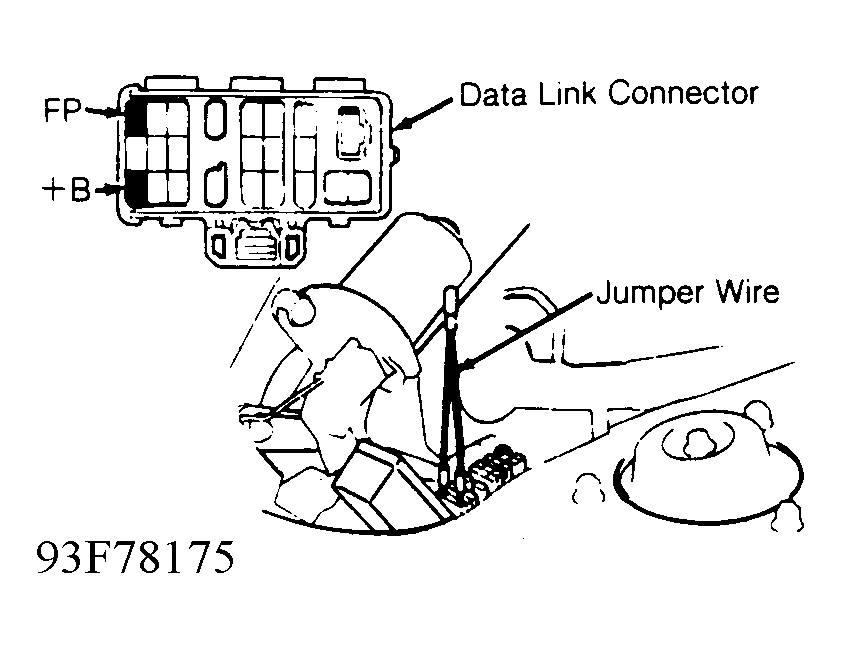

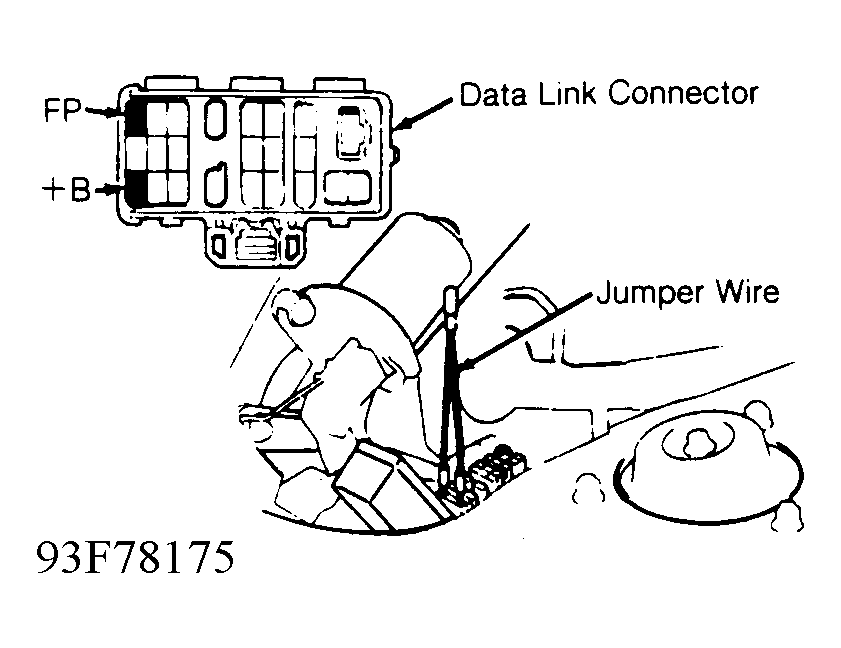

Fig 1: Energizing Fuel Pump
