Component Inspection

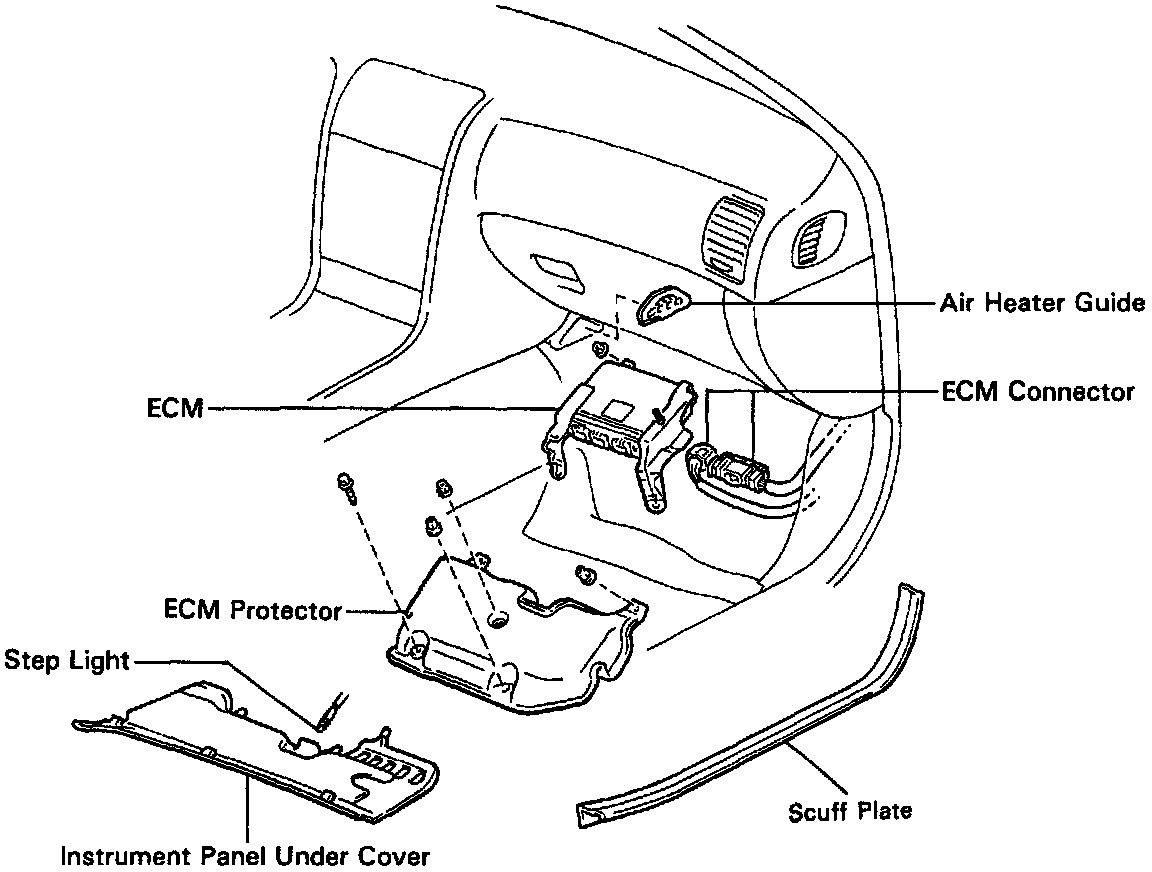

COMPONENTS FOR REMOVAL AND INSTALLATION

ENGINE CONTROL MODULE (ECM) INSPECTION
1. REMOVE ECM.




2. INSPECT ECM.
- For inspection of the ECM refer to "Normal Scan Data Values". Testing and Inspection

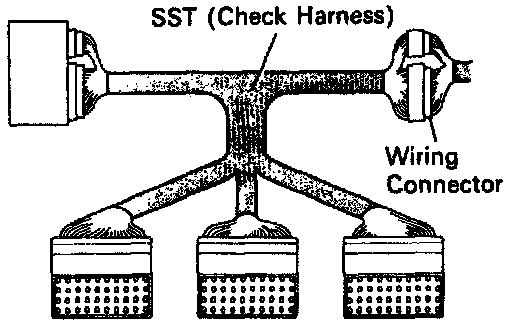

HINT: Use SST 09990-01000.

3. REINSTALL ECM.
