ABS W/ Traction Control (TRAC)

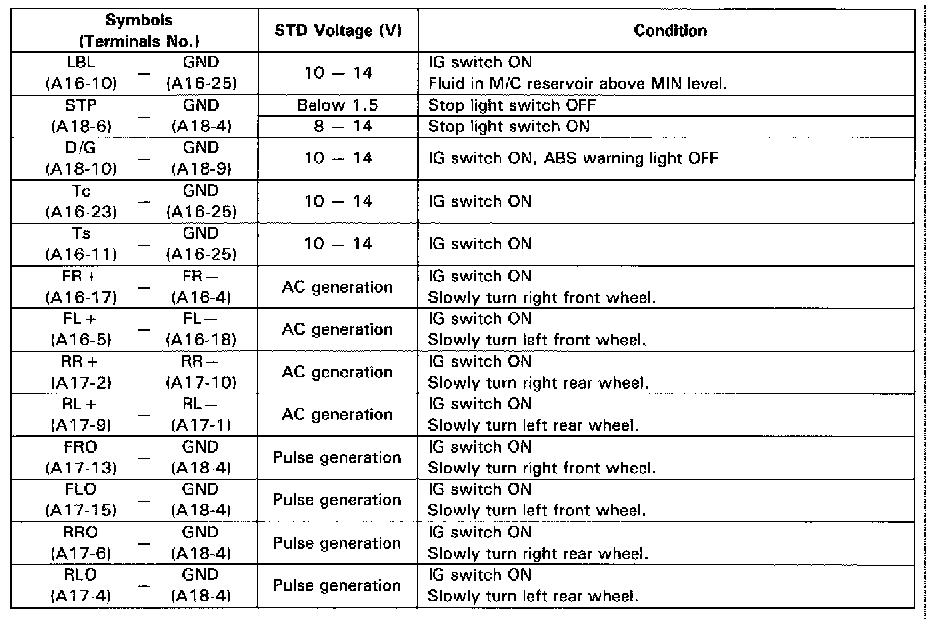

Fig. 25 ABS & TRAC ECU Terminal Values (Part 1 Of 2):

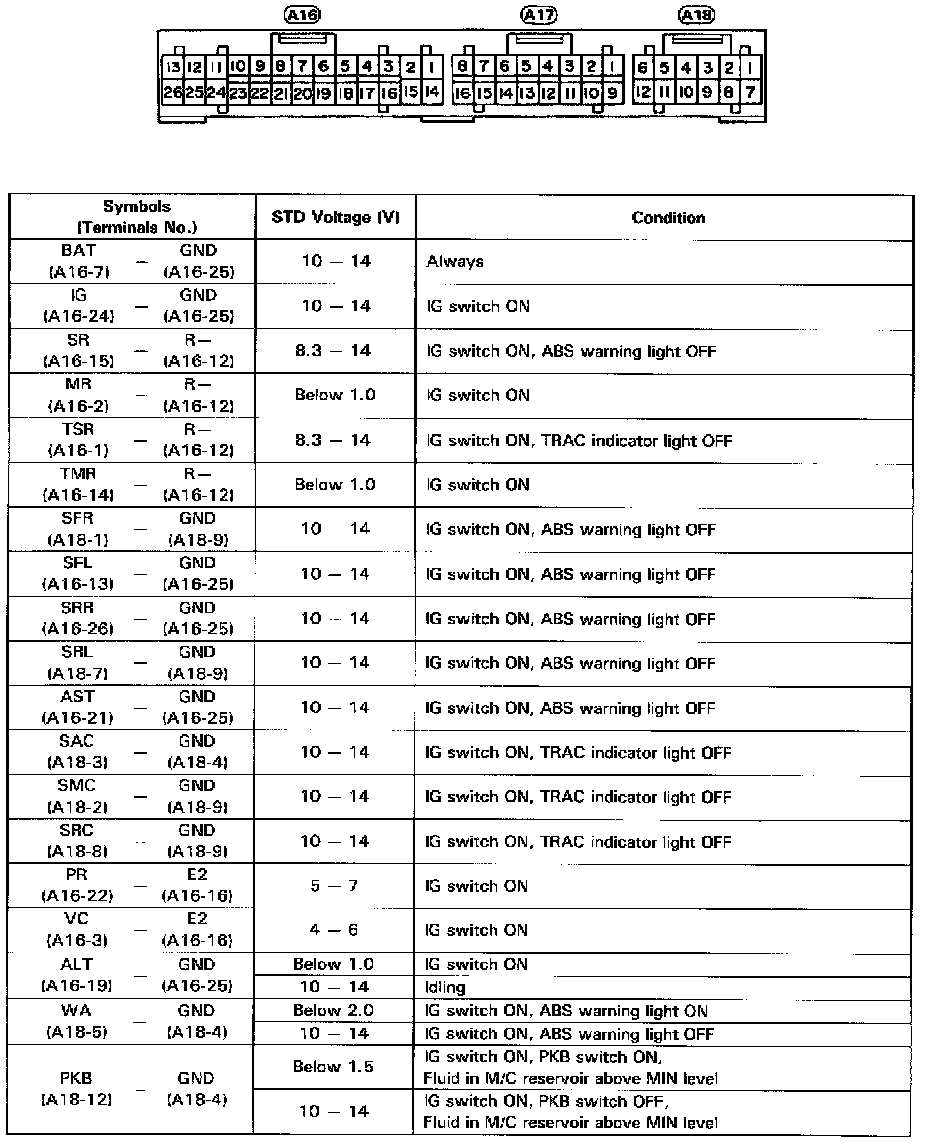

Fig. 25 ABS & TRAC ECU Terminal Values (Part 2 Of 2):
