System Specifications

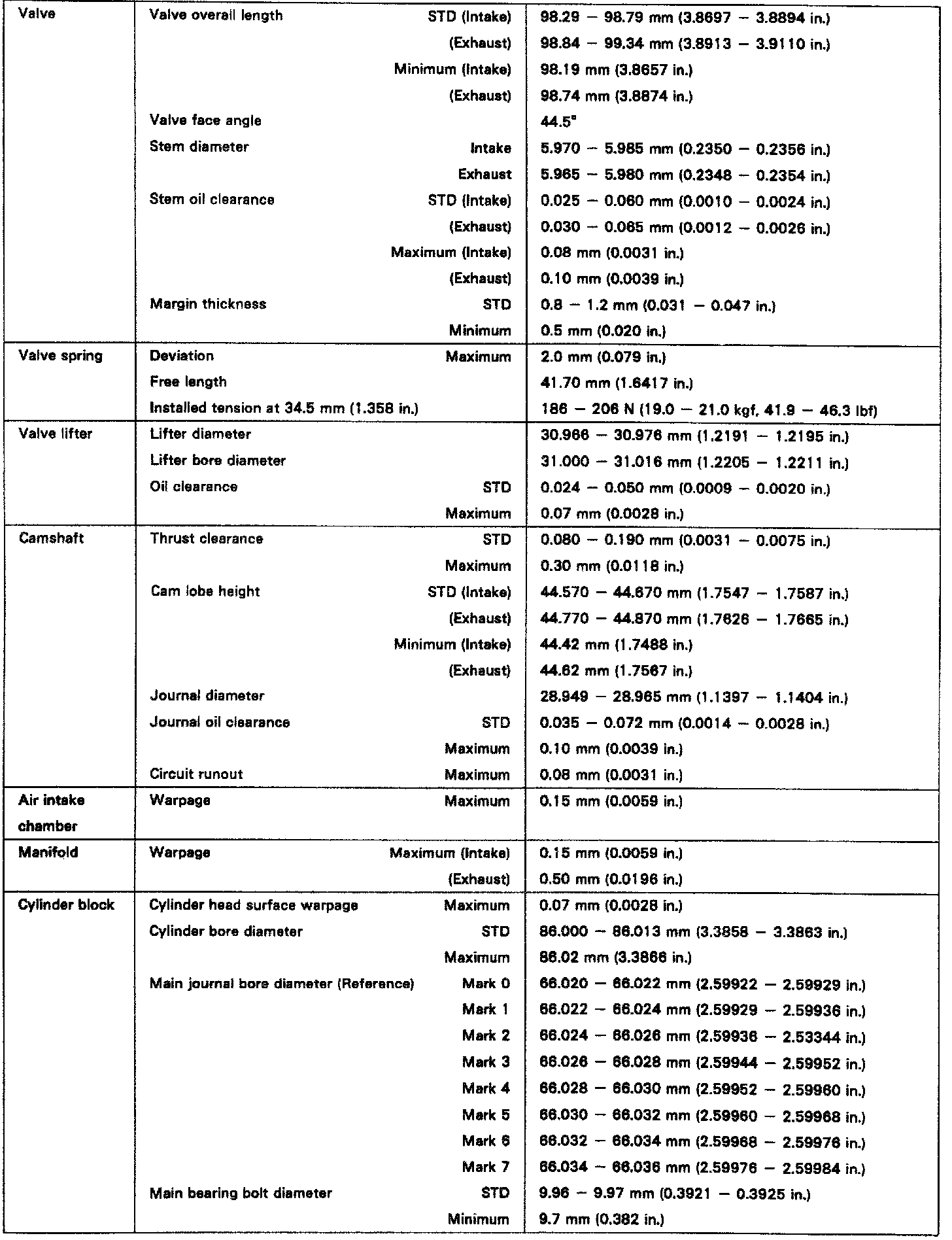

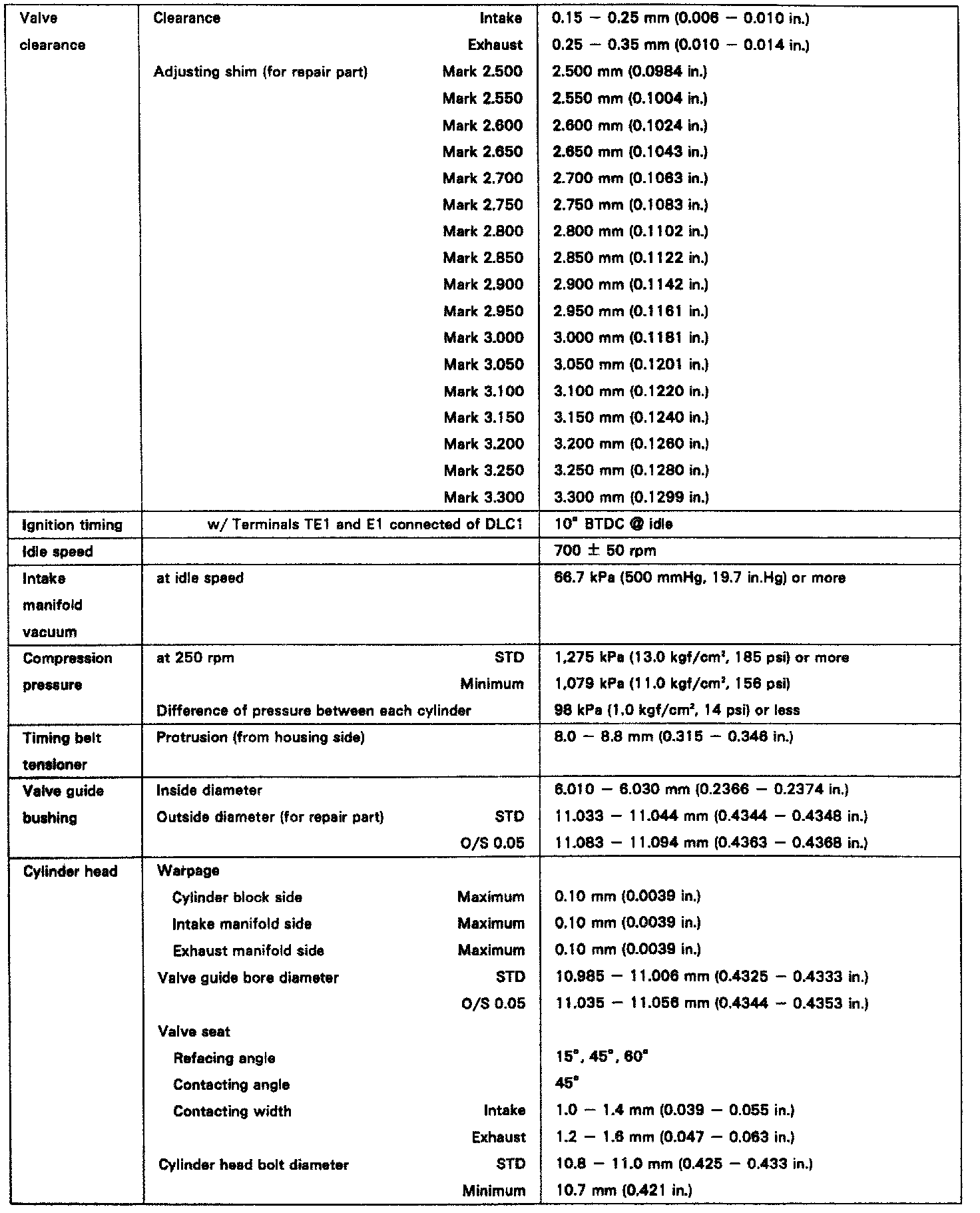

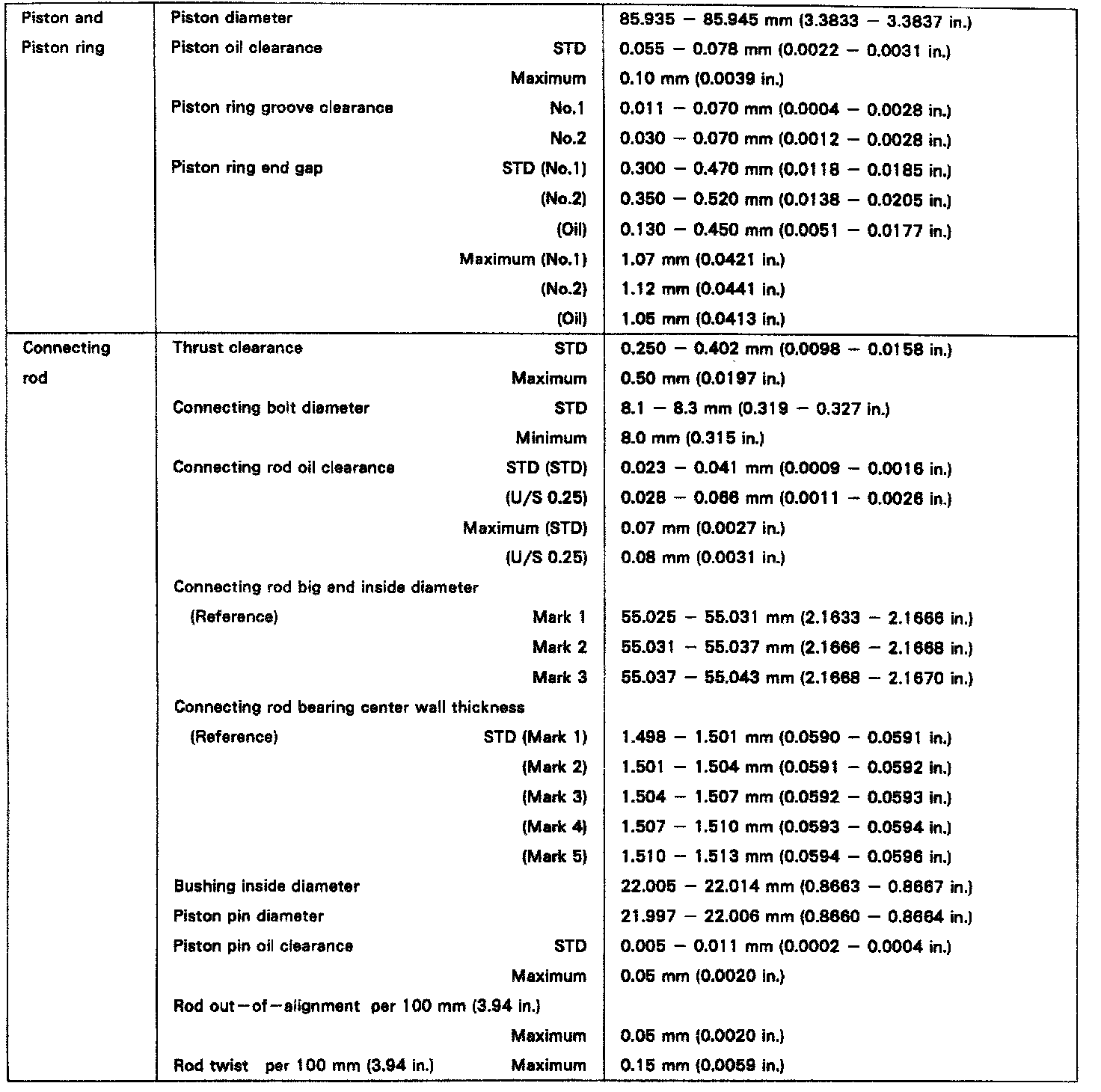

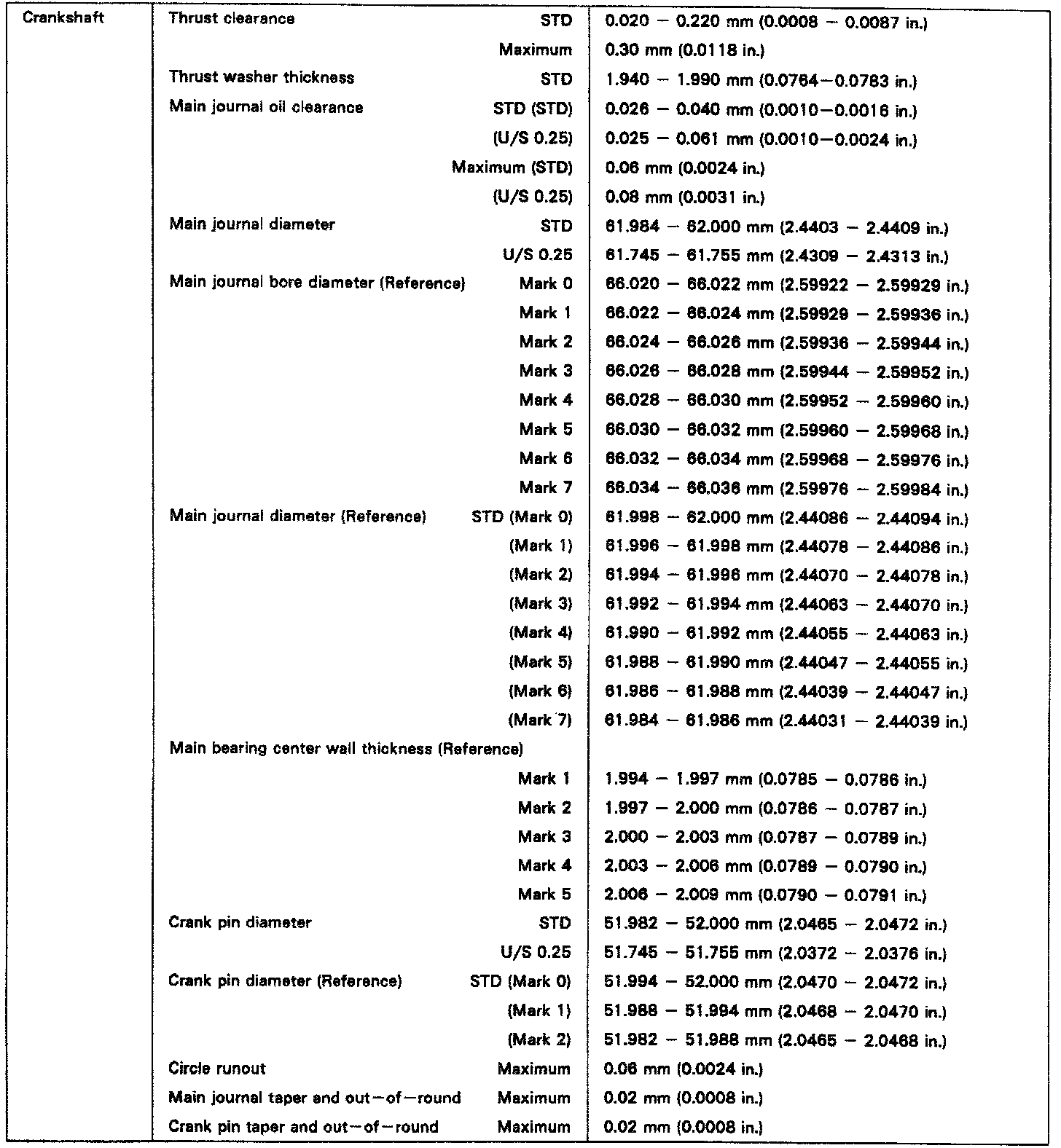

ENGINE SPECIFICATIONS

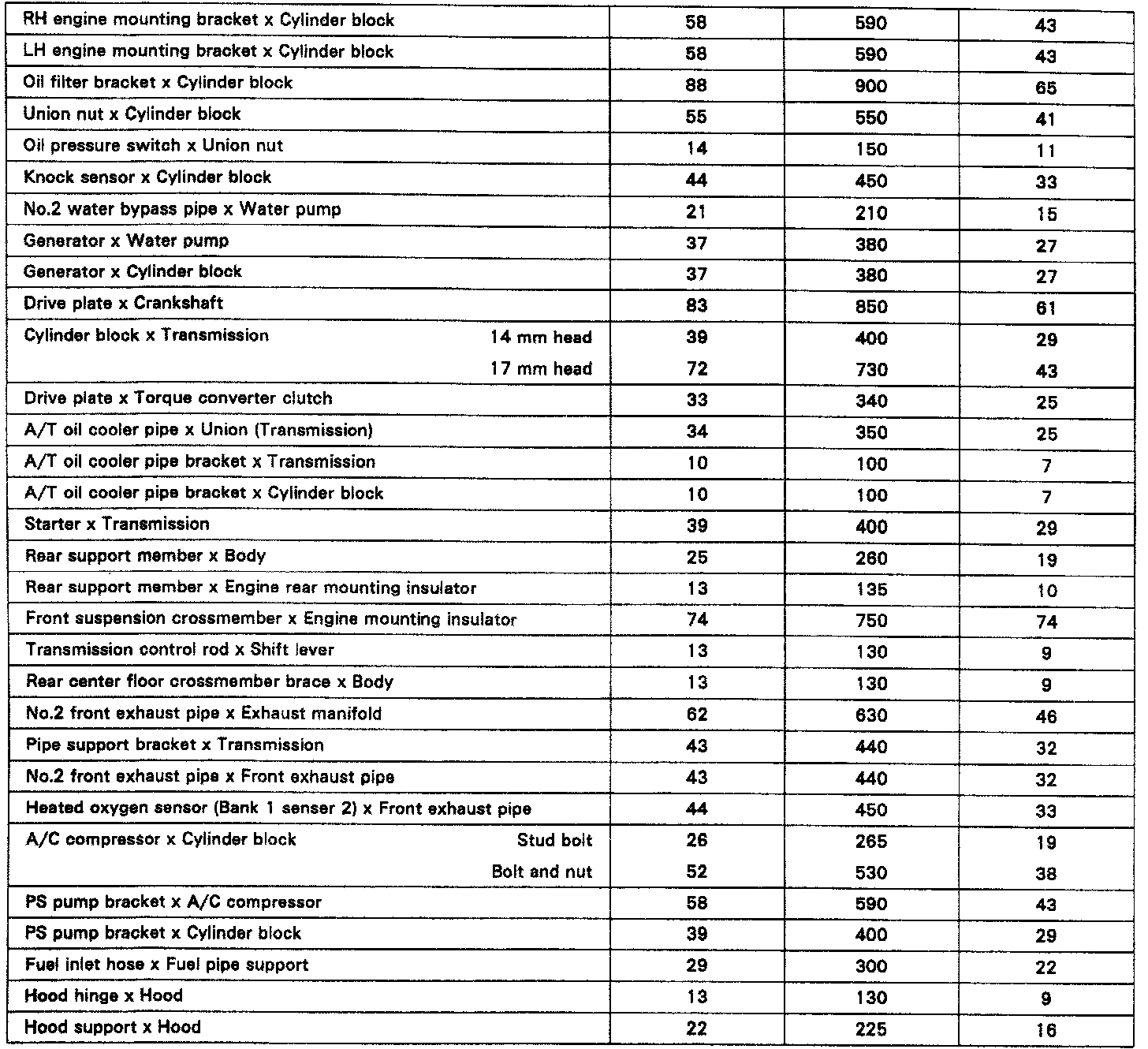

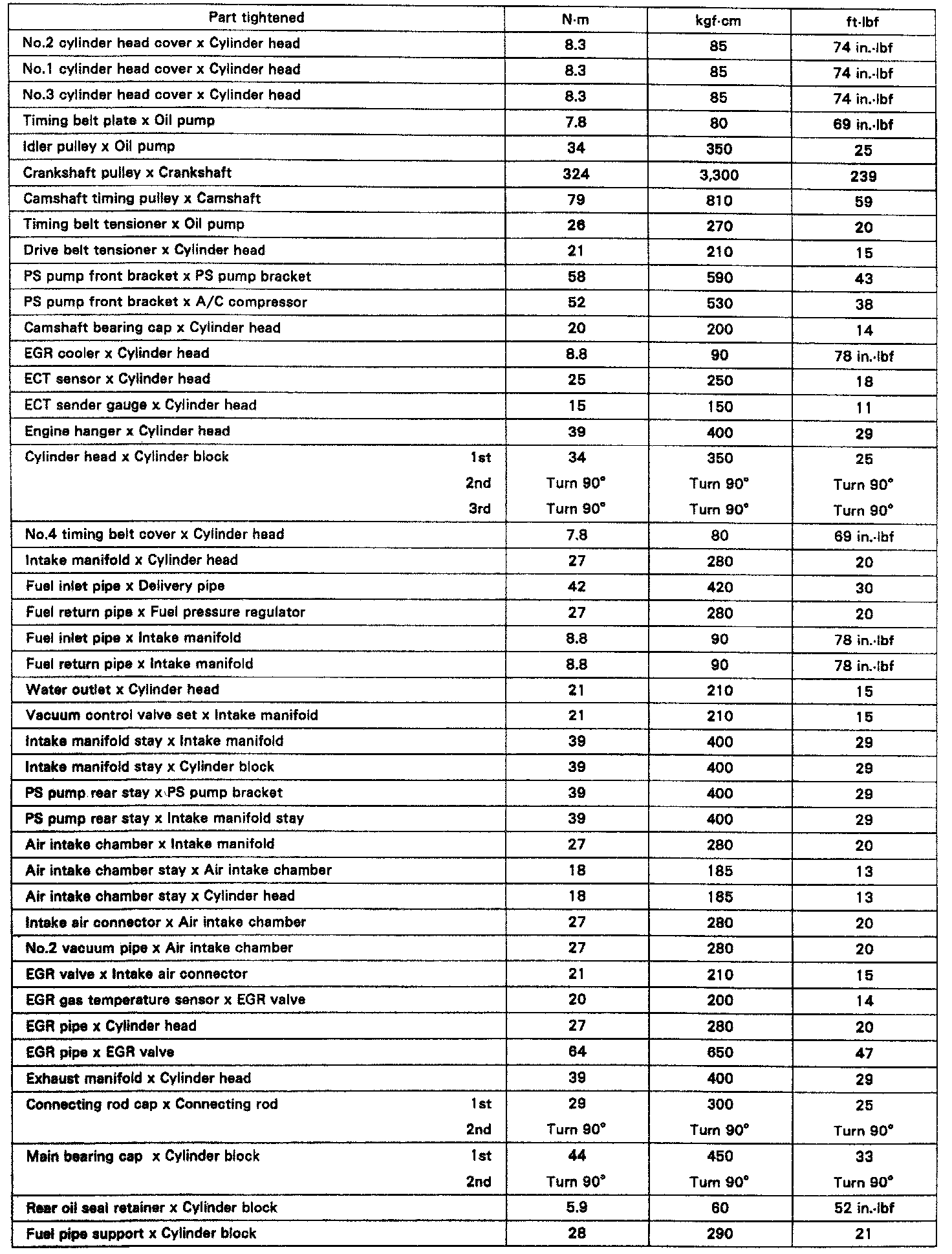

TIGHTENING SPECIFICATIONS

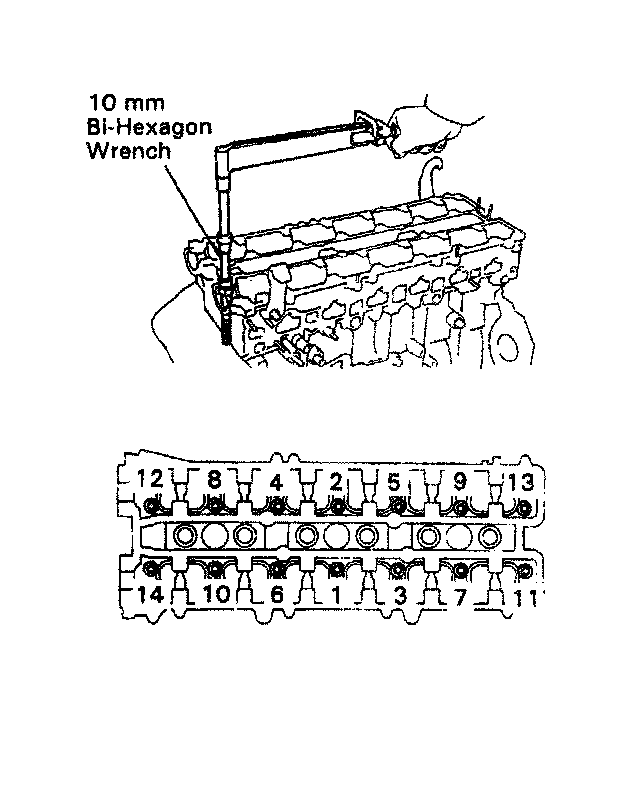

CYLINDER HEAD TIGHTENING SEQUENCE

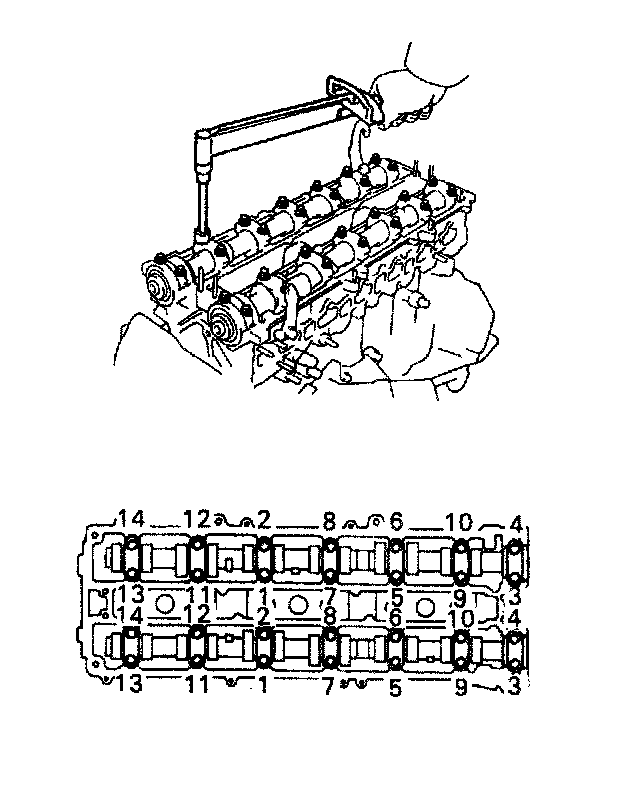

CAM TIGHTENING SEQUENCE

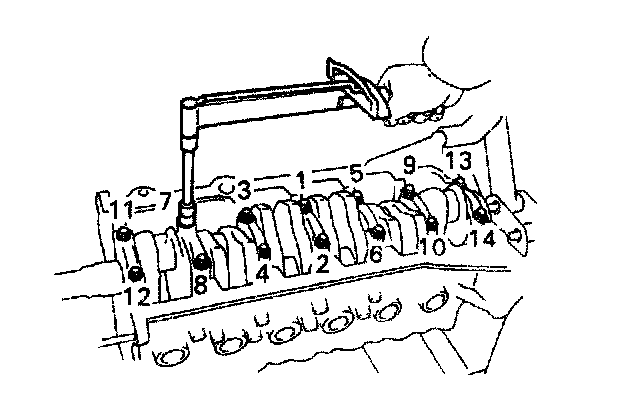

MAIN BEARING TIGHTENING SEQUENCE

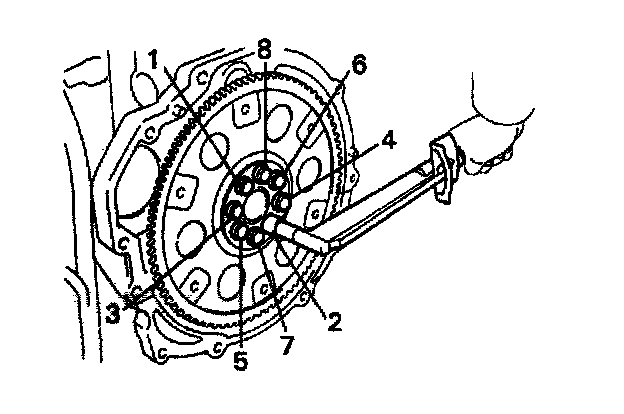

FLYWHEEL TIGHTENING SEQUENCE
