Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

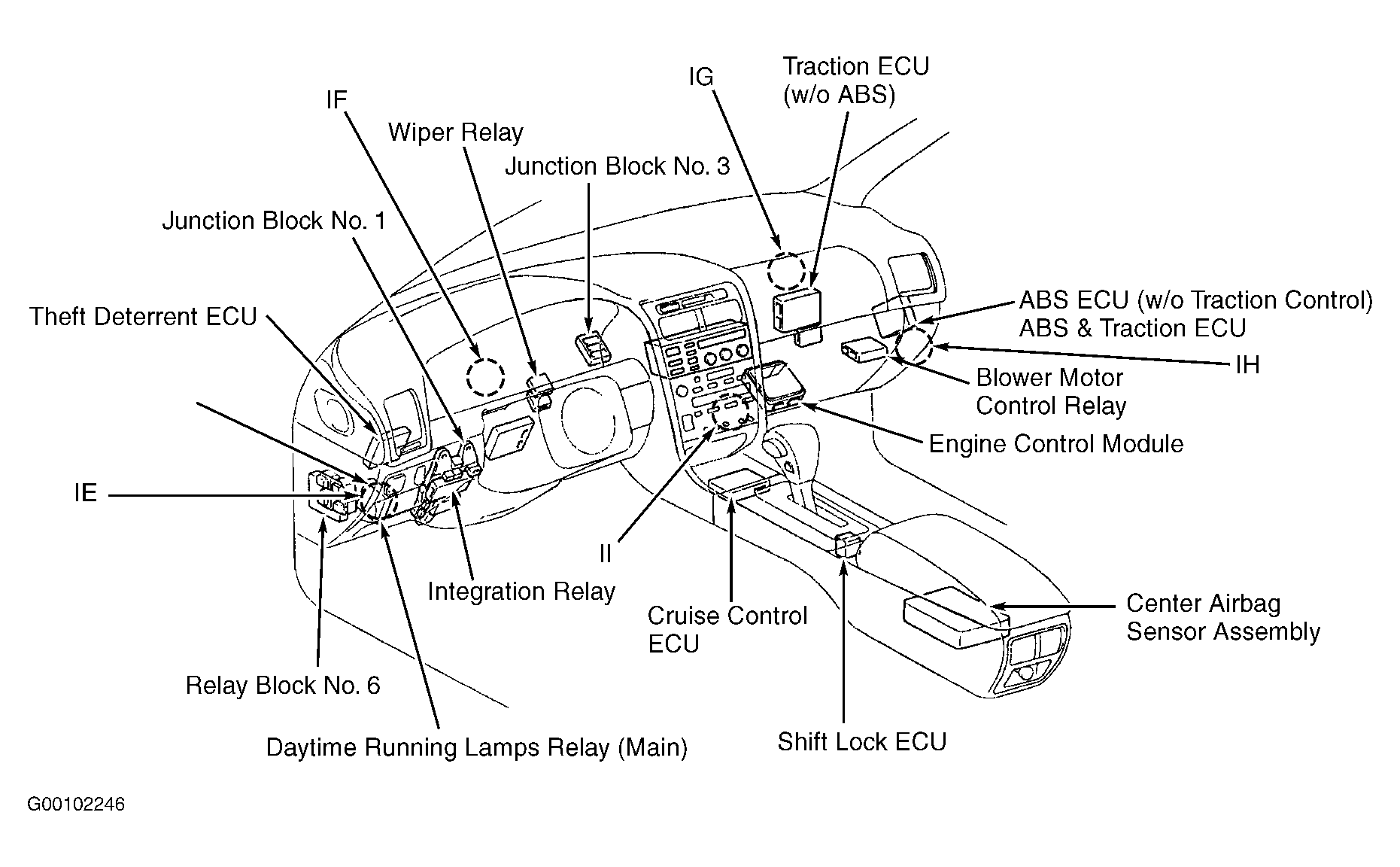

| ABS ECU | Behind right side of dash, integral of TRAC ECU. See Figure. |
| A/C System ECU | Behind center of console, integral of A/C control assembly. |
| Cruise Control ECU | Under center console. See Figure. |
| Door Lock ECU | Behind left side of dash, integral of theft deterrent ECU. |
| Engine Control Module (ECM) (View 1) | Behind right side of dash. See Figure. |
| Engine Control Module (ECM) (View 2) | Behind right side of dash. See Figure. |
| Fuel Pump ECU | On left side of luggage compartment, behind trim panel. See Figure. |
| Power Steering ECU | Behind left side of dash, near steering column. |
| Shift Lock ECU | Under center console, behind gear selector. See Figure. |
| Theft Deterrent ECU | Behind left side of dash, above junction block No. 1. See Figure. |
| Tilt & Power Telescopic ECU | Behind left side of dash, above steering column. |
| Traction ECU | Behind right side of dash. See Figure. |
| Wireless Door Lock ECU | On right side of luggage compartment. |
