Electrical Component Locator: Grounds

GROUNDS

Component Component Location

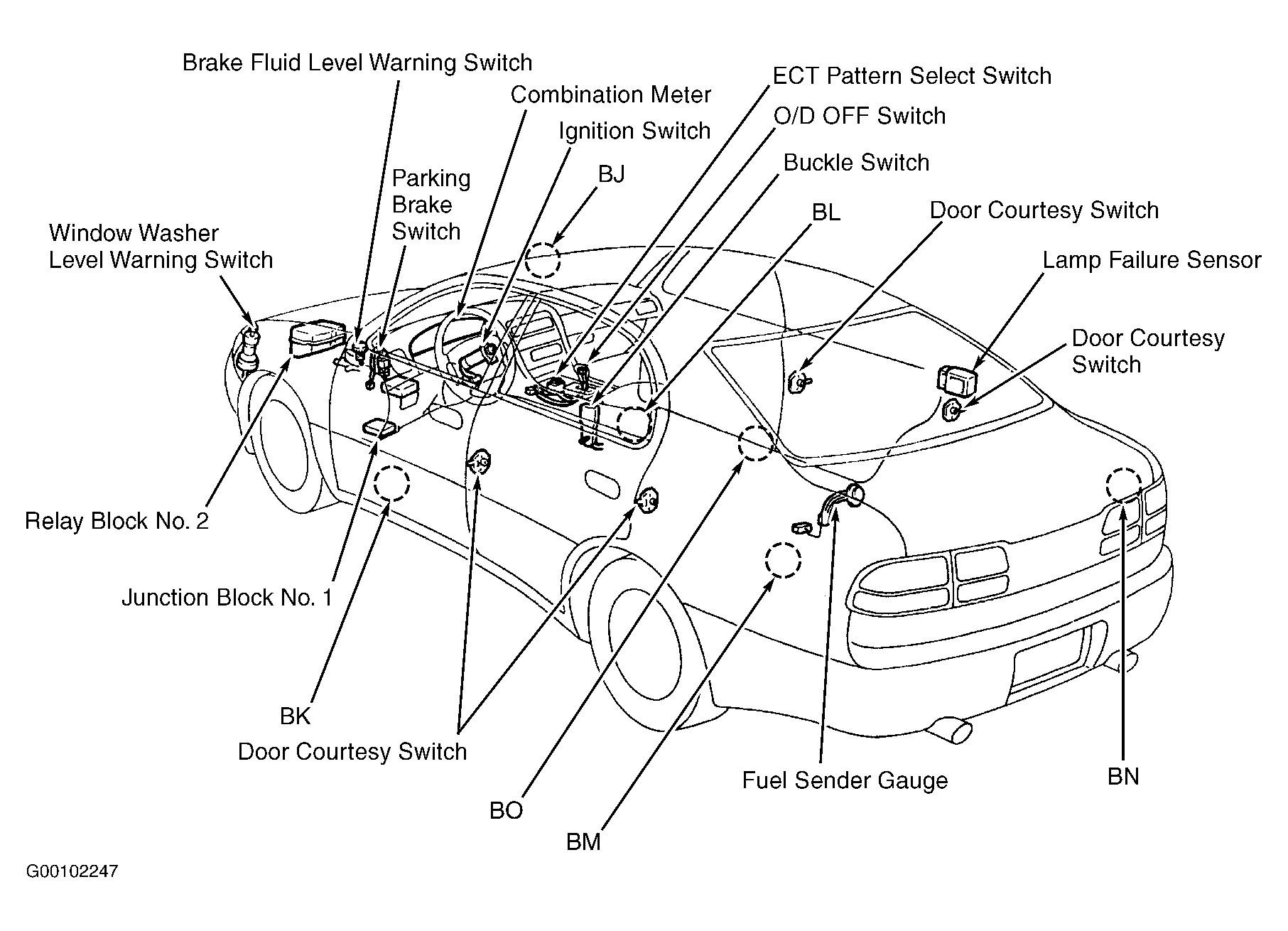

BJ At front side of roof center. See Figure.
BK Under left front seat. See Figure.
BL Under right front seat. See Figure.
BM At left side of luggage compartment. See Figure.
BN At right side of luggage compartment. See Figure.
BO At left "C" pillar. See Figure.
EA At middle of right inner fender panel.
EB At middle of left inner fender panel.
EC At front of intake manifold.
ED At rear of intake manifold.
IE Behind left side of dash. See Figure.
IF Behind instrument cluster. See Figure.
IG Behind passenger side air bag. See Figure.
IH At right kick panel. See Figure.
II At left dash brace. See Figure.
