Engine Control Module

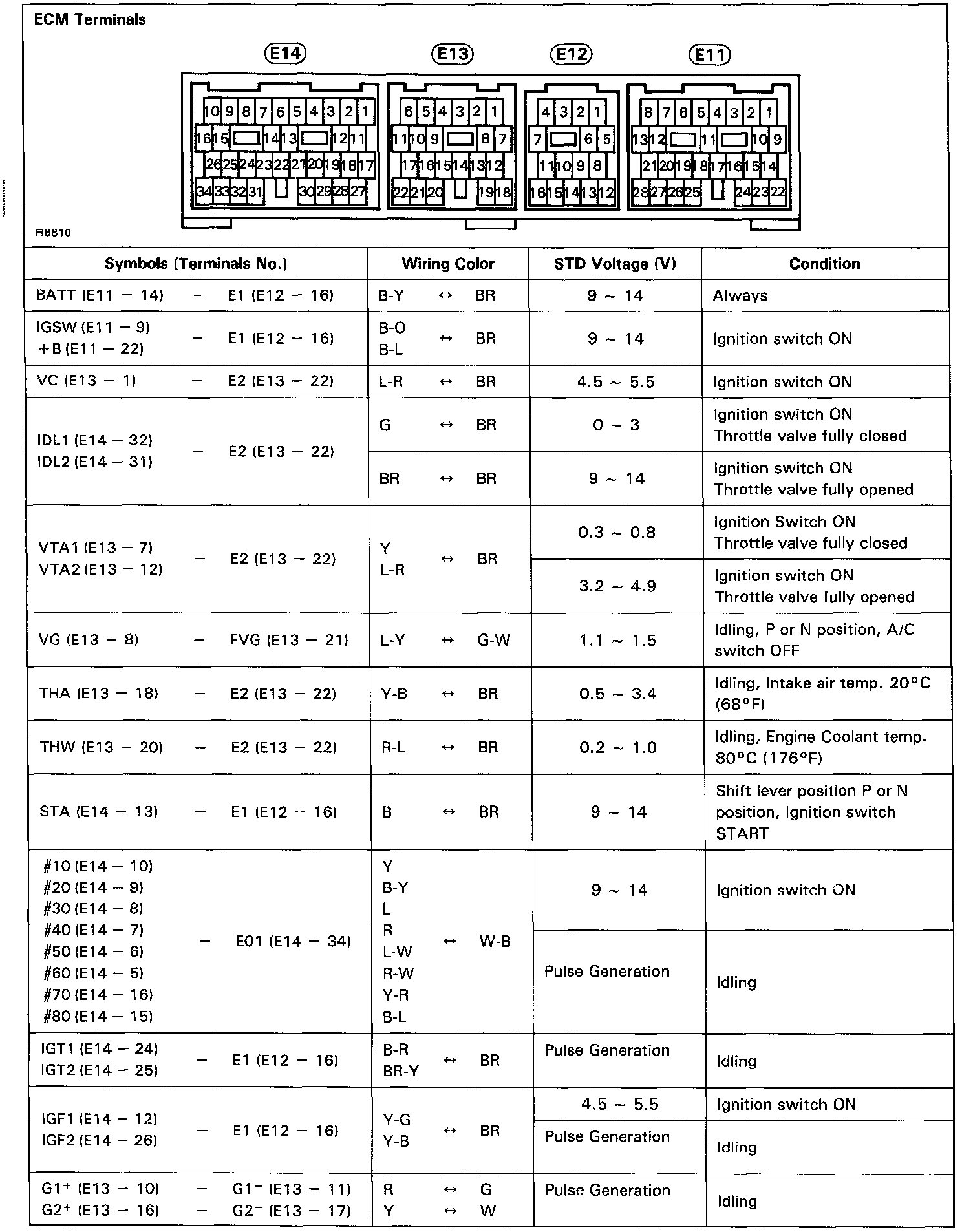

Standard Value Of ECM Terminals (Part 1 Of 3):

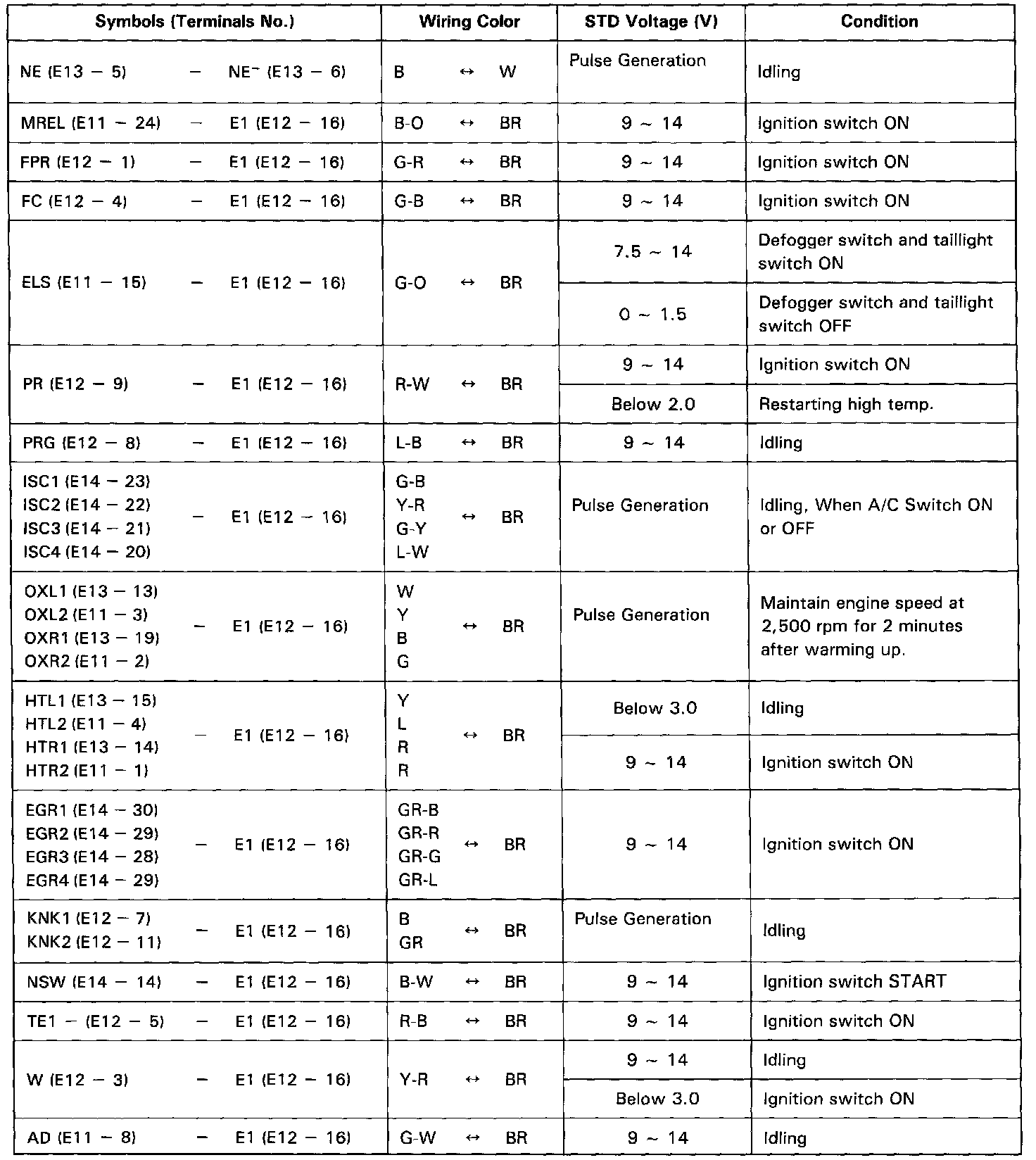

Standard Value Of ECM Terminals (Part 2 Of 3):

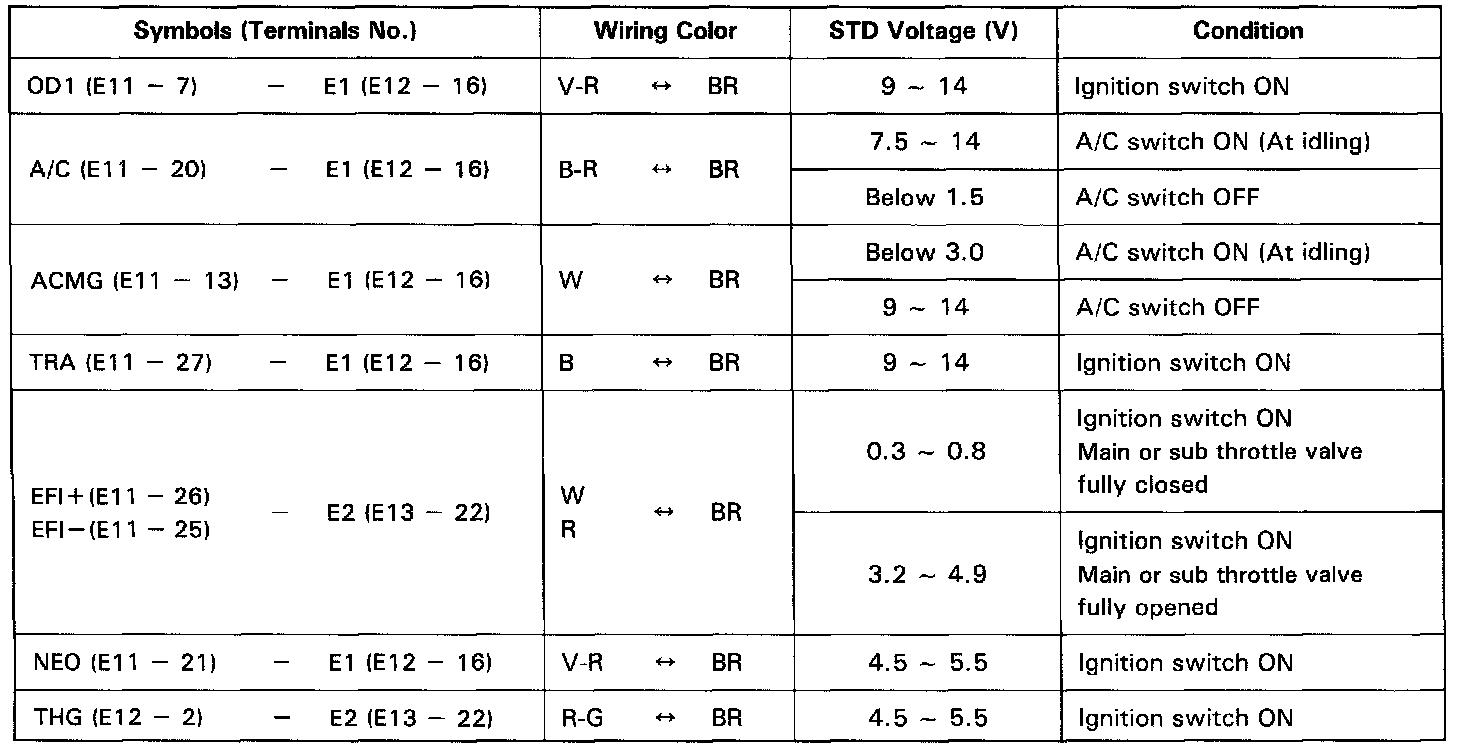

Standard Value Of ECM Terminals (Part 3 Of 3):
