Air Flow Meter/Sensor: Service and Repair

MAF METER REMOVAL

NOTICE: Installation is in the reverse order of removal.

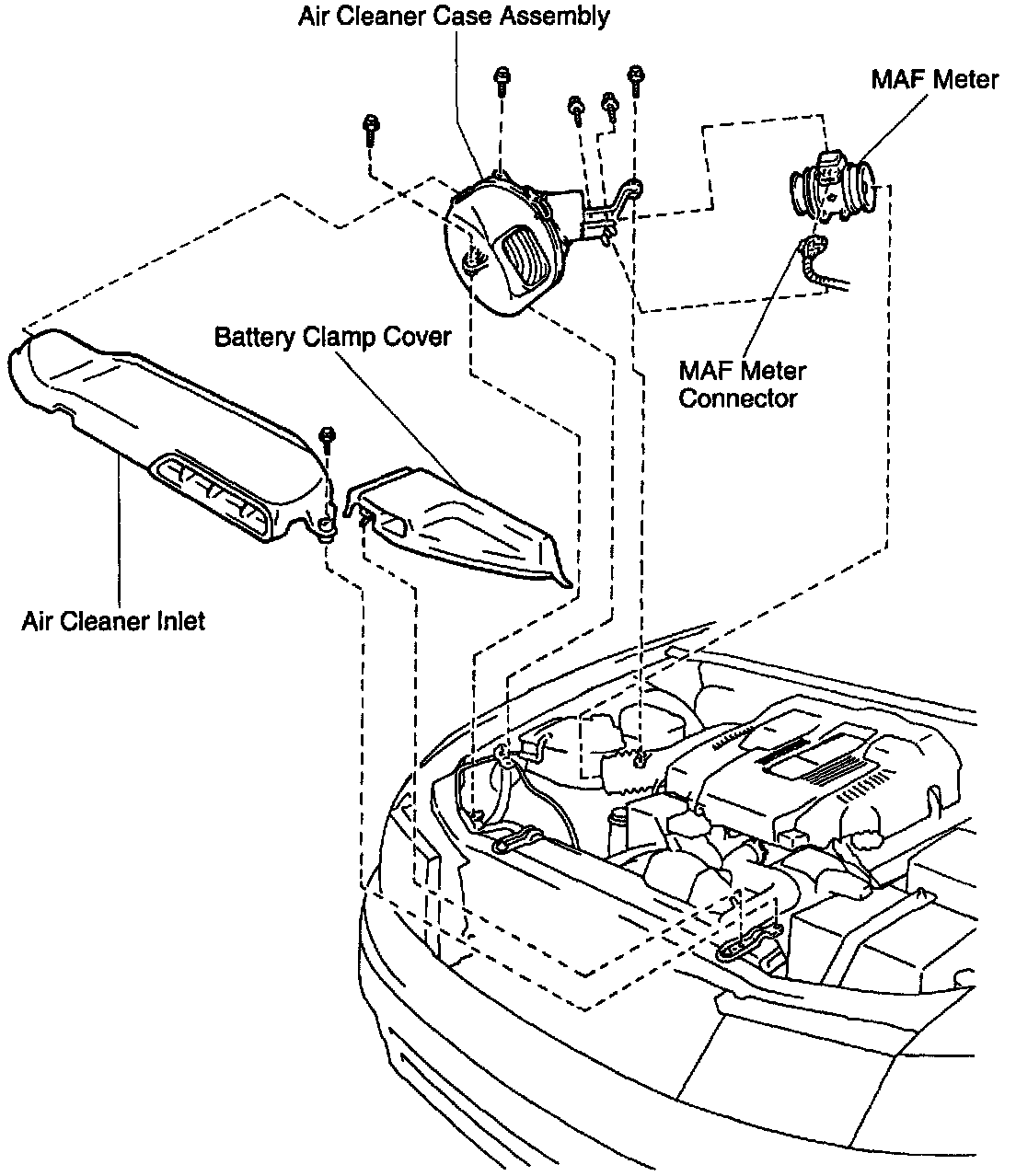

1. REMOVE BATTERY CLAMP COVER AND AIR CLEANER INLET.
2. REMOVE AIR CLEANER CASE ASSEMBLY.
- Disconnect the MAF meter connector.
- Loosen the hose clamp.

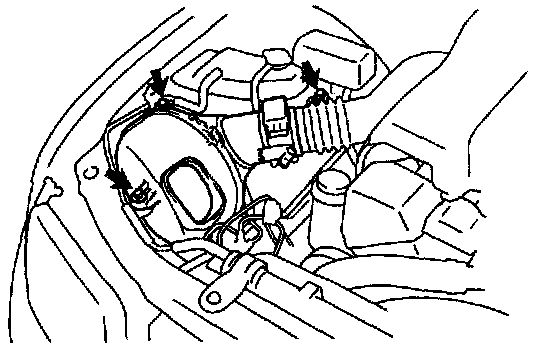

- Remove the 3 bolts and air cleaner case assembly.

3. REMOVE MAF METER FROM AIR CLEANER CASE.

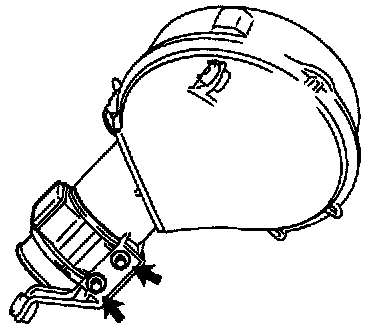

- Remove the 2 bolts and MAF meter.
