Vehicle Speed Sensor: Service and Repair

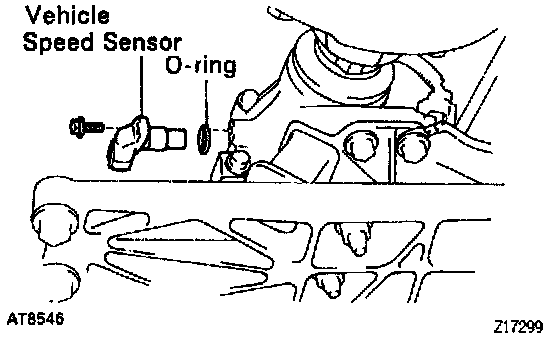

1. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR.
2. REMOVE VEHICLE SPEED SENSOR.
- Remove the bolt and vehicle speed sensor.
- Remove the O-ring from it.
3. INSTALL VEHICLE SPEED SENSOR.
- Cost a new O-ring with ATF and install it to the speed sensor.
- Install the speed sensor and torque the bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lb.)

4. CONNECT VEHICLE SPEED SENSOR CONNECTOR.
