Electronic Brake Control Module

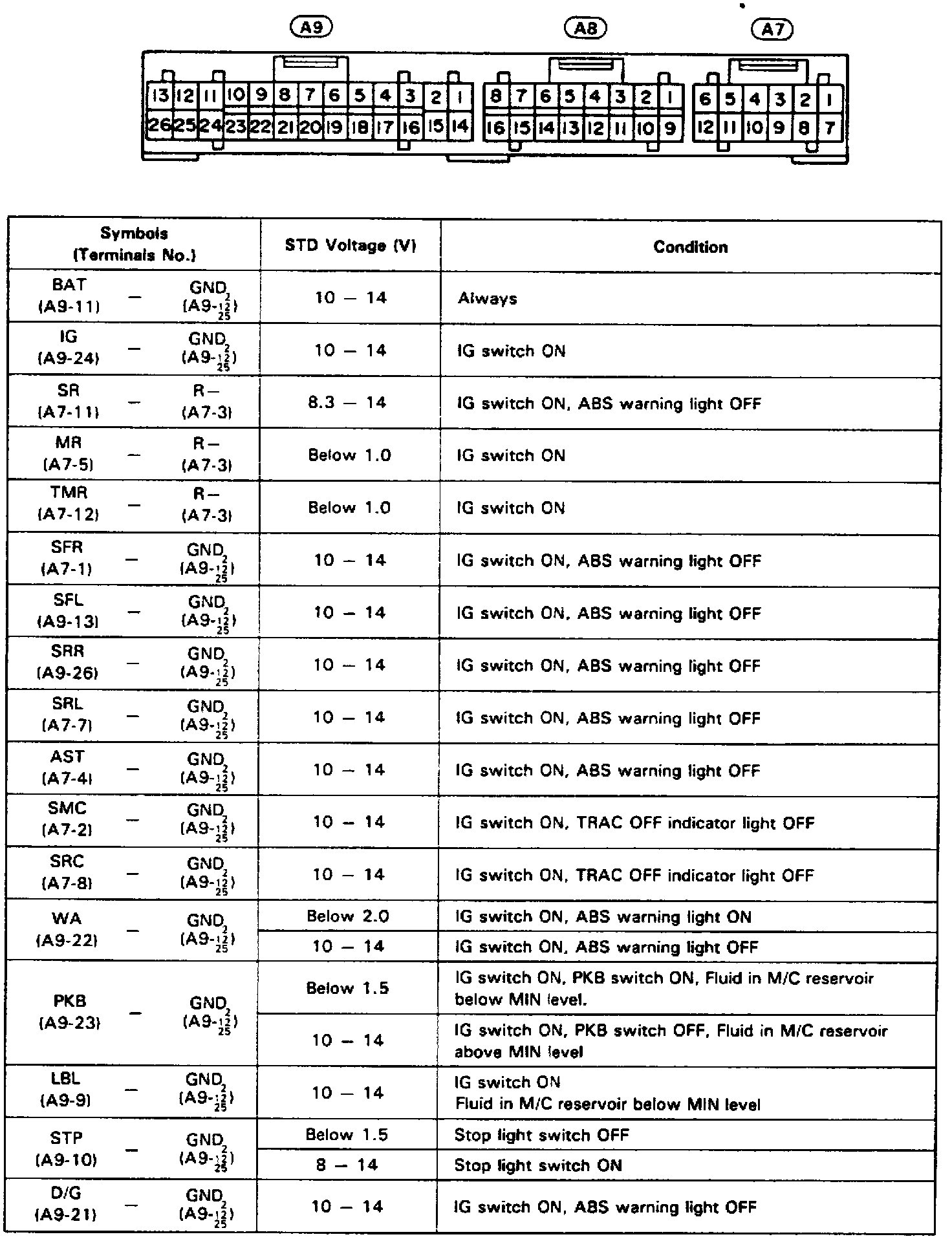

Fig. 34 ABS & TRAC ECU Terminal Identification & Values (Part 1 Of 2):

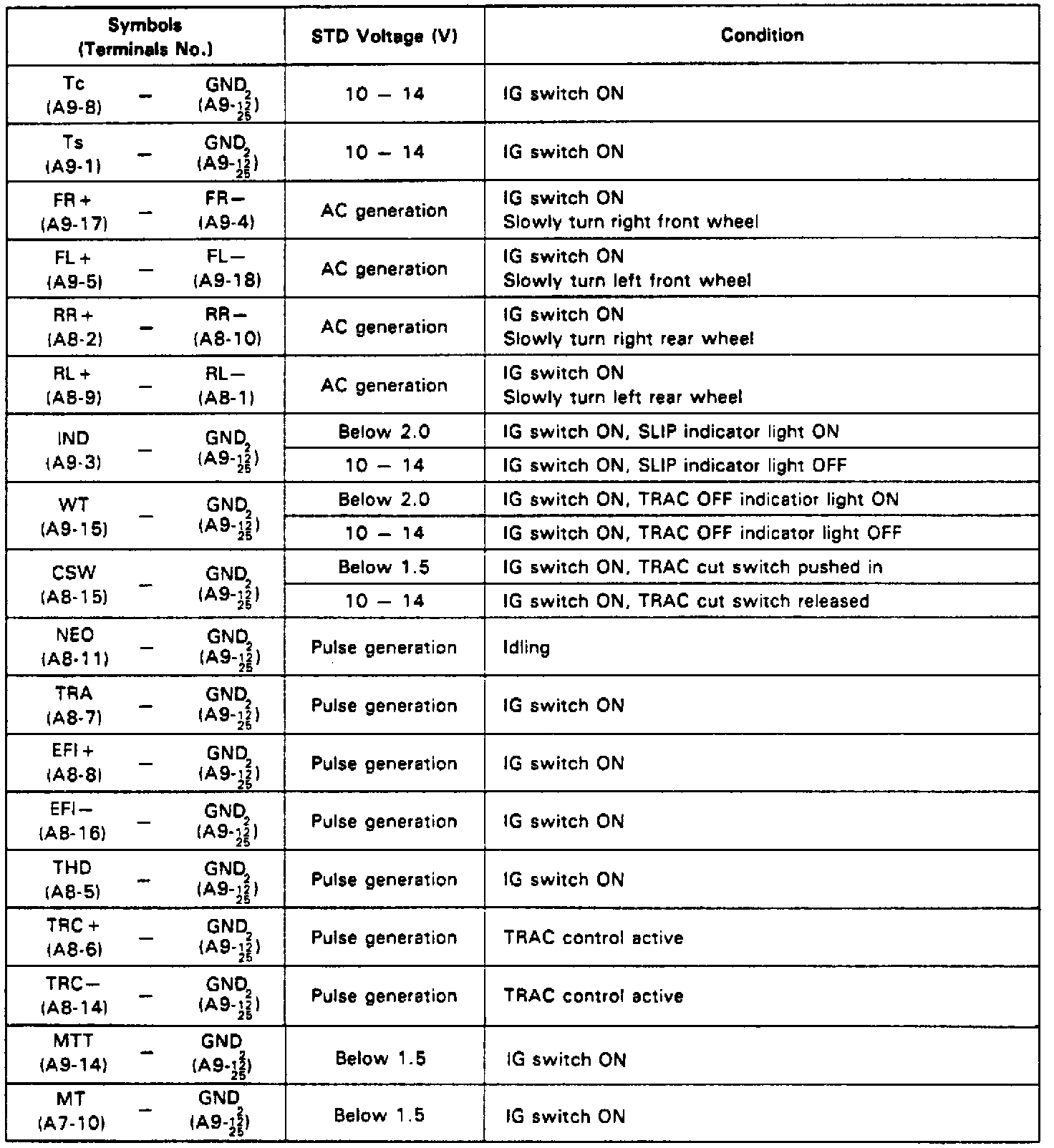

Fig. 34 ABS & TRAC ECU Terminal Identification & Values (Part 2 Of 2):
