Engine Hood Courtesy Switch

  1. Locate engine hood courtesy switch. Disconnect engine hood courtesy switch connector. Check for continuity between engine hood courtesy switch terminals. Continuity should exist with hood open (switch pin released). Continuity should not exist with hood closed (switch pin pushed in). If continuity is as specified, go to next step. If continuity is not as specified, replace engine hood courtesy switch.

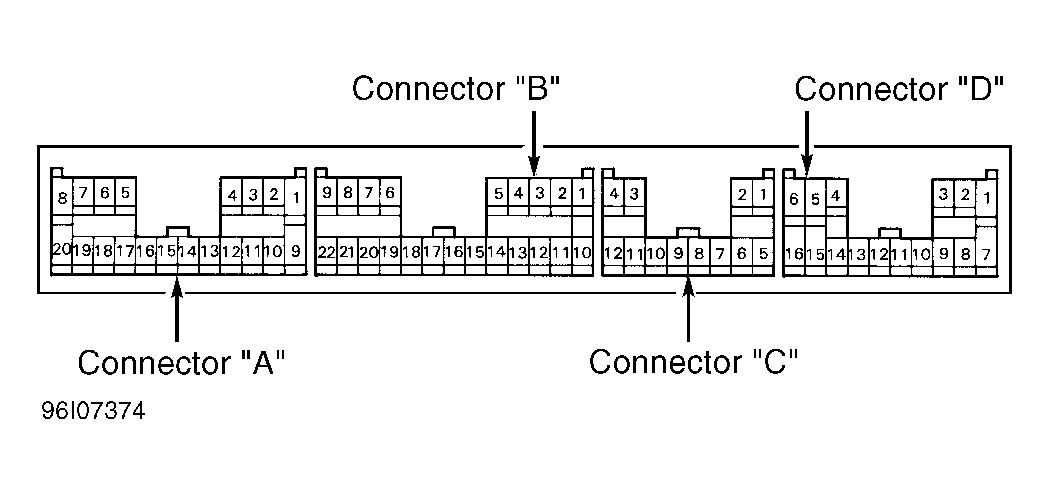

  2. Disconnect 16-pin connector "D" from body ECU. See Figure. Check for continuity between 16-pin connector "D" terminal No. 2 (Green/White wire) and ground. Continuity should exist with hood open (switch pin released). Continuity should not exist with hood closed (switch pin pushed in). If continuity is not as specified, repair wiring harness as necessary.
