Indicator Light

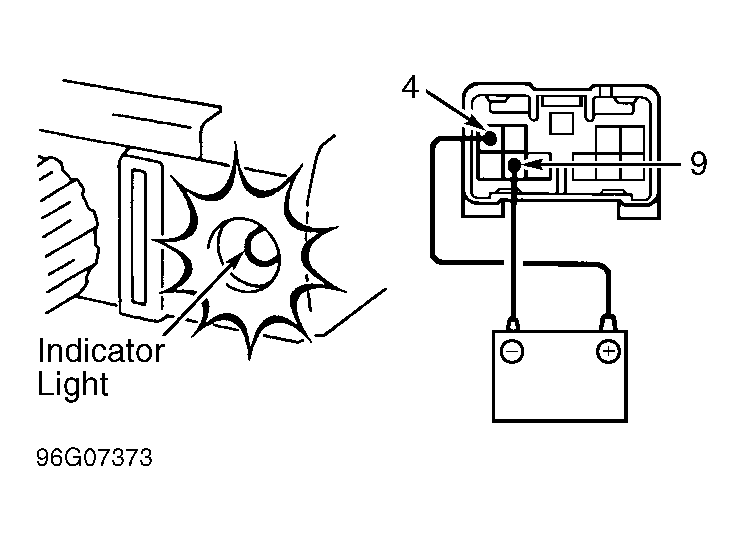

Remove instrument cluster. Disconnect rheostat light control connector. Connect positive battery lead to terminal No. 4. Connect negative battery lead to terminal No. 9. See Fig 1. Indicator light should come on. If operation is not as specified, replace rheostat light control.
