A/C Control Unit Power Source Change (EL95-005)
Publication date: 1995-09-15Reference number: EL95-005
A/C CONTROL UNIT POWER SOURCE CHANGE
TECHNICAL SERVICE BULLETIN
Reference Number(s): EL95-005, Date of Issue:
September 15, 1995
| LEXUS: | 1995 LS 400 |
| GROUP: | Electrical |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
DESCRIPTION
A/C CONTROL UNIT POWER SOURCE CHANGE

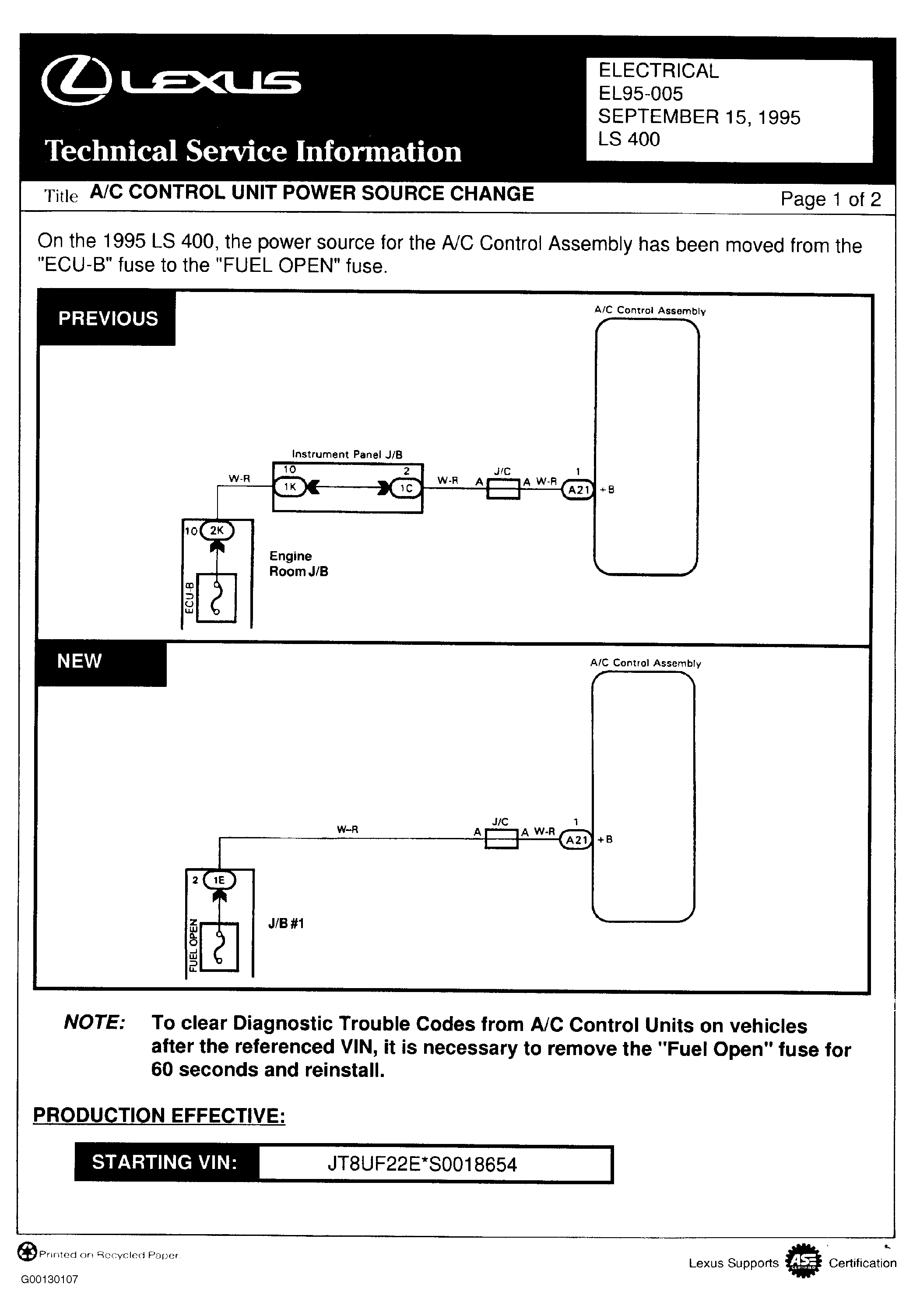

On the 1995 LS 400, the power source for the A/C Control Assembly has been moved from the "ECU-B" fuse to the "FUEL OPEN" fuse.
