Front Suspension

  1. Ensure riding height, camber, and steering axis inclination are correct. See the following:

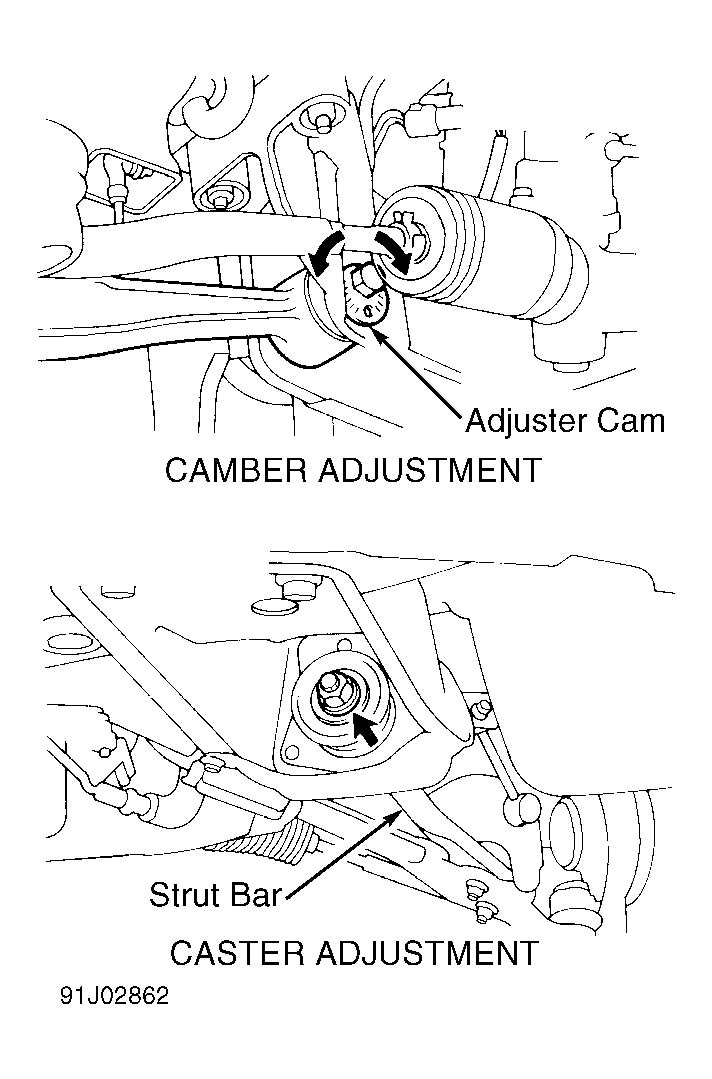

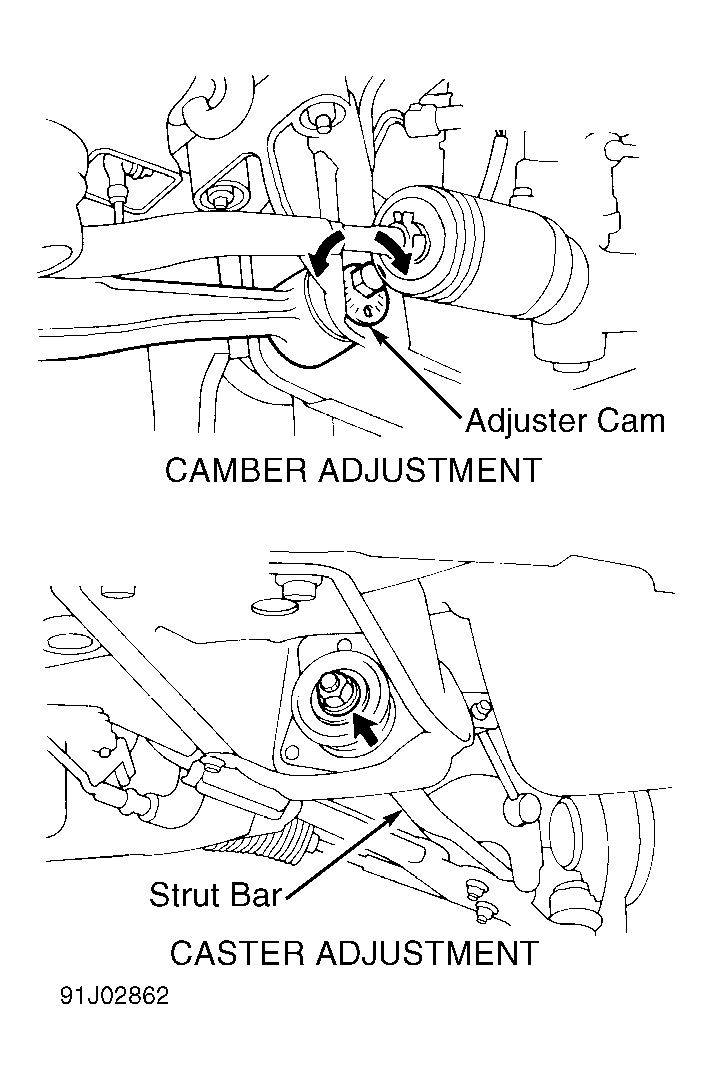

  2. Measure caster of each front wheel. If caster is not within specification, adjust angle by loosening strut bar nuts and changing length of strut bar(s). Caster changes by about 10 minutes for each rotation of nut. See Figure.
