Air Flow Meter/Sensor: Testing and Inspection

1. Disconnect the Volume Air Flow (VAF) meter connector.

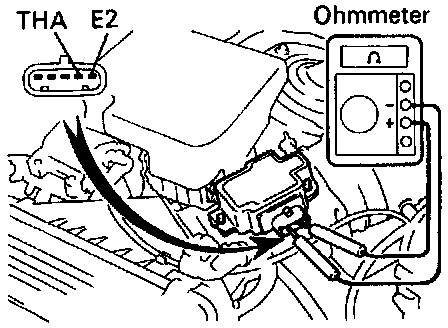

2. Using an ohmmeter, measure the resistance between terminals THA and E2.

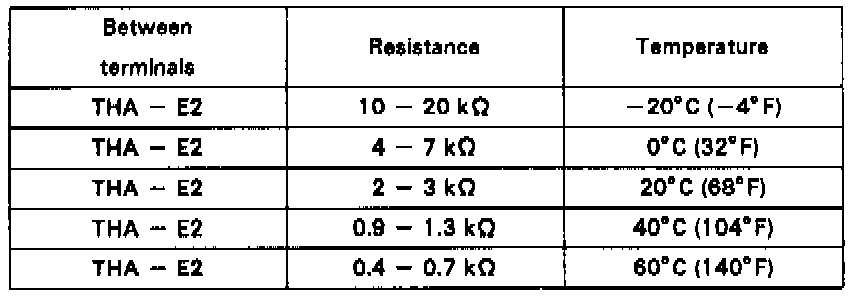

3. If the resistance is not as specified in the above image, replace the VAF meter.
4. Reconnect the VAF meter connector.
