Alternator

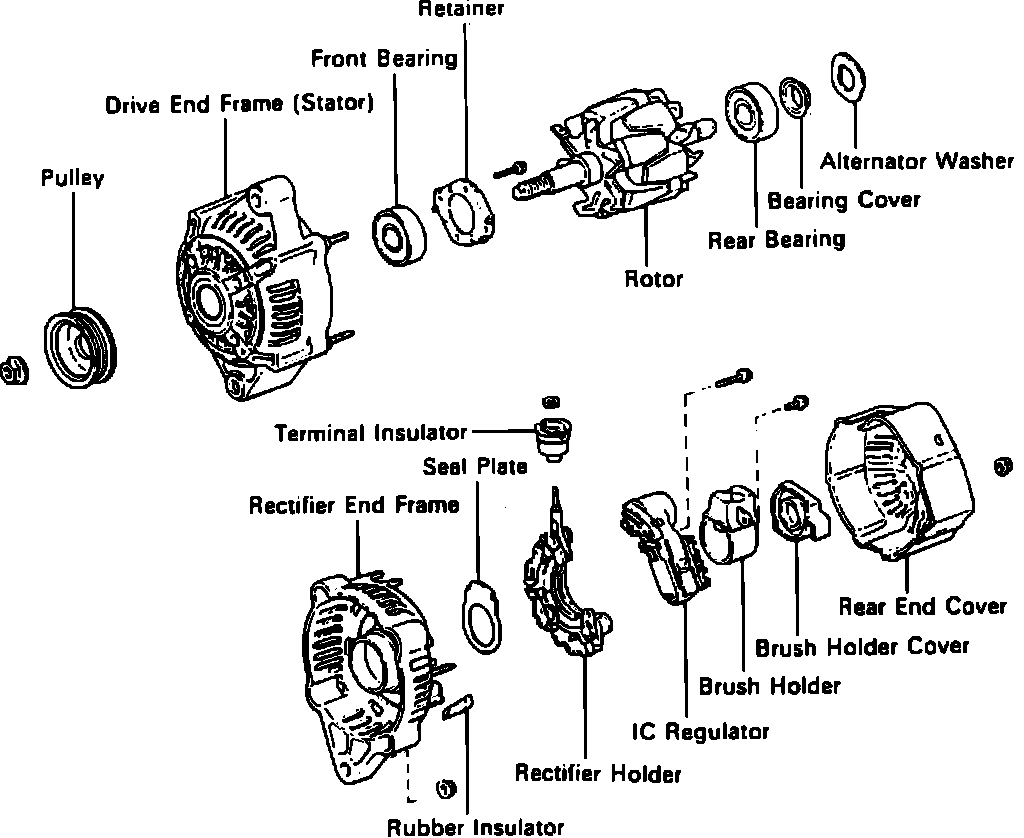

Fig. 1 Exploded View Of Alternator. Less IC Regulator:

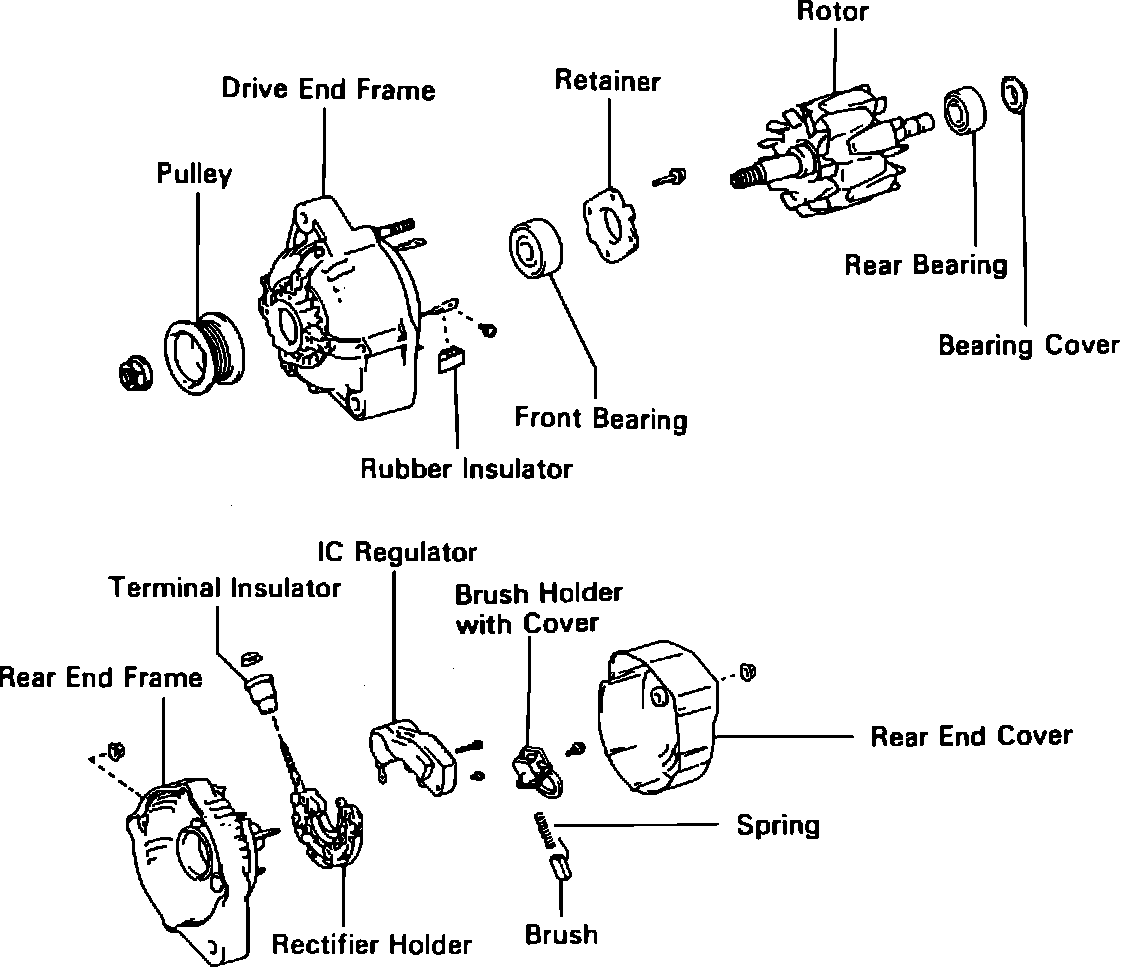

Fig. 2 Exploded View Of Alternator. 50 Amp:

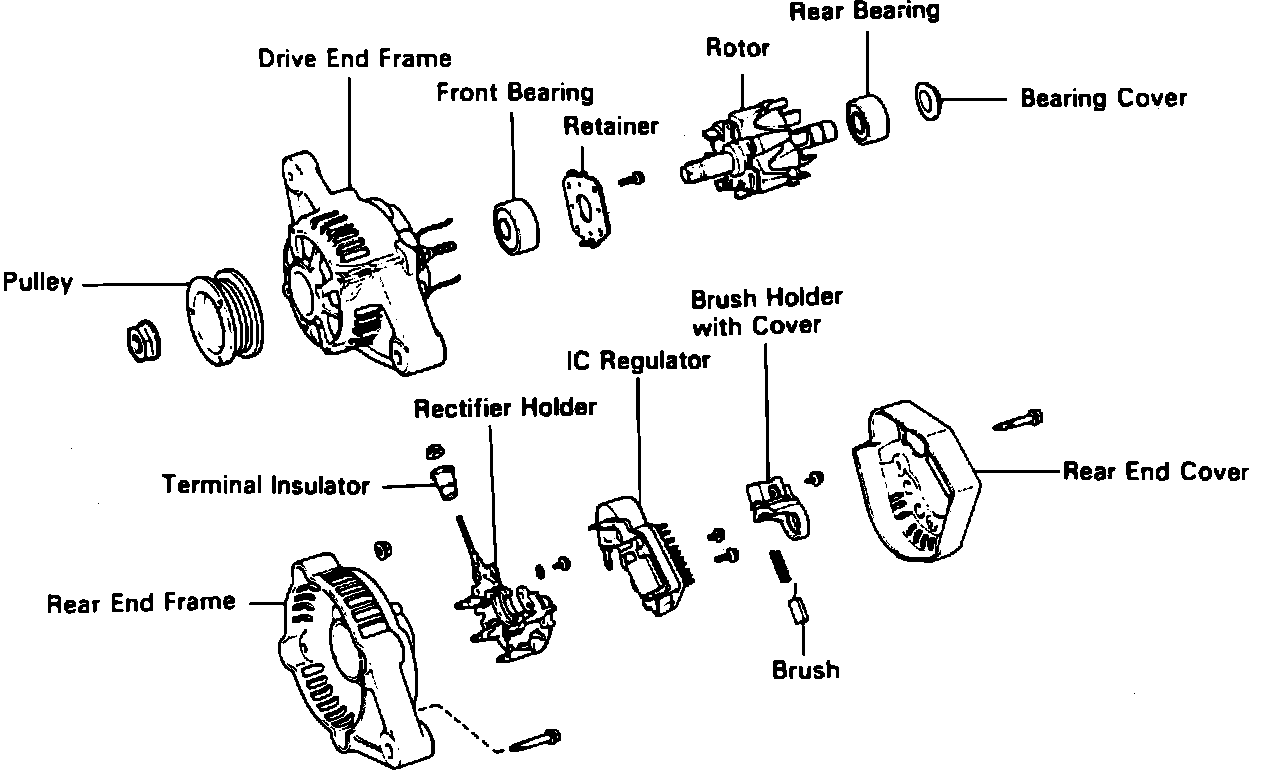

Fig. 3 Exploded View Of Alternator. 55 Amp:

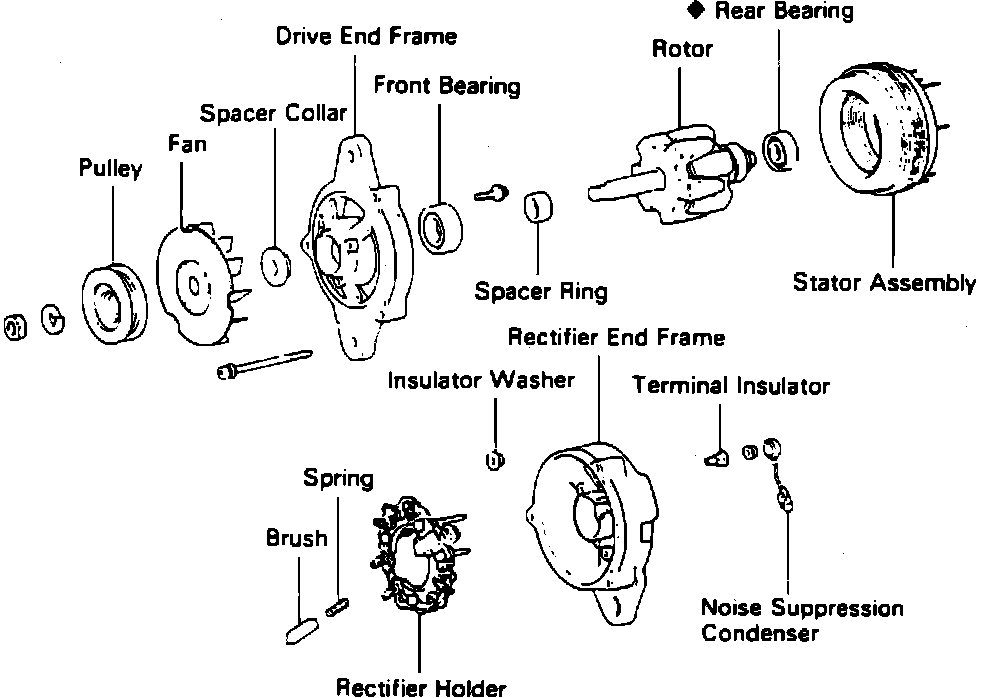

Fig. 4 Exploded View Of Alternator. 60 & 70 Amp:

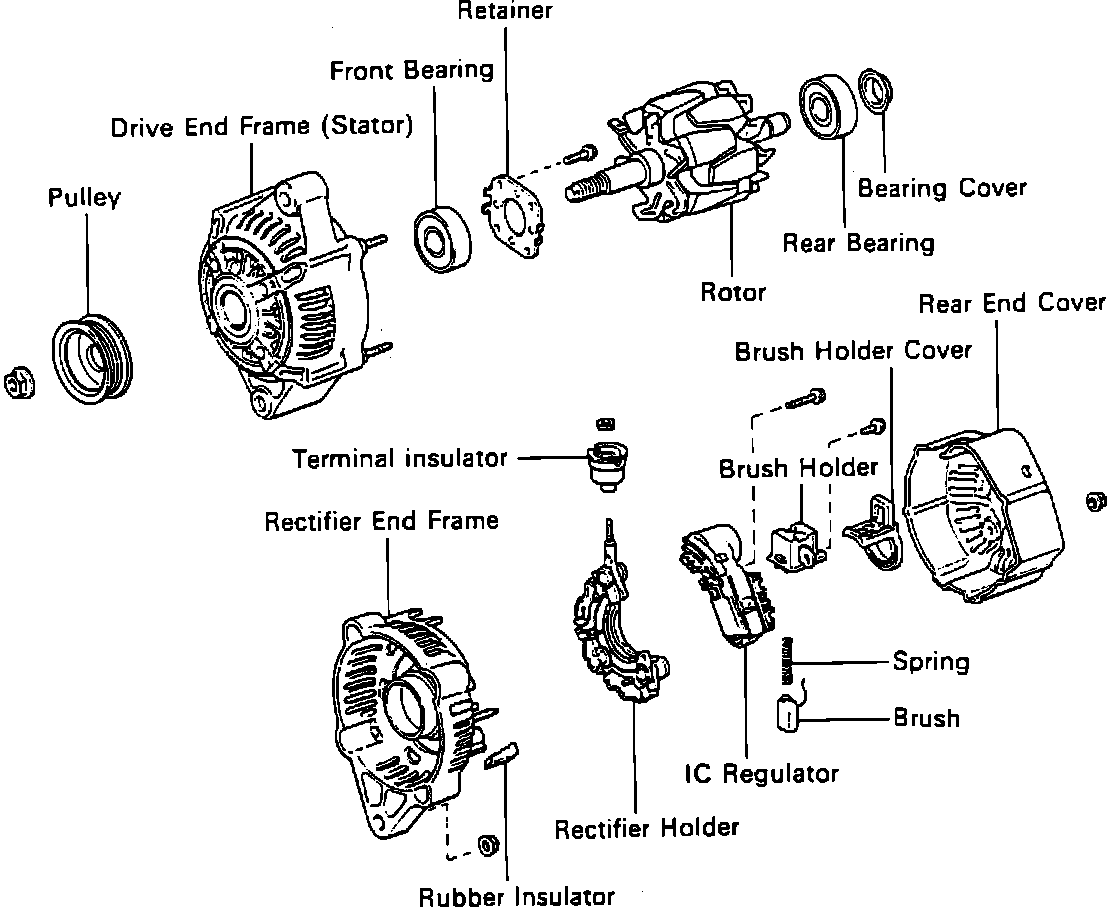

Fig. 6 Exploded View Of Alternator. 80, 90 & 100 Amp:
Refer to Figs. 1 through 4 and 6, for alternator exploded views.
