Compressor Speed Sensor: Testing and Inspection

The air conditioning control assembly outputs the magnetic clutch ON signal from terminal MGC to the ECM.
When the ECM receives this signal, it sends a signal from terminal ACMG and switches the A/C magnetic clutch relay on, thus turning on the A/C magnetic clutch.
The air conditioning control assembly also monitors at terminal NC IN whether or not power is being supplied to the magnetic clutch.

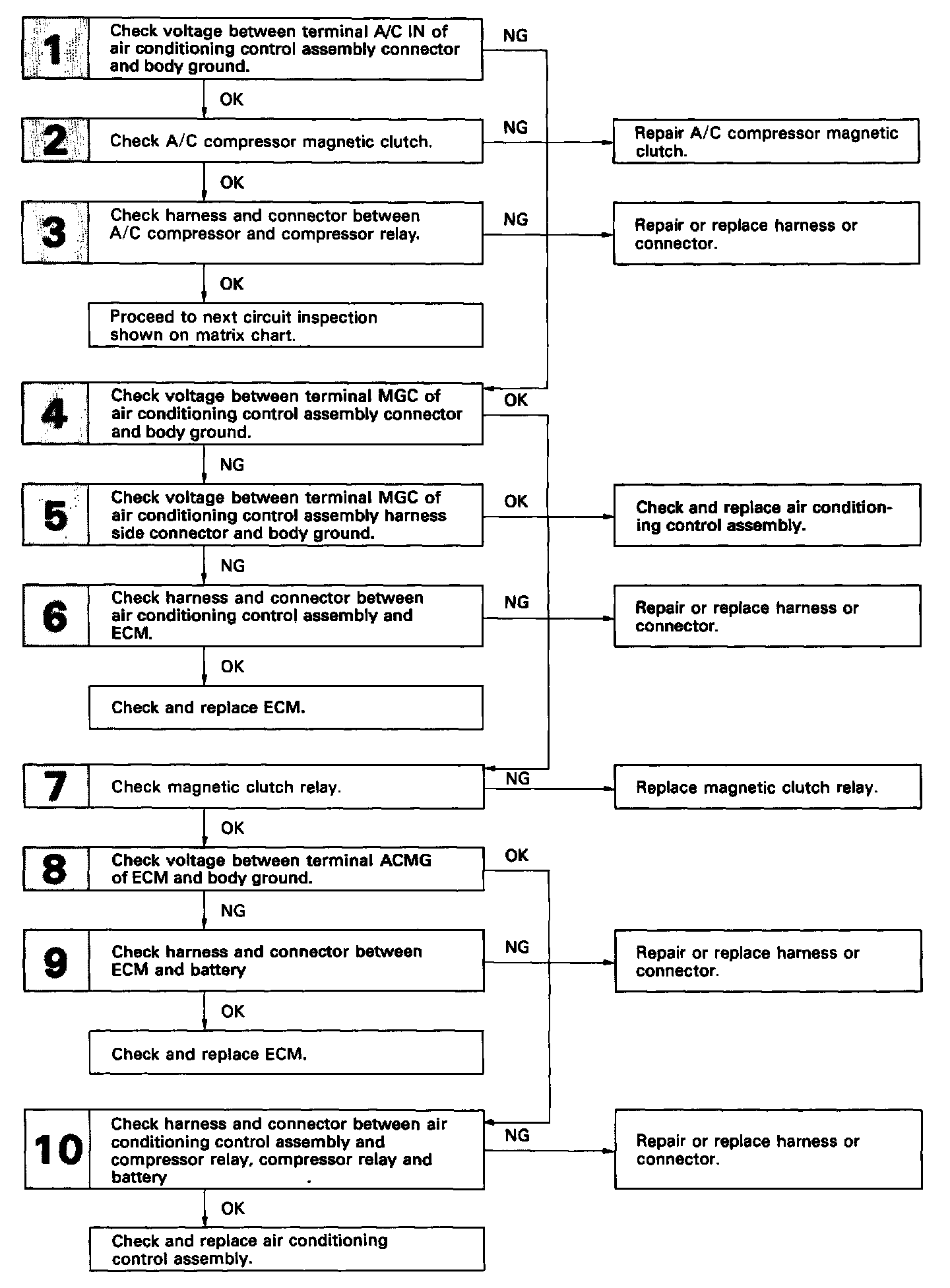

Diagnostic Chart:

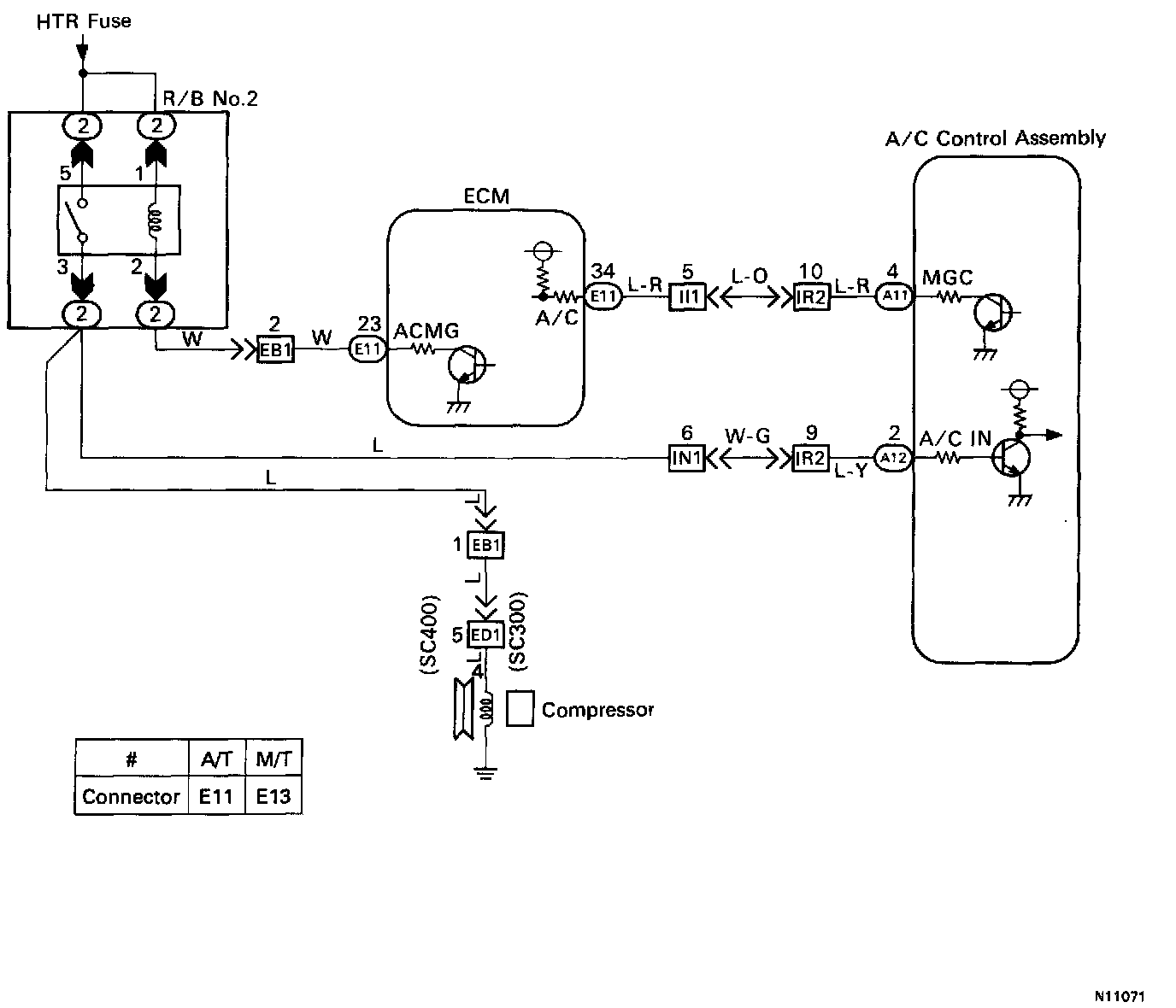

Wiring Diagram:

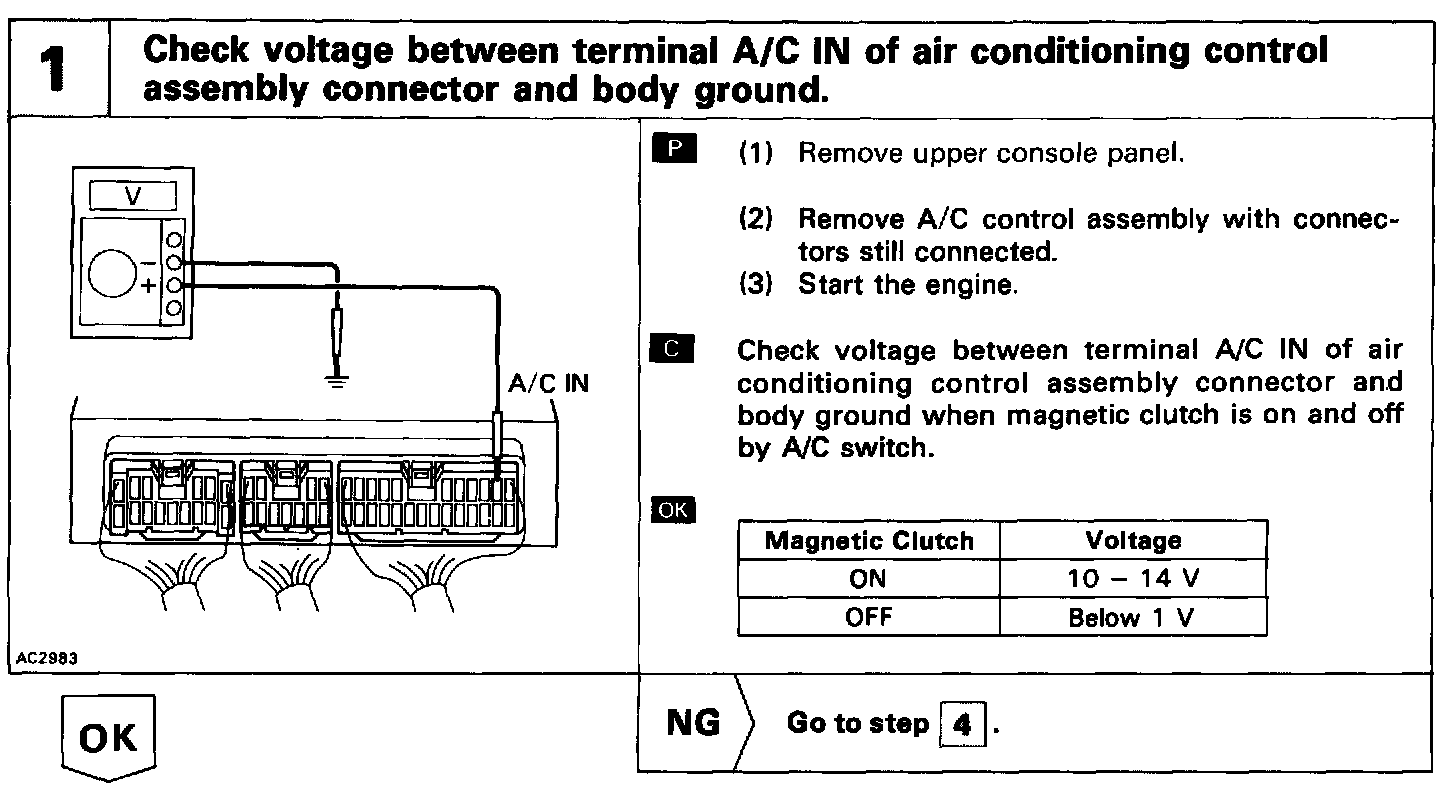

Inspection Procedure - Step 1:

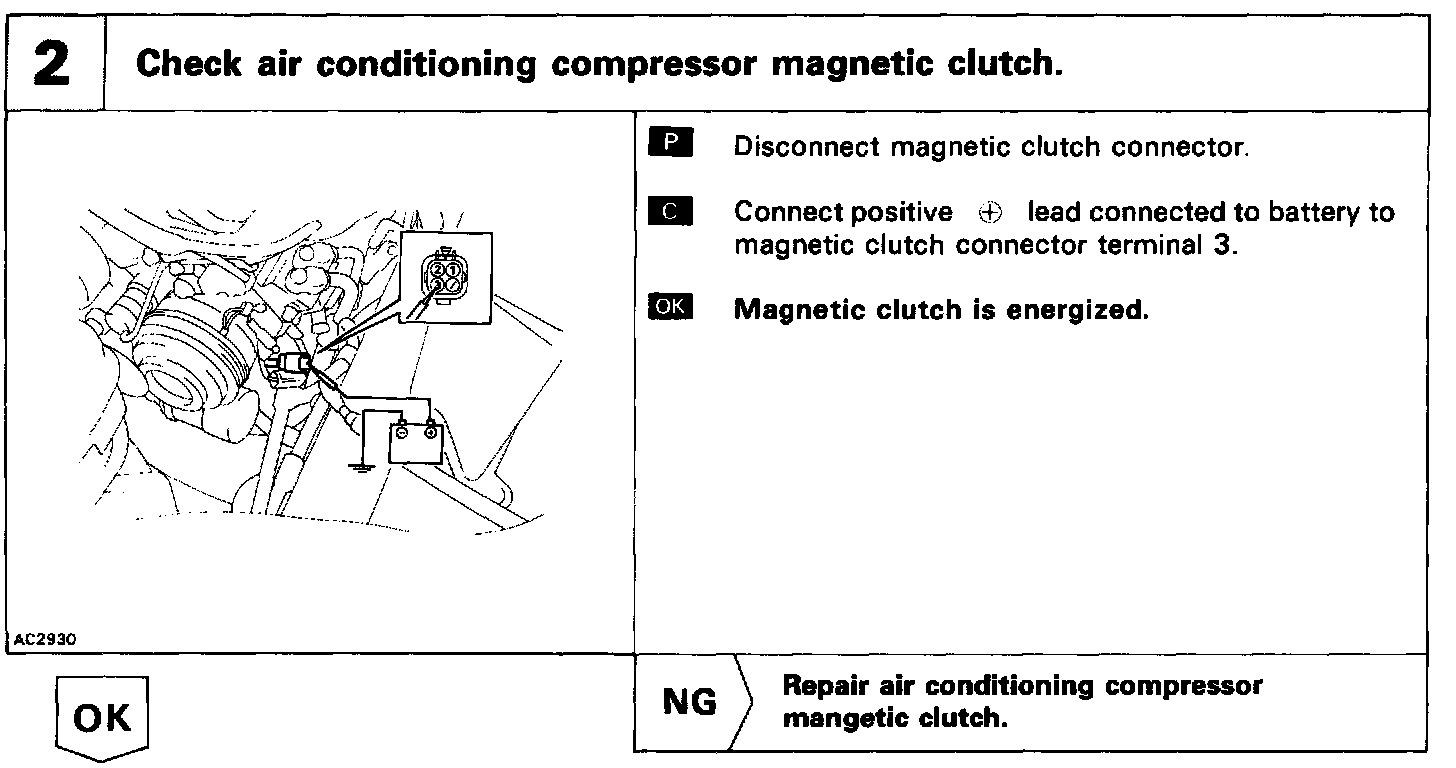

Step 2:

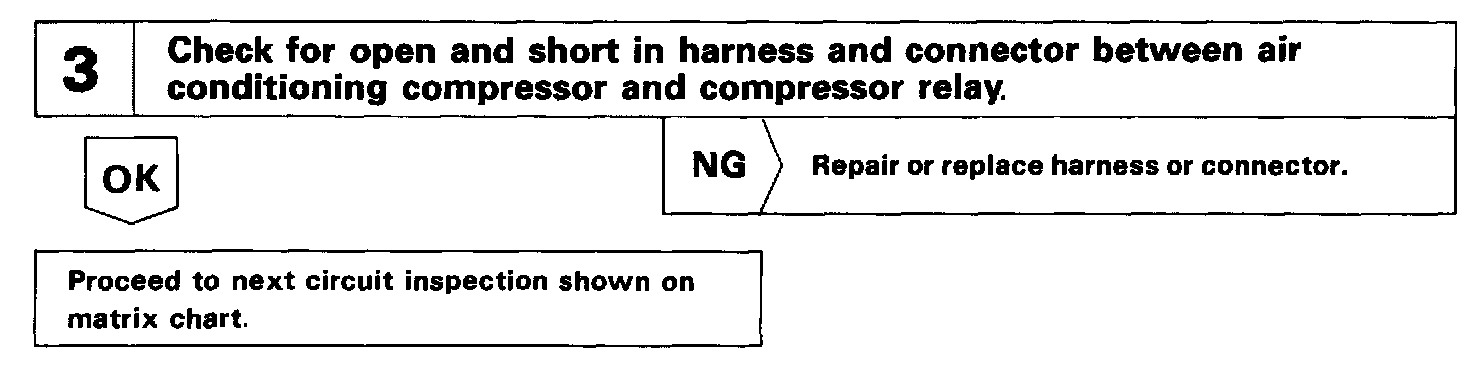

Step 3:

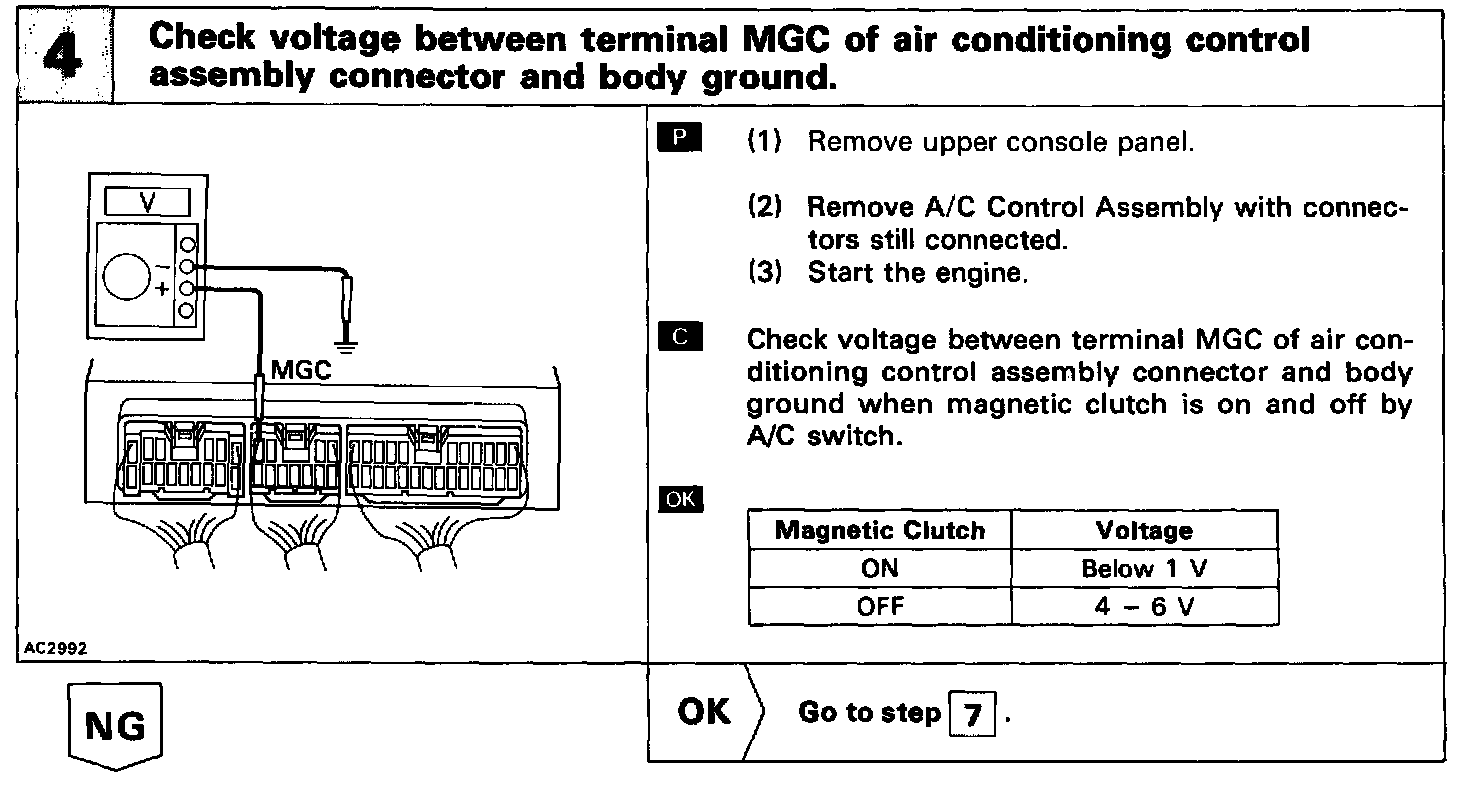

Step 4:

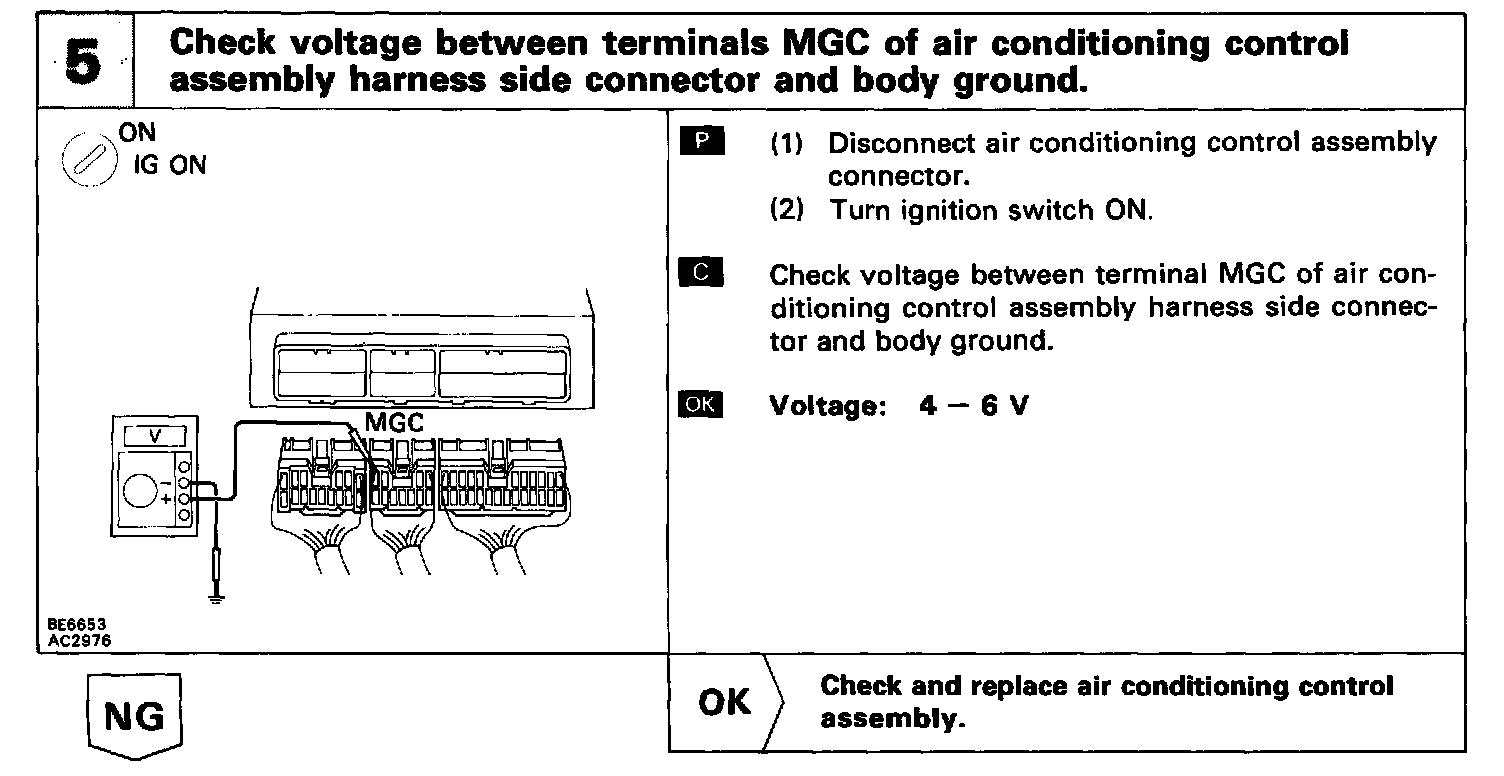

Step 5:

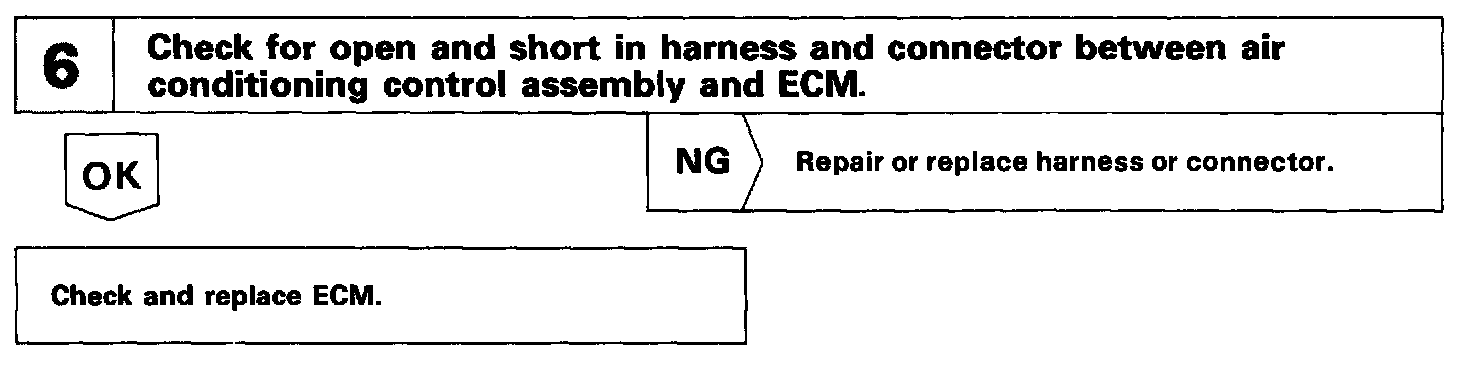

Step 6:

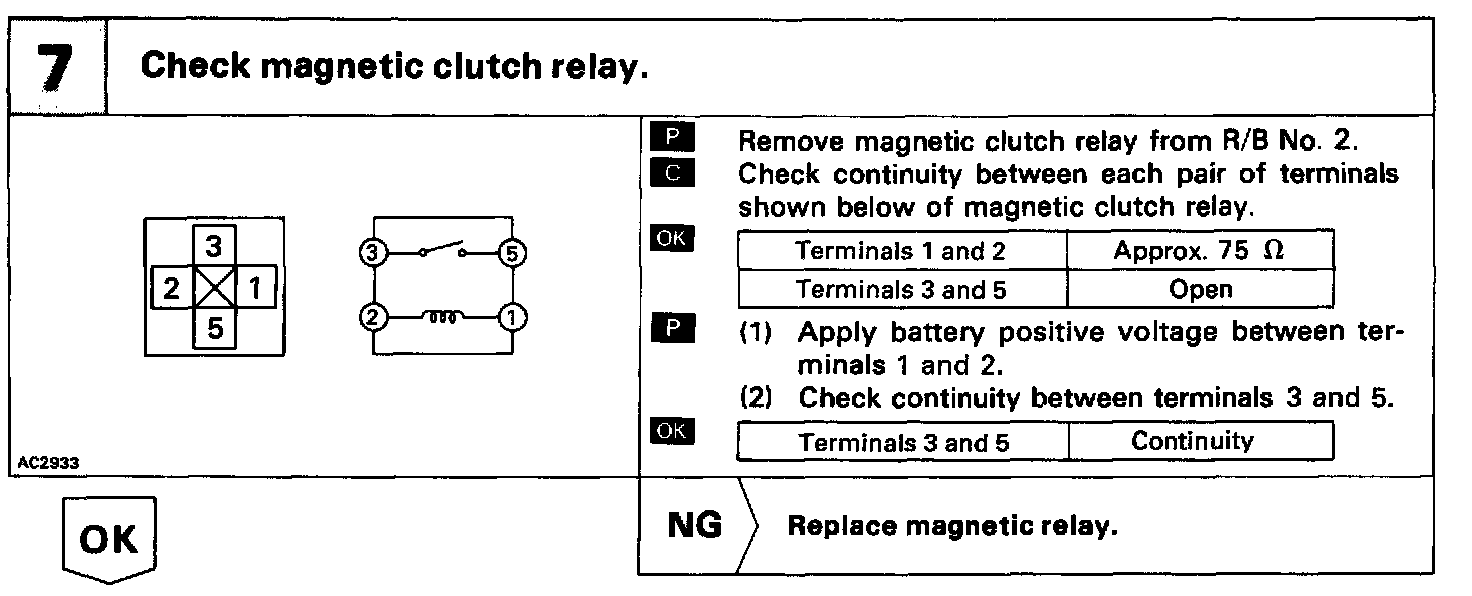

Step 7:

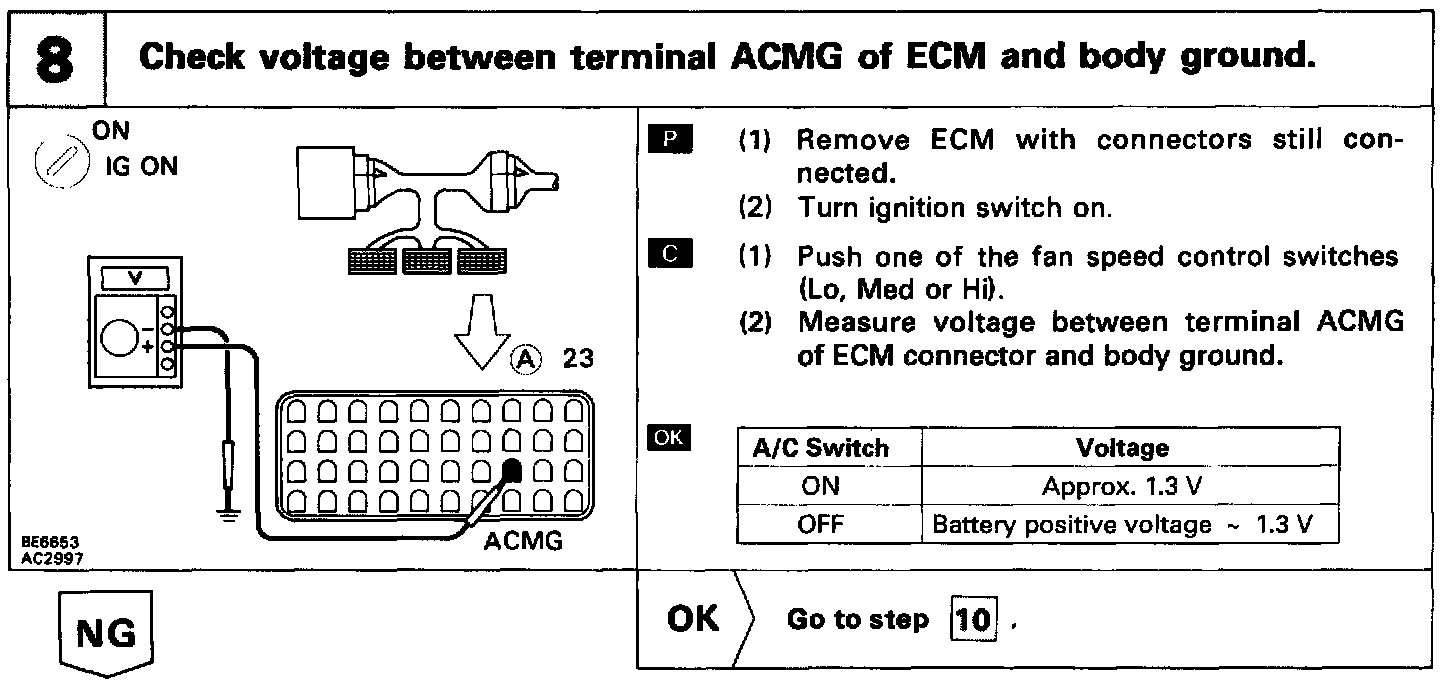

Step 8:

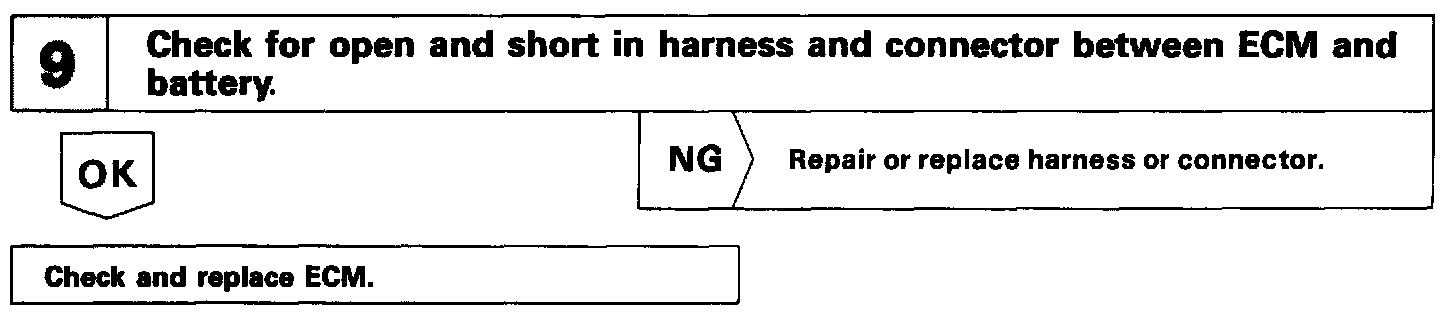

Step 9:

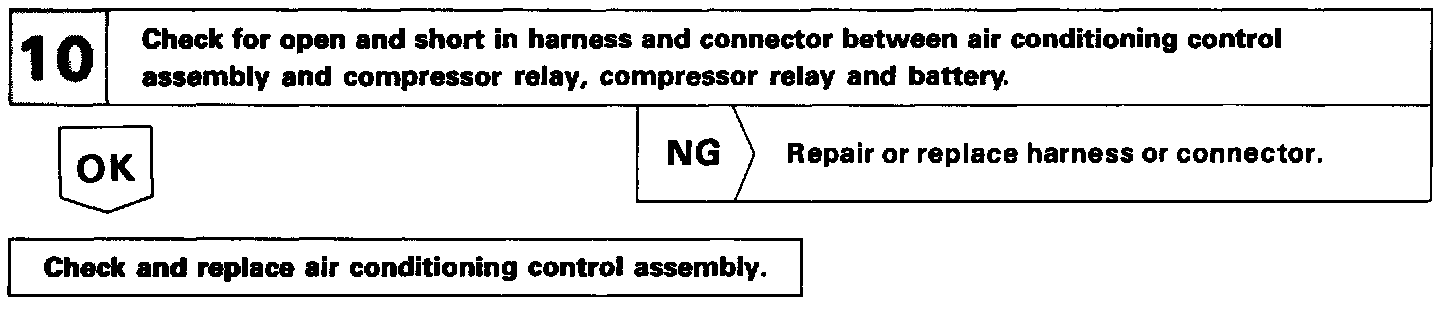

Step 10:
