Data Link Connector: Description and Operation

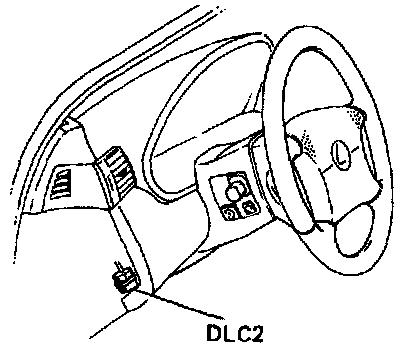

The DLC2 is provided inside the cabin (located under the left side instrument panel) as a connector exclusively for diagnosis of data from the engine, automatic transmission, ABS, A/C. Airbag, Traction Control and Cruise Control System to improve serviceability.

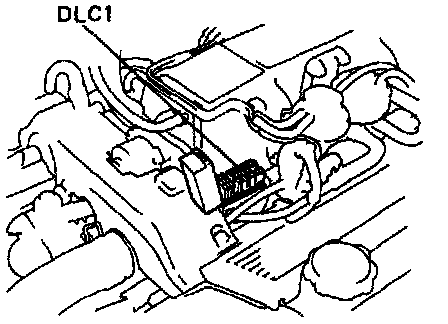

The DLC 1 inside the engine compartment is used for engine adjustment.

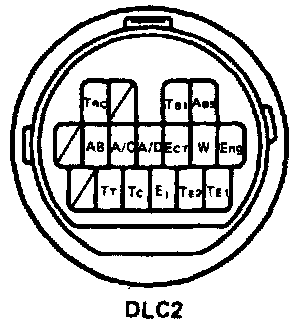

Connecting the following terminals of the DLC2 to terminal E1 selects the diagnosis mode shown.

NOTICE: Never make a mistake with the terminal connection position as this will cause a malfunction.





Refer to the respective system for the inspection method.

HINT: By connecting the DLC2 up to a monitor specifically designed for use with the DLC2, the diagnosis result for each system can be read easily.
