Component Inspection

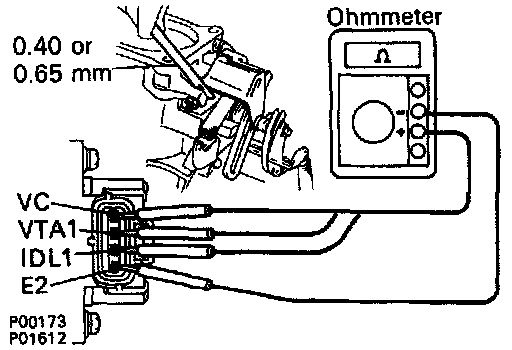

1. Insert a 0.40 mm (0.016 in) or 0.65 mm (0.026 in) feeler gauge between the throttle stop screw and stop lever.

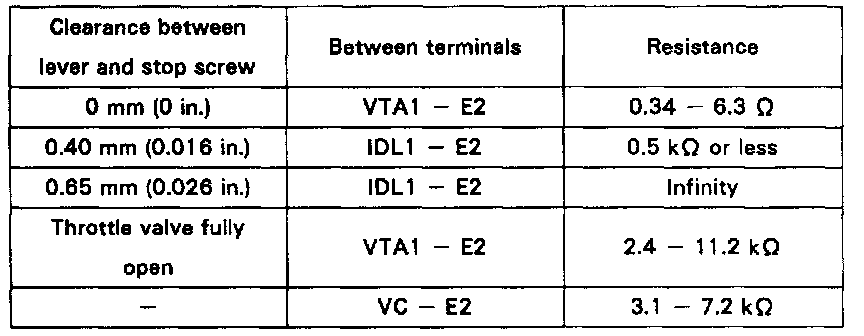

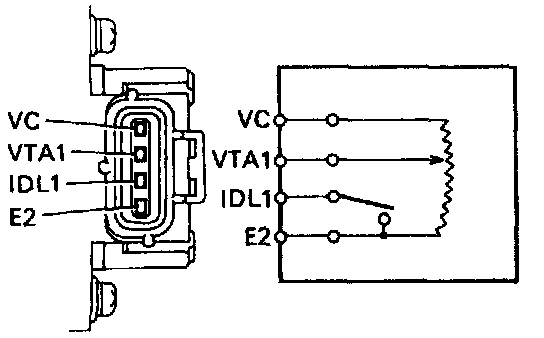

2. Using an ohmmeter, measure the resistance between each terminal.
