Sub Throttle Position Sensor Signal

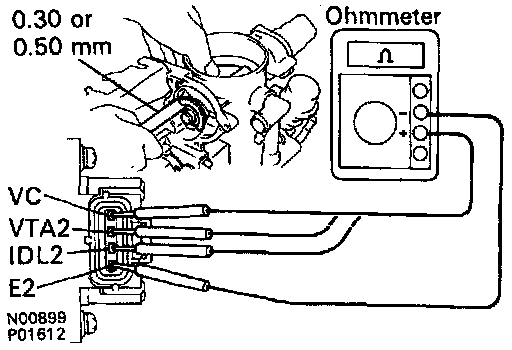

1. Insert a 0.30 mm (0.012 in) or 0.50 mm (0.020 in) feeler gauge between the throttle stop screw and throttle valve gear.

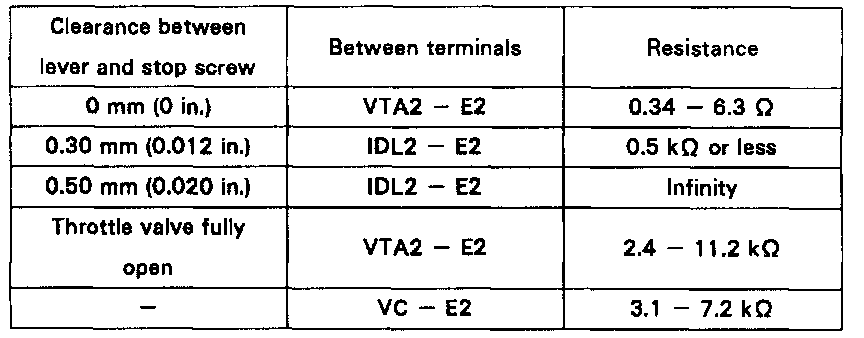

2. Using an ohmmeter, measure the resistance between each terminal.

3. If necessary, adjust sub-throttle position sensor.
- Refer to Adjustments.
