Hazard Warning Switch Test

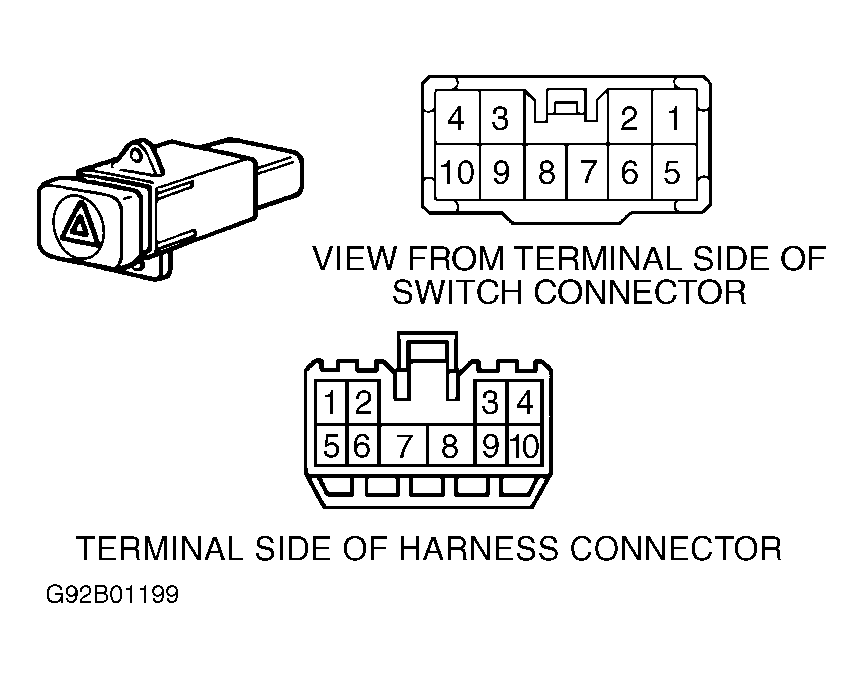

Remove hazard warning switch. With switch in OFF position, there should be continuity between terminals No. 7 and 10. See Fig 1. With switch in ON position, there should be continuity between terminals No. 7 and 8, and between terminals No. 5, 6 and 9. With switch in either position, there should be continuity between terminals No. 2 and 3 (illumination light). If continuity is not as specified, replace switch.
