Code 42 - Vehicle Speed Sensor (VSS) Circuit

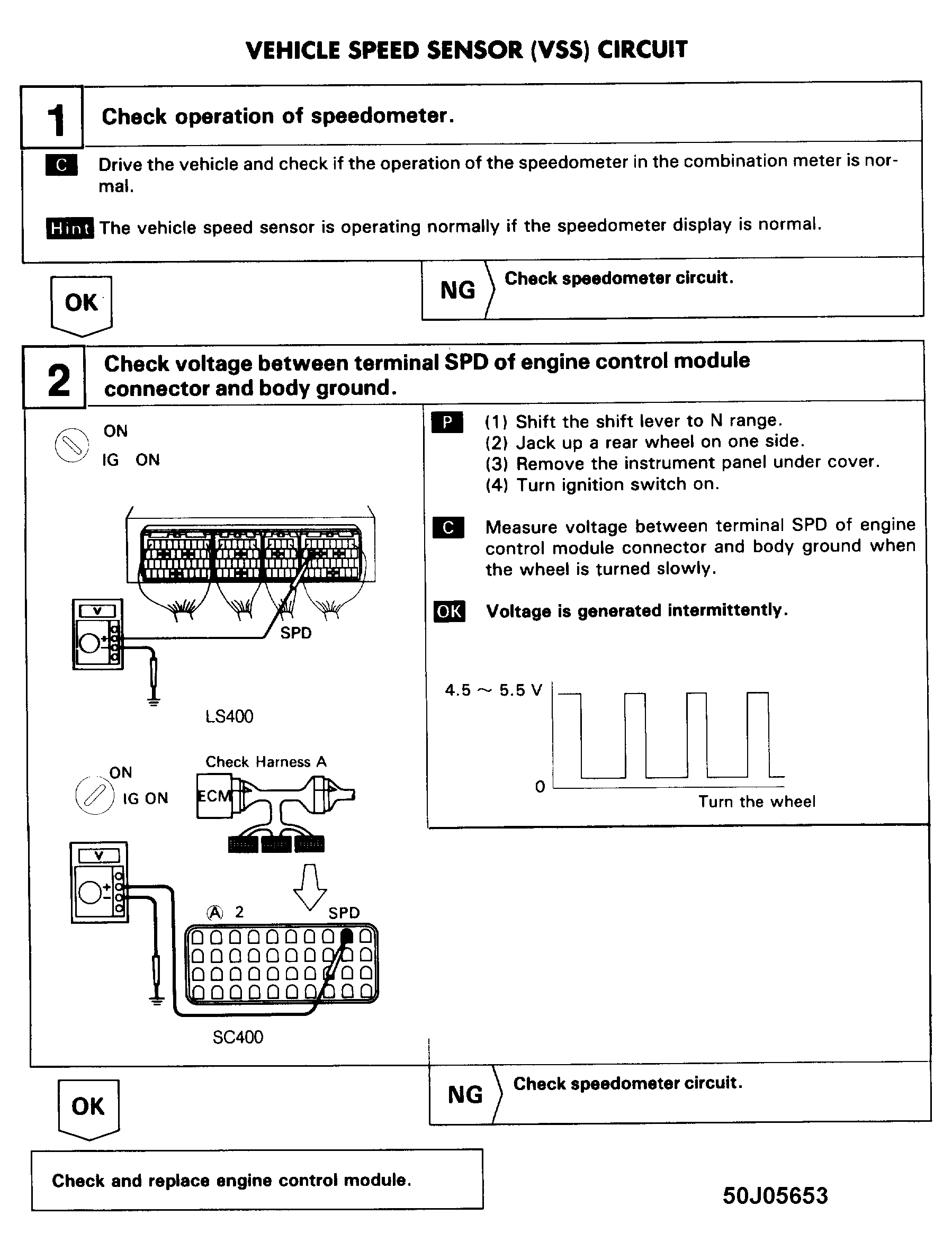

Fig 1: Code 42 Flow Chart Vehicle Speed Sensor (VSS) Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
