Code 51 - Switch Condition Signal

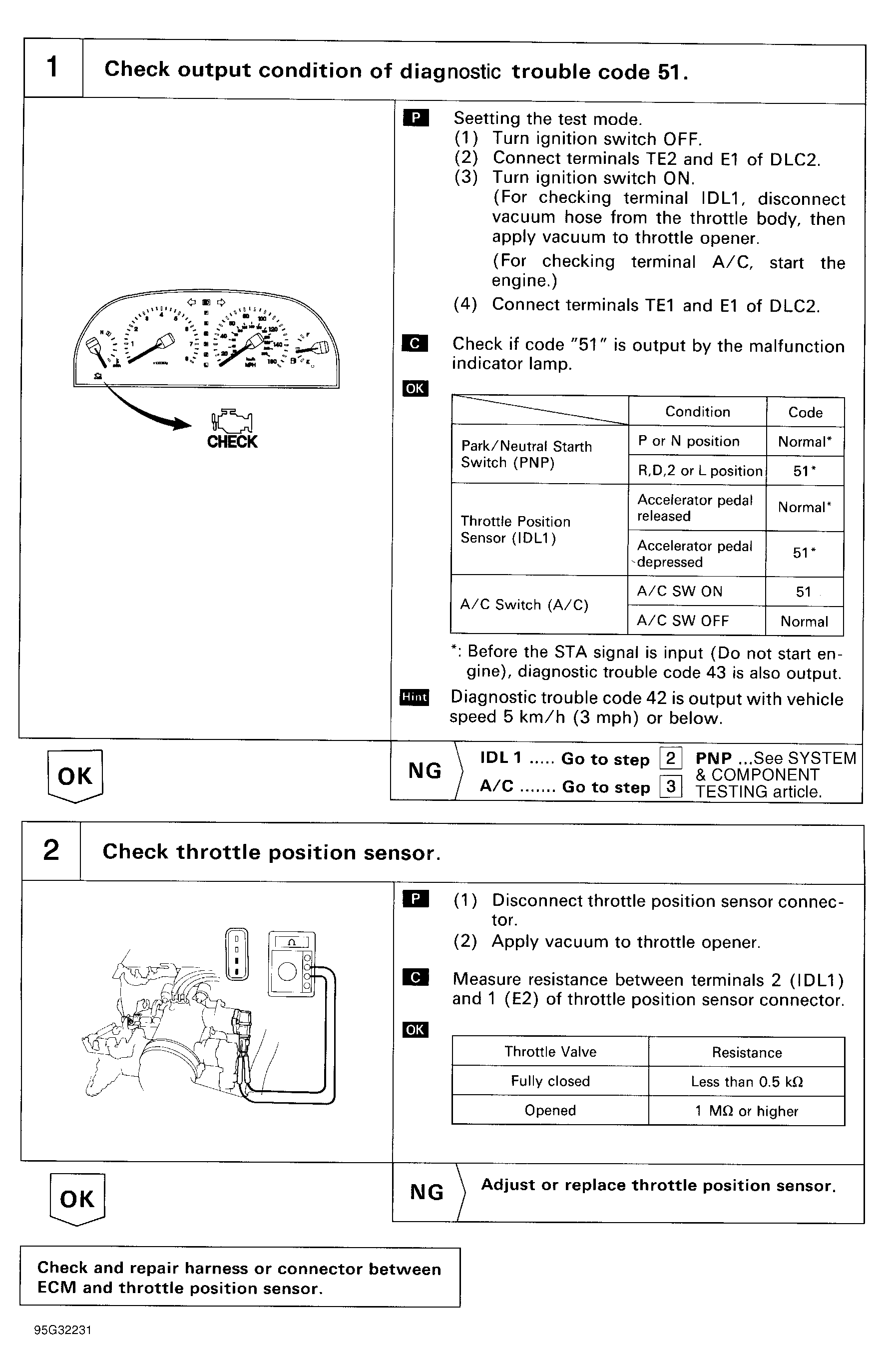

Fig 1: Code 51 Flow Chart (1 Of 2) Switch Condition Signal
G95G32231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 51 Flow Chart (2 Of 2) Switch Condition Signal
G50G05656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
