Shift Lock Plate Clearance: T100

Turn ignition switch key to ACC position. Set control shaft to "D" position. Measure clearance between stopper and shift lock plate. Clearance should be .039" (1.0 mm) plus or minus .031" (.8 mm). See Fig 3. When control shaft is set to "D" position, ensure ignition key does not turn to LOCK position.

Fig 1: Measuring Shift Lock Pin Length (Previa)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

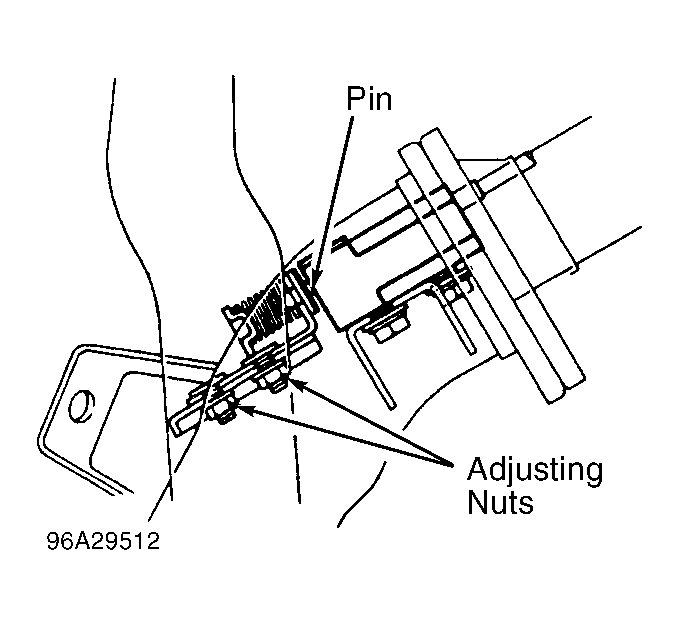

Fig 2: Adjusting Parking Lock Cable (Previa)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

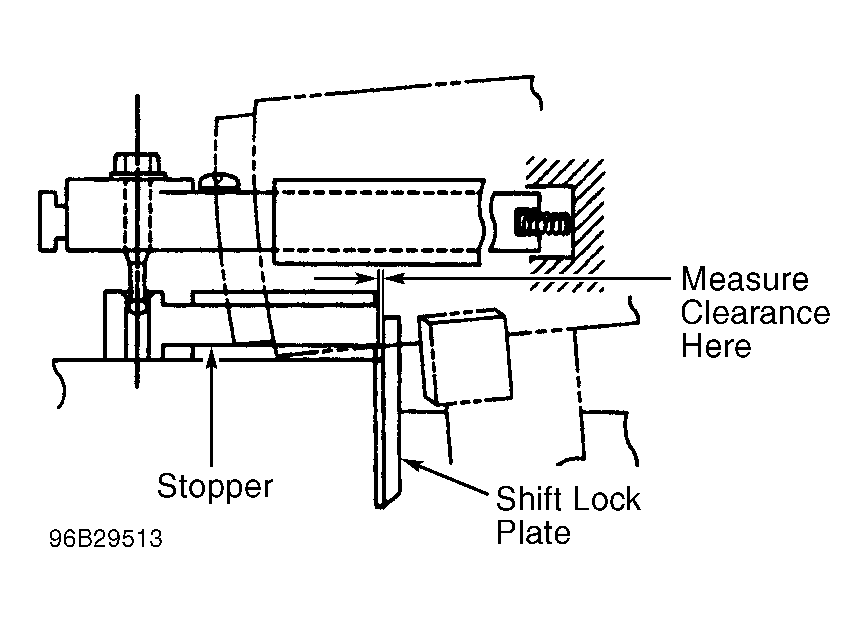

Fig 3: Measuring Shift Lock Plate Clearance (T100)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
