Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

1. DRAIN ENGINE COOLANT
2. REMOVE ECT SENSOR
- Disconnect the ECT sensor connector.

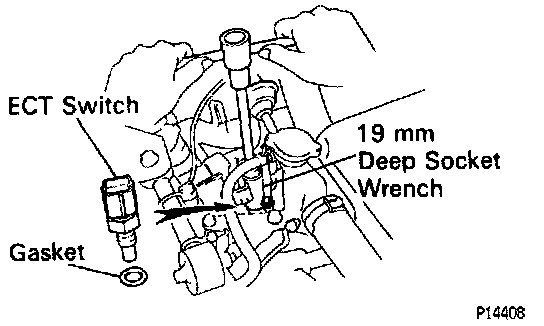

- Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.





3. INSPECT ECT SENSOR

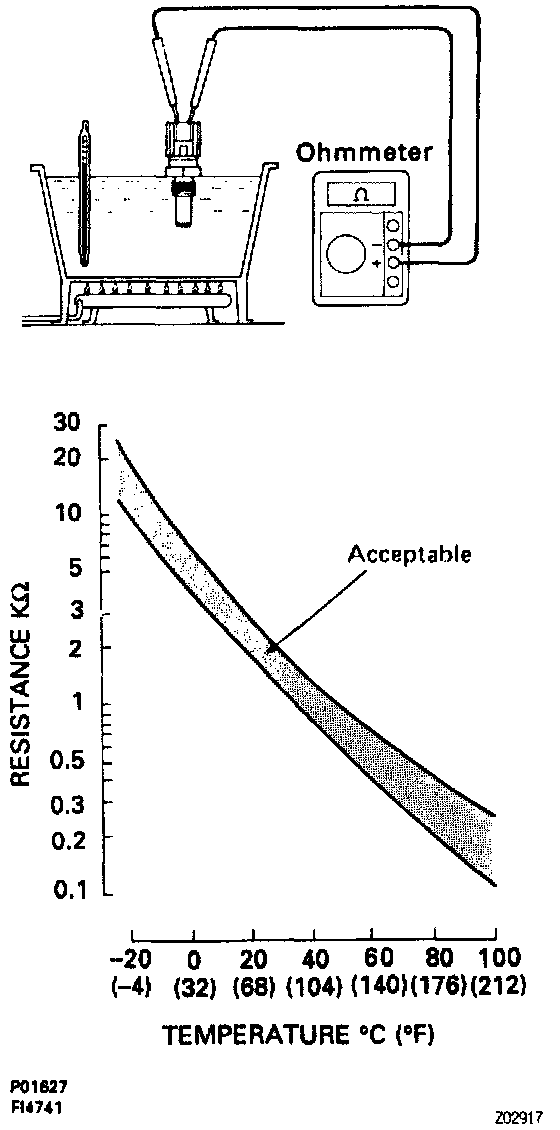

- Using an ohmmeter, measure the resistance between the terminals.

Resistance: Refer to the graph

- If the resistance is not as specified, replace the ECT sensor.
4. REINSTALL ECT SENSOR
- Install a new gasket to the ECT sensor.
- Using a 1 9 mm deep socket, install the ECT sensor.

Torque: 20 N.m (200 kgf.cm, 14 ft.lb.)

- Connect the ECT sensor connector.
5. REFILL WITH ENGINE COOLANT
