Resistance Check (Short Circuit Check)

2. RESISTANCE CHECK (SHORT CIRCUIT CHECK)

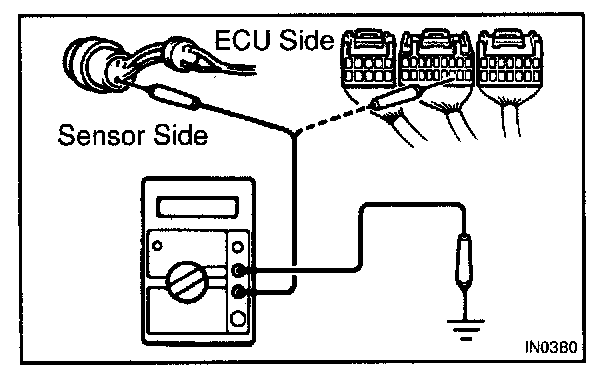

- Disconnect the connectors at both ends.
- Measure the resistance between the applicable terminals of the connectors and body ground.
- Be sure to carry out this check on the connectors on both ends.

Resistance: 1 M Ohms or higher

HINT: Measure the resistance while lightly shaking the wire harness vertically and horizontally.
