Throttle Position Sensor: Testing and Inspection









1. Apply vacuum to the throttle opener.

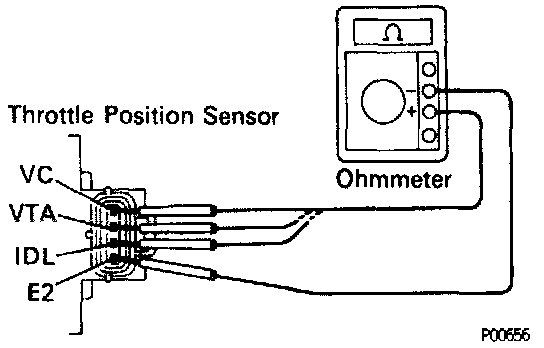

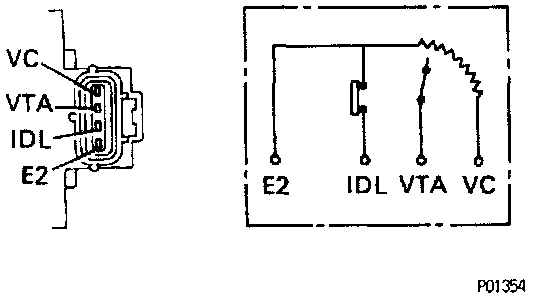

2. Disconnect the sensor connector.

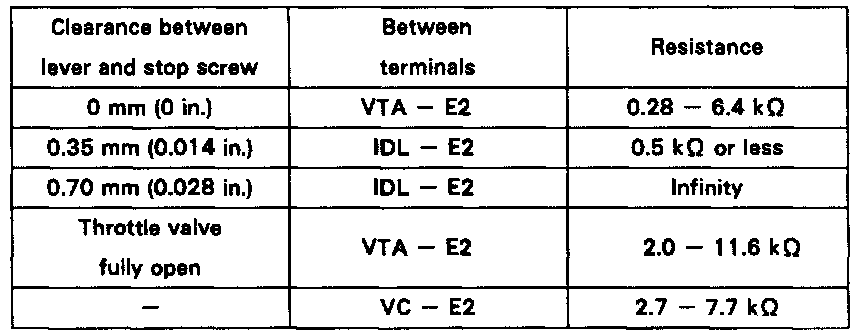

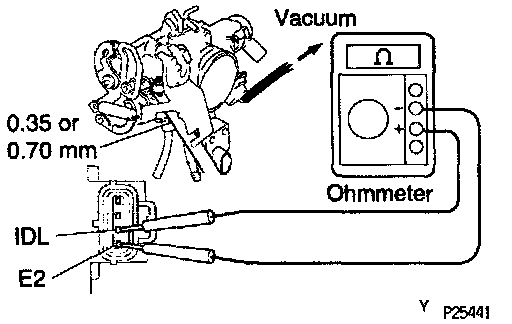

3. Insert a feeler gauge between the throttle stop screw and stop lever.
