Driver's Door

  1. Disconnect the connector from the master switch.
  2. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 6 on the wire harness side connector and raise the window to full closed position. See Fig 1.
  3. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds. See Fig 1.
  4. Reverse the polarity, check that the window begins to descend within approximately 60 seconds. See Fig 2. If operation is not as specified, replace the motor.

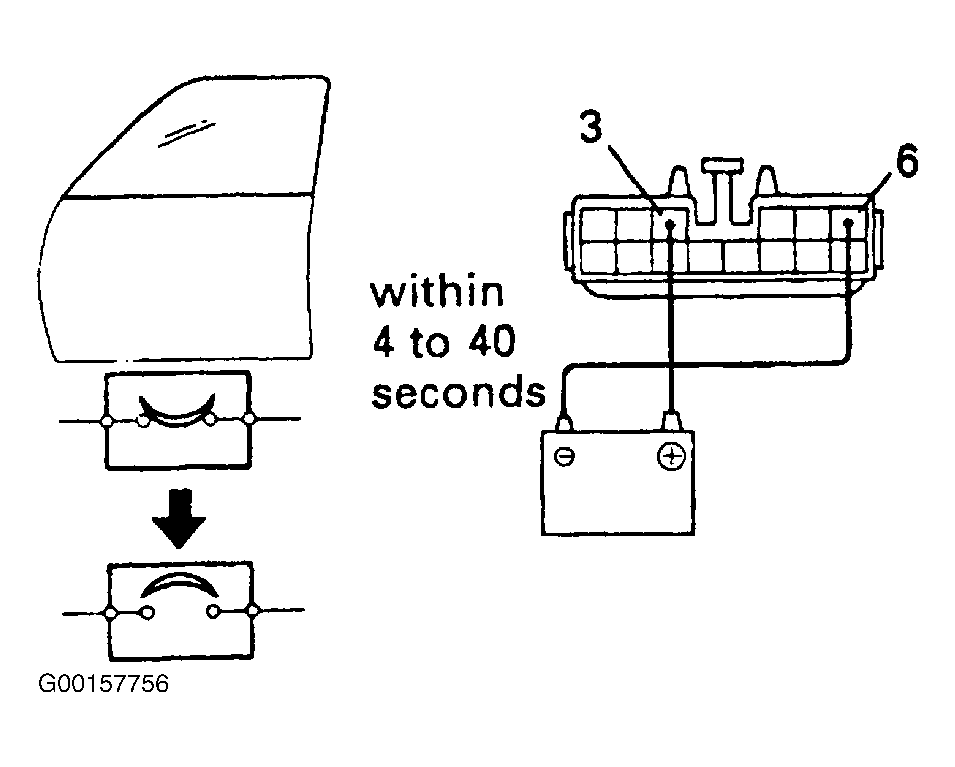

Fig 1: Testing Driver's Door Motor Circuit Breaker (1 Of 2)
G00157756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

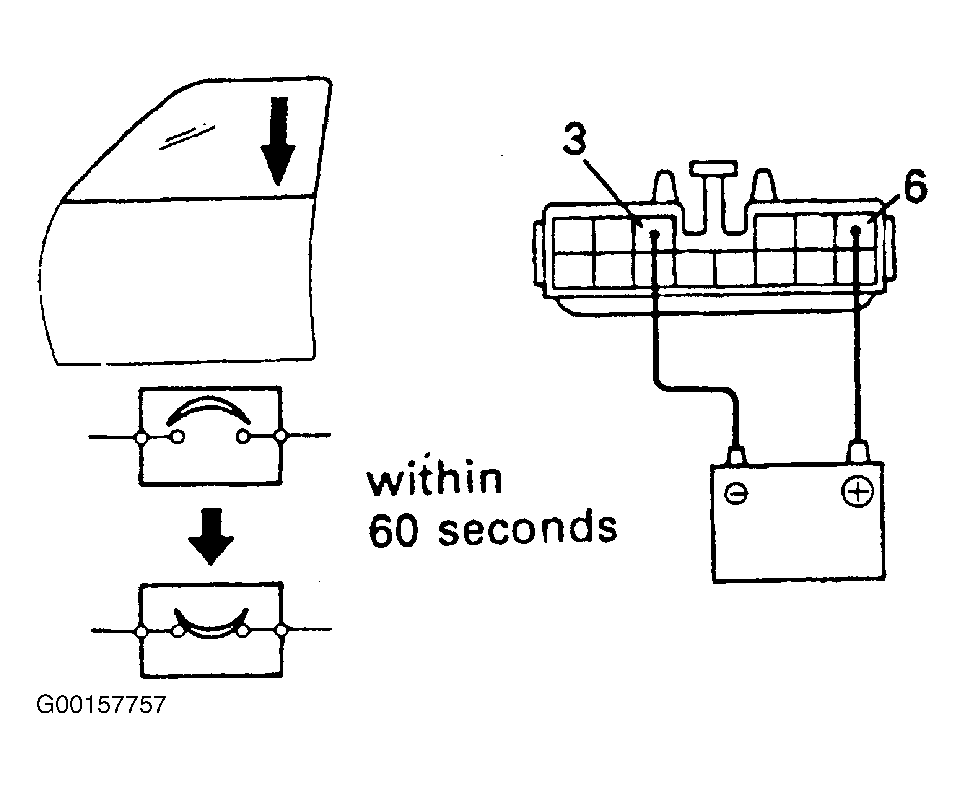

Fig 2: Testing Driver's Door Motor Circuit Breaker (2 Of 2)
G00157757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
