Connector Identification

CONNECTOR IDENTIFICATION

Description Illustration
ABS Actuator See Fig 1
ABS Control Relay Harness See Fig 2
ABS Control Relay Component See Fig 3
Electronic Control Unit See Fig 4

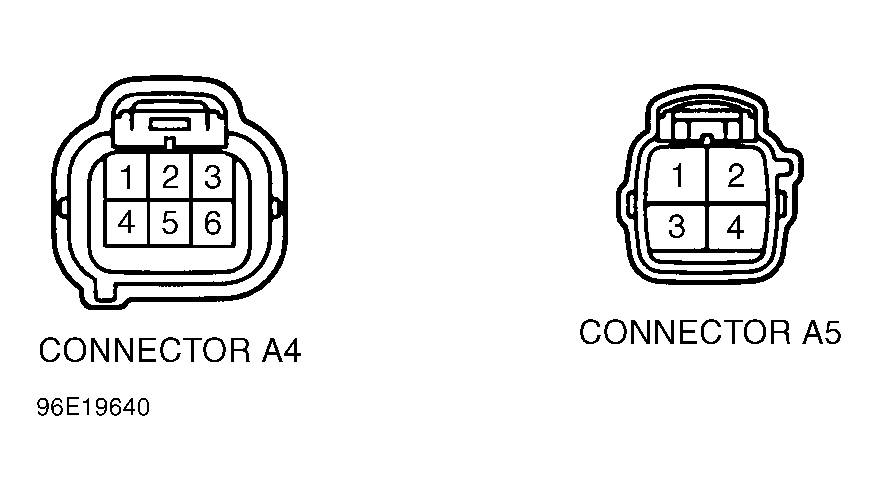

Fig 1: Identifying ABS Actuator Harness Connector Terminals
G96E19640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

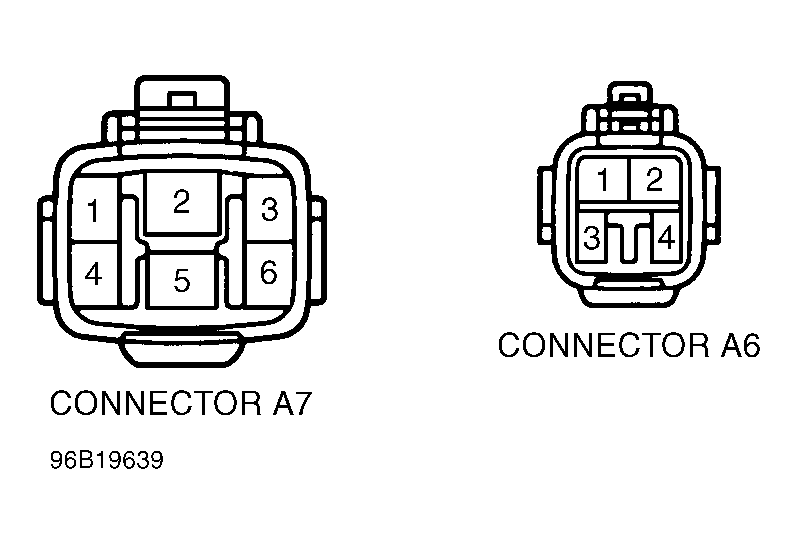

Fig 2: Identifying ABS Control Relay Harness Connector Terminals
G96B19639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

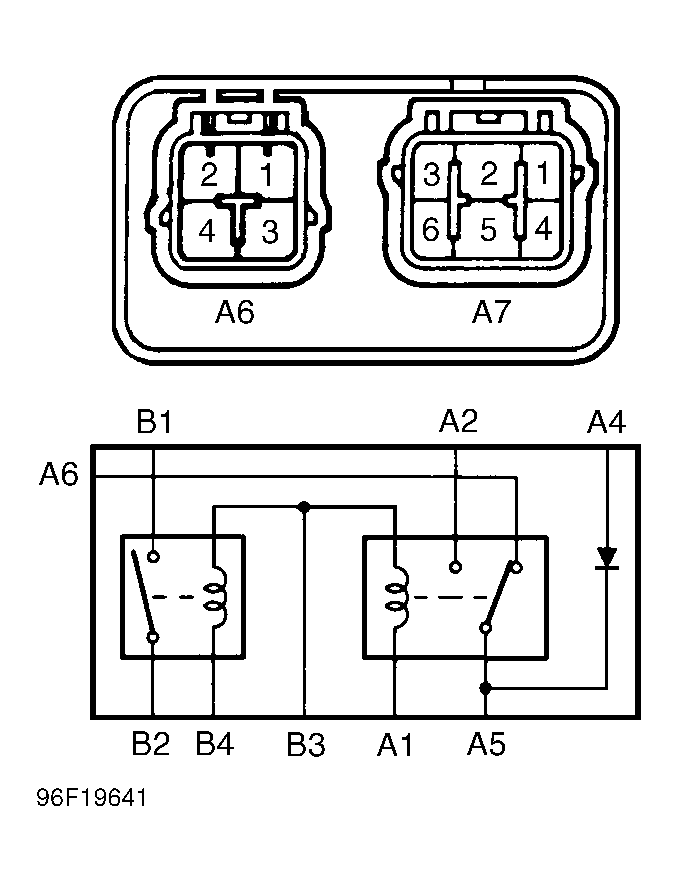

Fig 3: Identifying ABS Control Relay Component Connector Terminals
G96F19641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

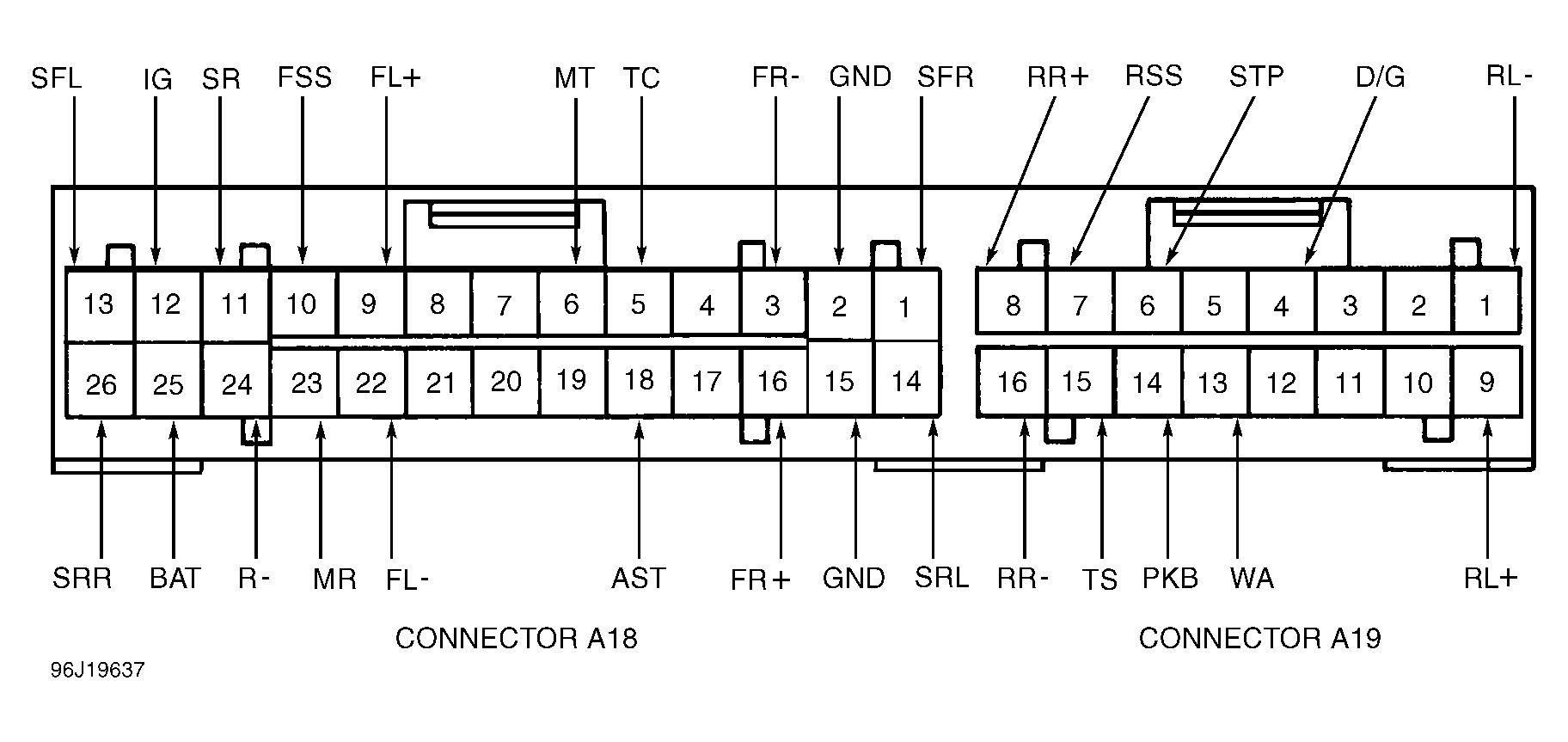

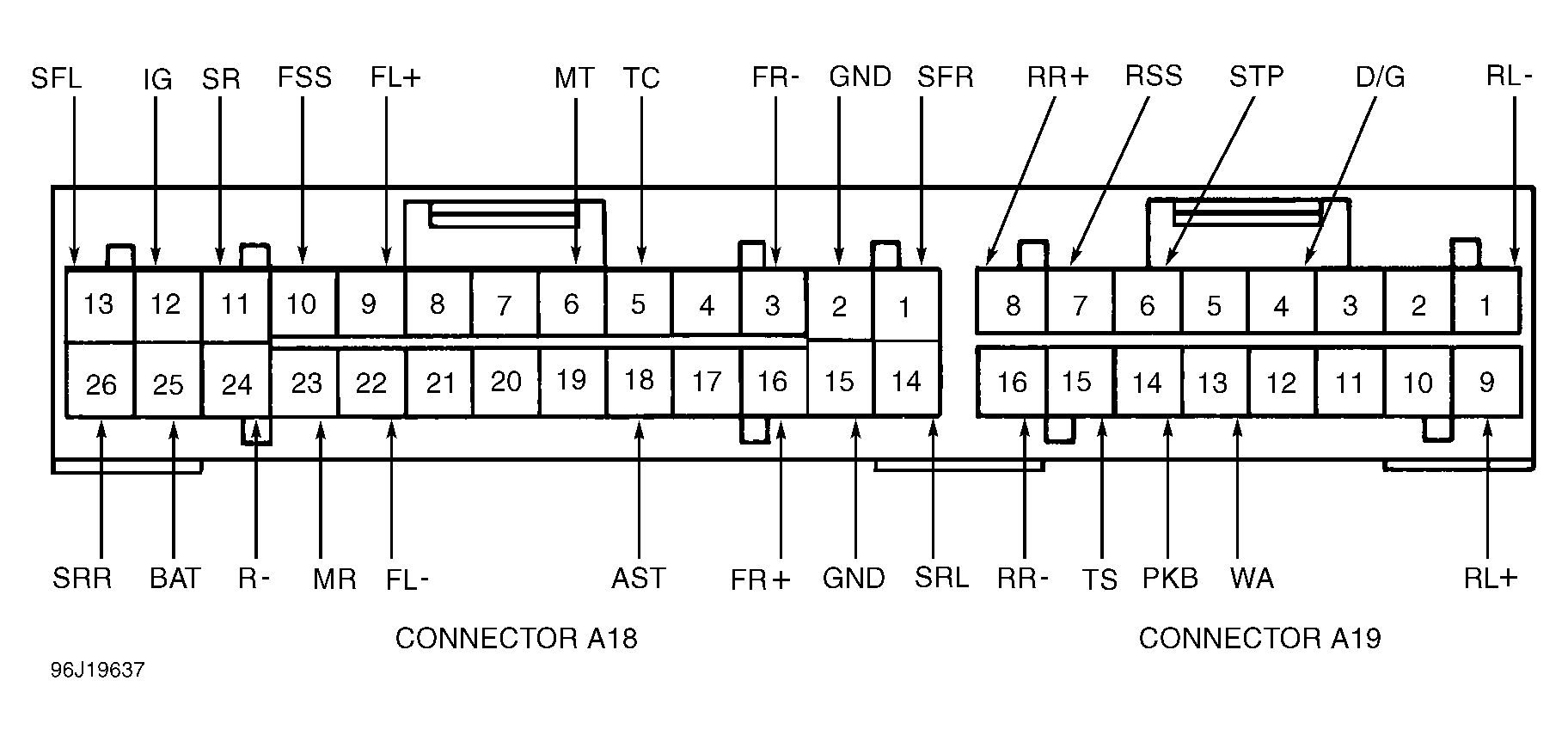

Fig 4: Identifying Electronic Control Unit Terminals
G96J19637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
