Electrical Component Locator: Switches
SWITCHES
| Component | Component Location |
|---|---|
| A/C Pressure Switch | On refrigerant line, near receiver-drier. |
| Back-Up Lamp Switch | Front of engine compartment, near exhaust manifold. |

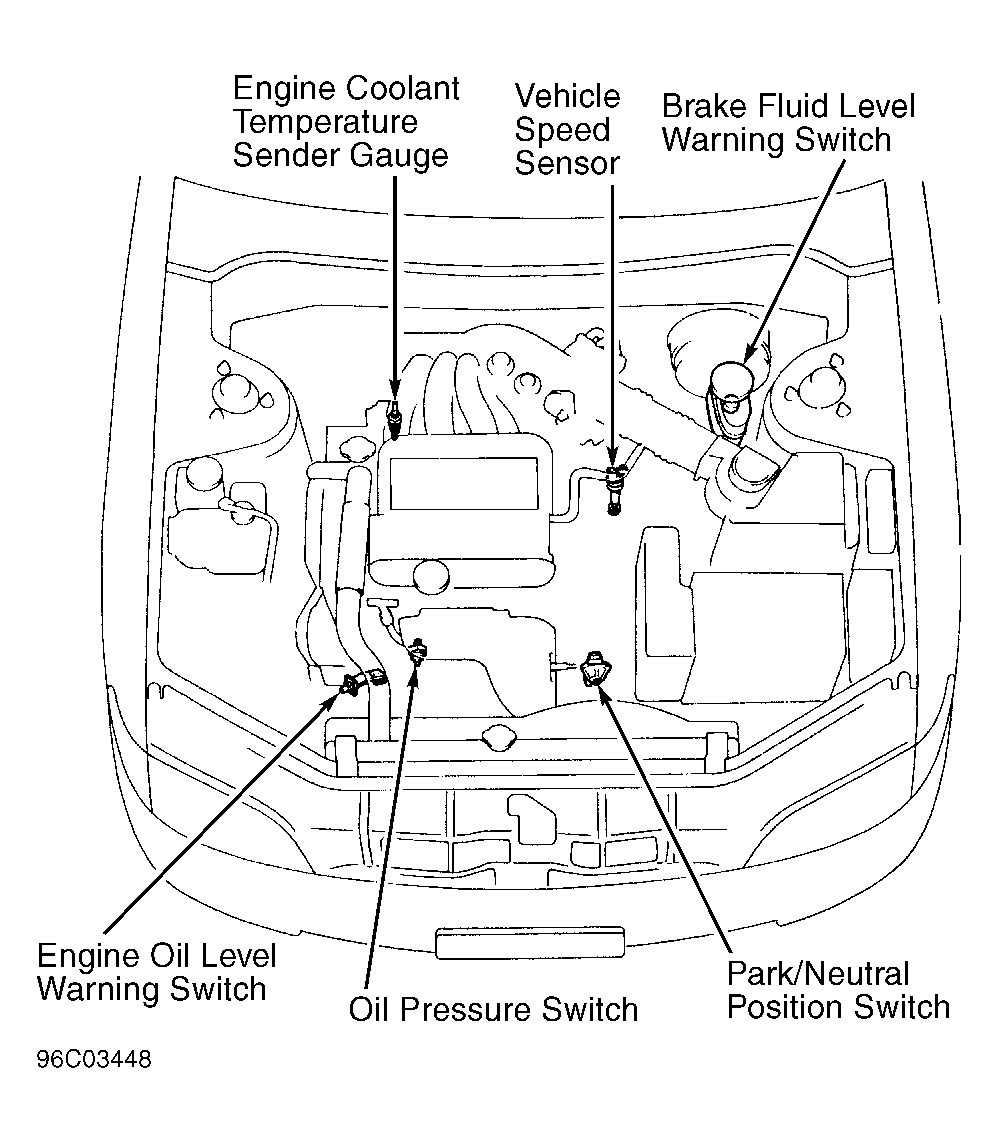

| Brake Fluid Level Warning Switch | In brake fluid reservoir. See Figure. |
| Buckle Switch | On driver-side seat belt buckle. See Figure. |
| Clutch Start Switch (M/T) | On floorboard, behind clutch pedal. |
| Door Courtesy Switch | In each passenger door. See Figure. |
| ECT Pattern Select Switch | Bottom of shift selector. See Figure. |
| Engine Oil Level Warning Switch | On left front side of engine, in oil pan. See Figure. |
| Hazard Warning Switch | Under center dash, behind console. See Figure. |
| Ignition Switch (View 1) | In steering column. See Figure. |
| Ignition Switch (View 2) | In steering column. See Figure. |
| O/D Off Switch | On shift selector. See Figure. |
| Oil Pressure Switch | On lower left front of engine block, near dipstick. See Figure. |
| Parking Brake Switch | Bottom of parking brake lever. See Figure. |
| Park/Neutral Position Switch | Front of engine compartment, near exhaust manifold. See Figure. |
| Stoplamp Switch | On bracket, above brake pedal. |
| Twin Trip Switch | On right side of dash, below meter assembly. See Figure. |
