Connector Identification

CONNECTOR IDENTIFICATION

Description Illustration
ABS Actuator See Fig 1
ABS Electronic Control Unit (Non-TRAC) See Fig 2
ABS Electronic Control Unit (TRAC) See Fig 3
ABS Motor Relay See Fig 4
ABS Solenoid Relay See Fig 5
Schematic (ABS Motor Relay) See Fig 6
Schematic (ABS Solenoid Relay) See Fig 7
Schematic (TRAC Motor Relay) See Fig 6
Schematic (TRAC Solenoid Relay) See Fig 6
TRAC Actuator See Fig 8
TRAC Electronic Control Unit See Fig 9
TRAC Motor Relay See Fig 10
TRAC Pump Motor See Fig 11
TRAC Solenoid Relay See Fig 12

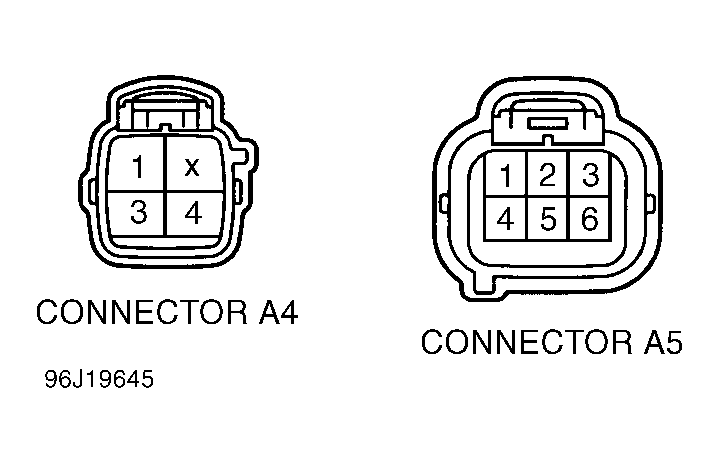

Fig 1: Identifying ABS Actuator Harness Connector Terminals
G96J19645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

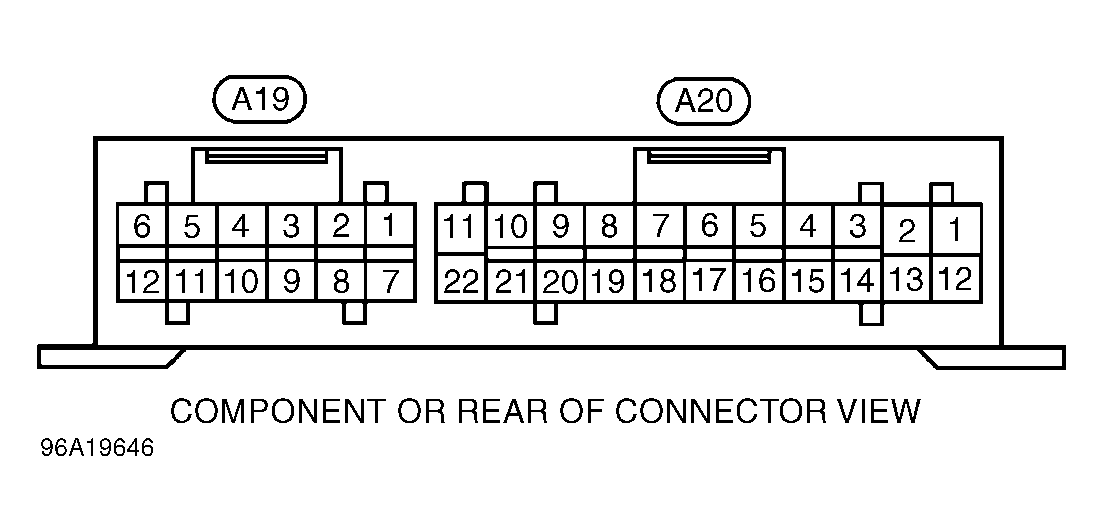

Fig 2: Identifying ABS Electronic Control Unit (Non-TRAC) Terminals
G96A19646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TERMINAL IDENTIFICATION (NON-TRAC)

Terminal No. Description
Connector A19
1 FR+
2 Not Used
3 FL+
4 R-
5 SR
6 SFL
7 FR-
8 AST
9 Not Used
10 FL-
11 MR
12 SRR
Connector A20
1 SFR
2 GND
3 RL-
4 Not Used
5 Not Used
6 Ts
7 STP
8 Not Used
9 Not Used
10 WA
11 IG
12 Not Used
13 GND
14 RL+
15 Not Used
16 PKB
17 Tc
18 Not Used
19 RR+
20 RR-
21 D/G
22 BATT
Fig 3: Identifying ABS Electronic Control Unit (TRAC) Terminals
G96B19647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TERMINAL IDENTIFICATION (TRAC)

Terminal No. Description
Connector A16
1 TSR
2 MR
3 VC
4 FR-
5 FL+
6 STP
7 BATT
8 Not Used
9 Not Used
10 LBL
11 Ts
12 R-
13 SFL
14 TMR
15 SR
16 E2
17 FR+
18 FL-
19 ALT
20 Not Used
21 AST
22 PR
23 Tc
24 IG
25 GND
26 SRR
Connector A17
1 RL-
2 RR+
3 Not Used
4 RLO
5 BRFA
6 RRO
7 THFA
8 BRC
9 RL+
10 RR-
11 BRP
12 Not Used
13 FRO
14 TRCO
15 FLO
16 ABSO
Connector A18
1 SFR
2 SMC
3 SAC
4 GND
5 WA
6 Not Used
7 SRL
8 SRC
9 GND
10 D/G
11 Not Used
12 PKB

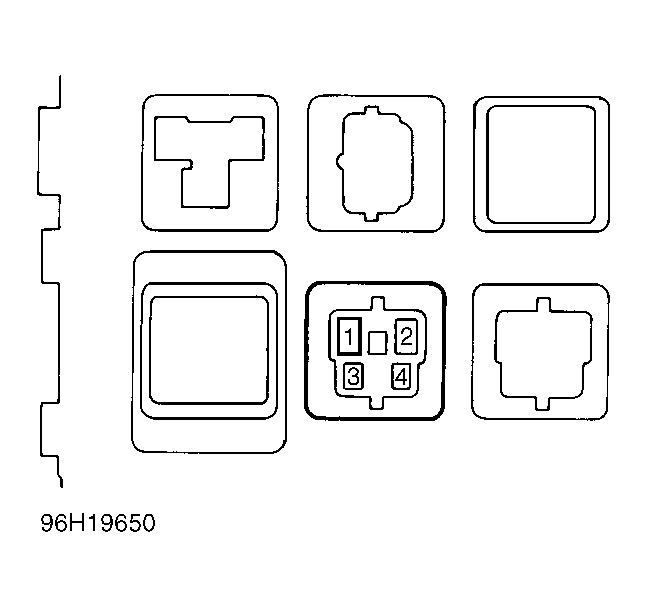

Fig 4: Identifying ABS Motor Relay Connector Terminals
G96H19650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

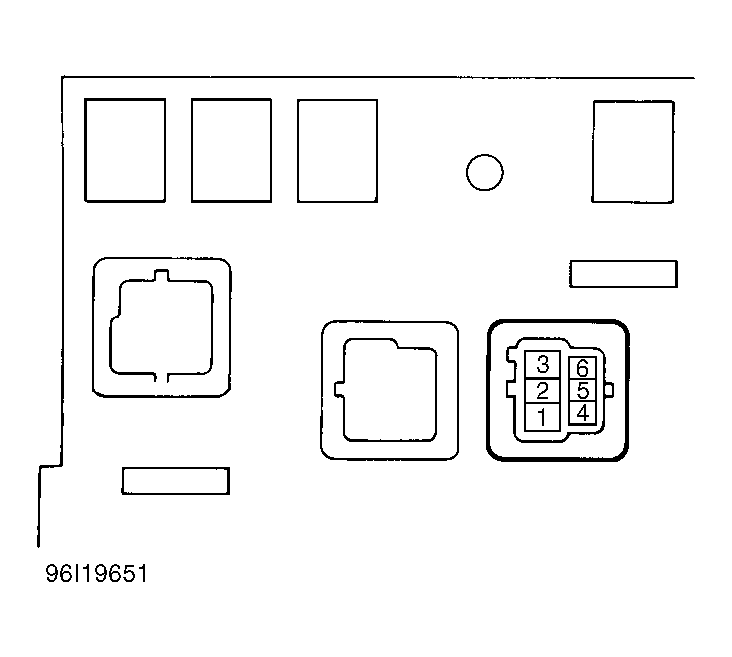

Fig 5: Identifying ABS Solenoid Relay Connector Terminals
G96I19651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Schematic (ABS Motor Relay, TRAC Motor Relay & TRAC Solenoid Relay)
G96C19630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Identifying Schematic (ABS Solenoid Relay)
G96D19631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

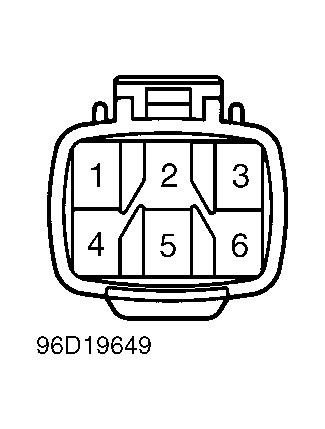

Fig 8: Identifying TRAC Actuator Harness Connector
G96D19649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

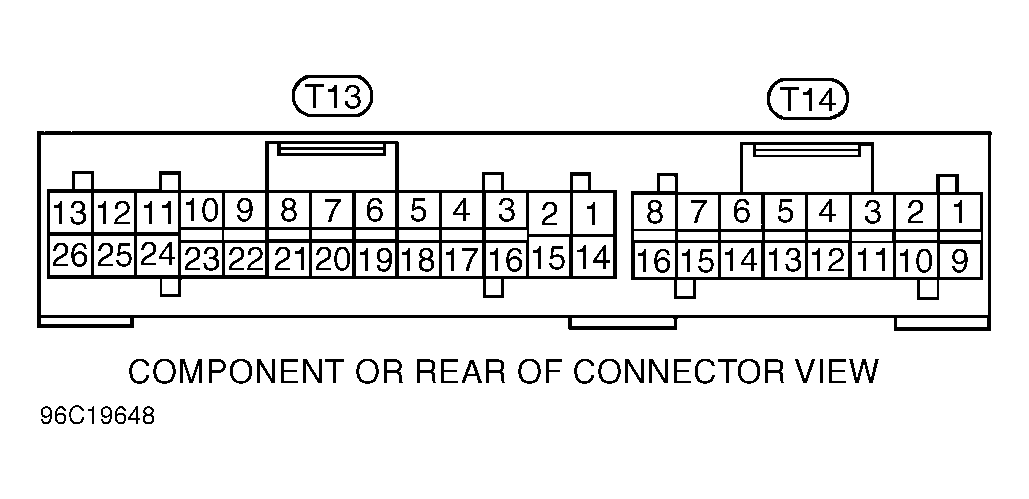

Fig 9: Identifying TRAC Electronic Control Unit Terminals
G96C19648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

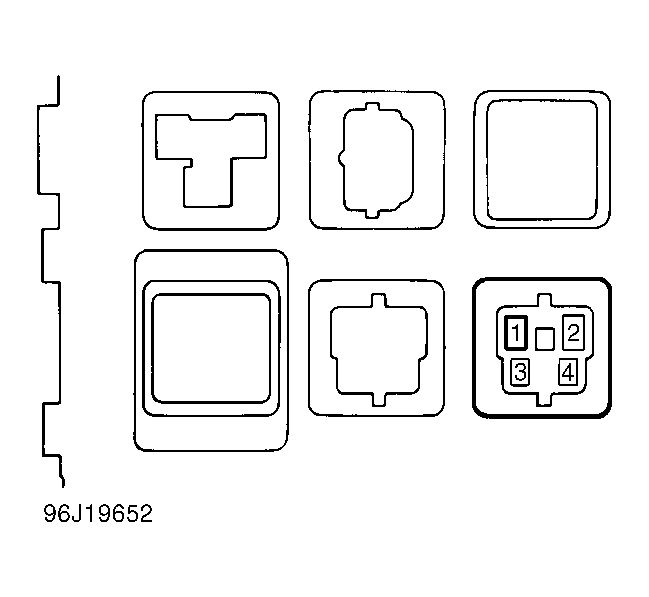

Fig 10: Identifying TRAC Motor Relay Connector Terminals
G96J19652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Identifying TRAC Pump Motor Harness Connector Terminals
G96A19653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

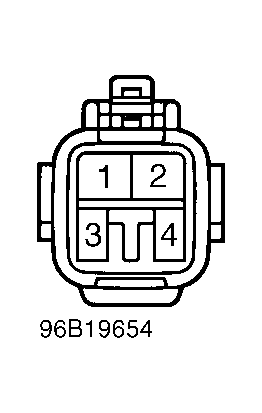

Fig 12: Identifying TRAC Solenoid Relay Harness Connector
G96B19654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
