Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

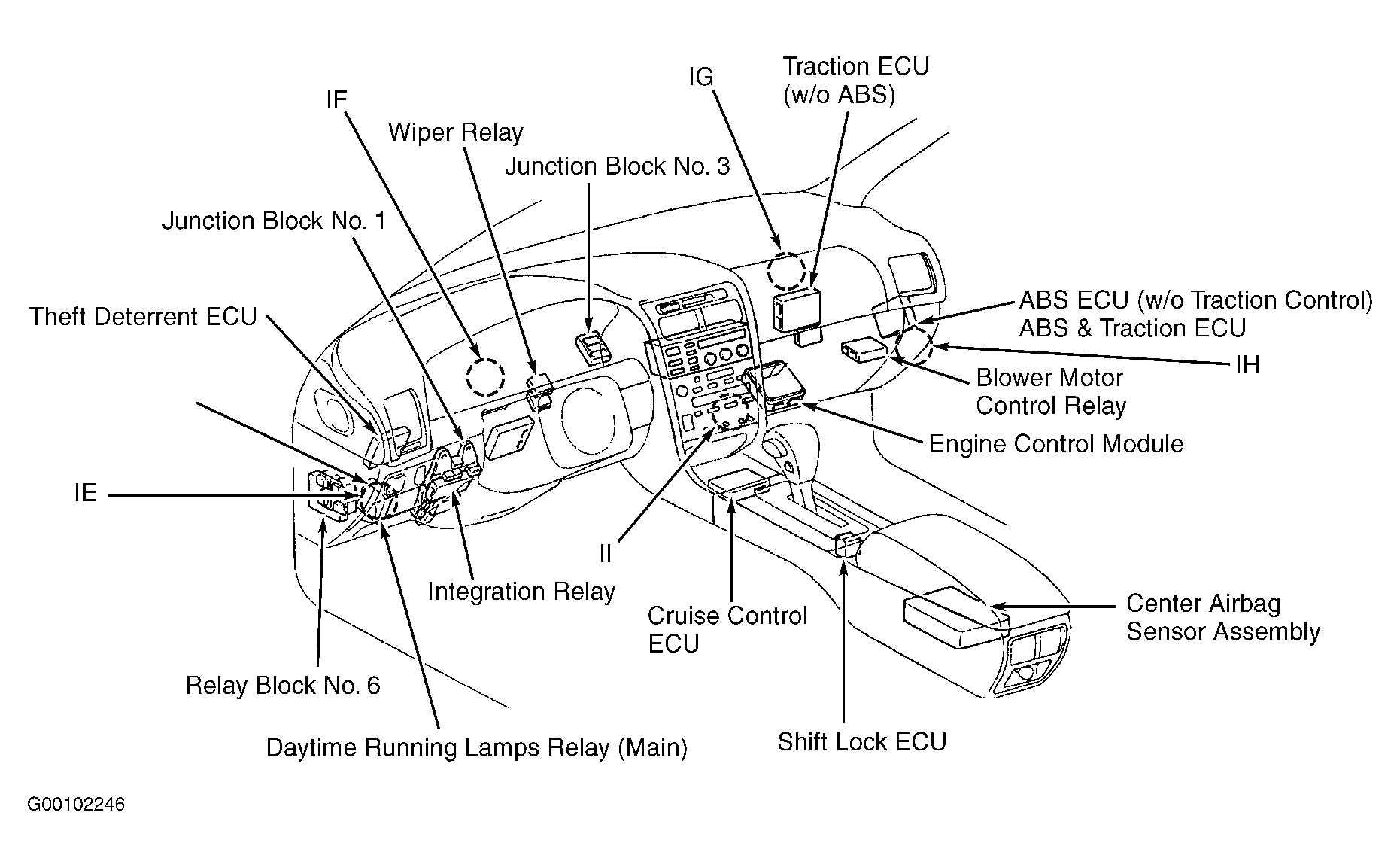

Junction Block No. 1 (View 1) Below left of dash. See Figure.
Junction Block No. 1 (View 2) Below left of dash. See Figure.
Junction Block No. 3 Behind left side & center of dash. See Figure.

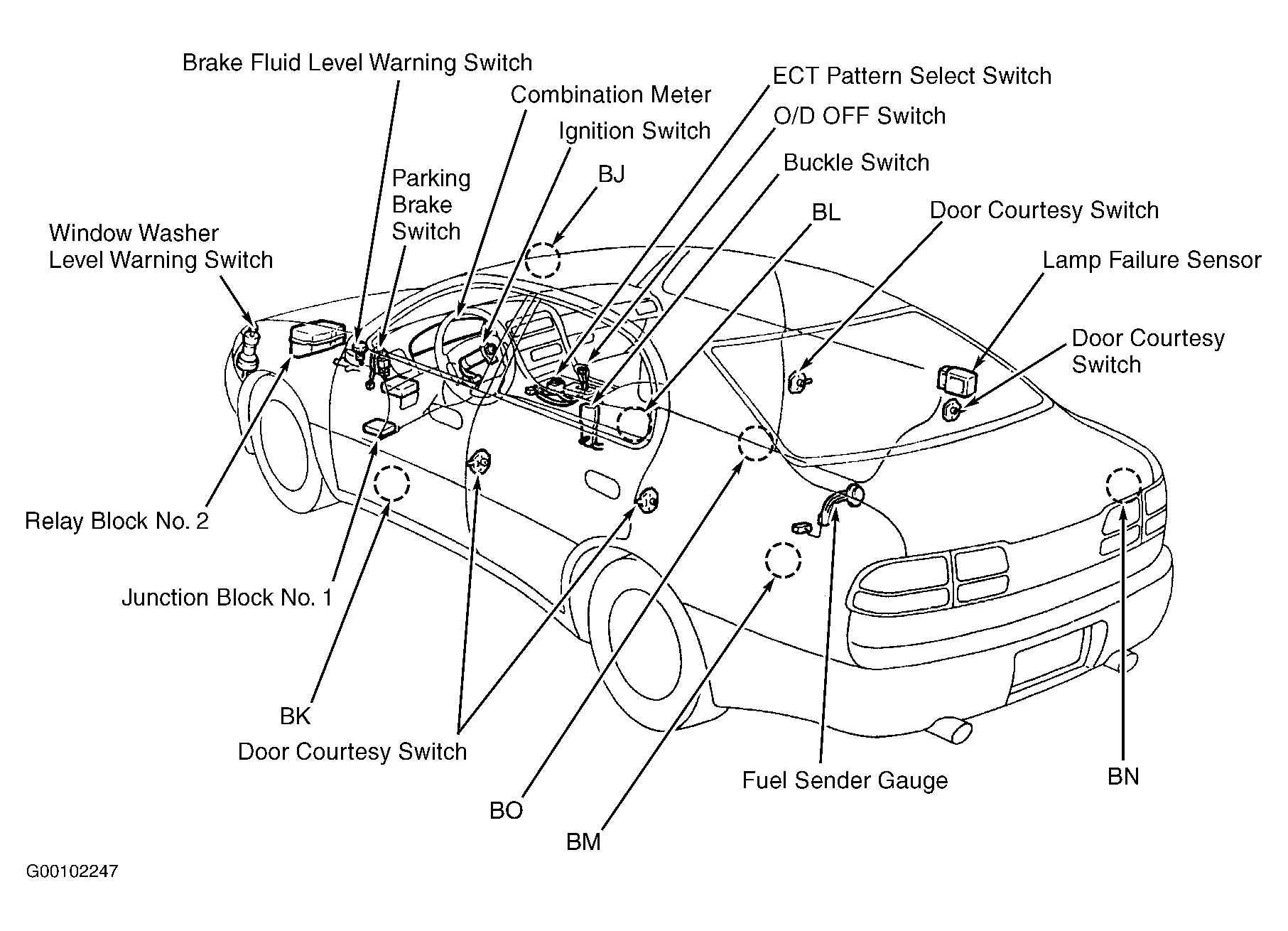

Relay Block No. 2 Left front corner of engine compartment. See Figure.
Relay Block No. 6 Under left side of dash. See Figure.
