Heated Oxygen Sensor: Installation

Before installing sensor, twist sensor wire counterclockwise 3 1/2 turns. Apply anti-seize compound on sensor threads and install sensor. Tighten sensor to specification. See TORQUE SPECIFICATIONS. Ensure sensor wire is not twisted.

Before installing sensor, twist sensor wire counterclockwise 3 1/2 turns. Apply anti-seize compound on sensor threads and install sensor. Tighten sensor to specification. See TORQUE SPECIFICATIONS. Ensure sensor wire is not twisted. To complete installation, reverse removal procedure.

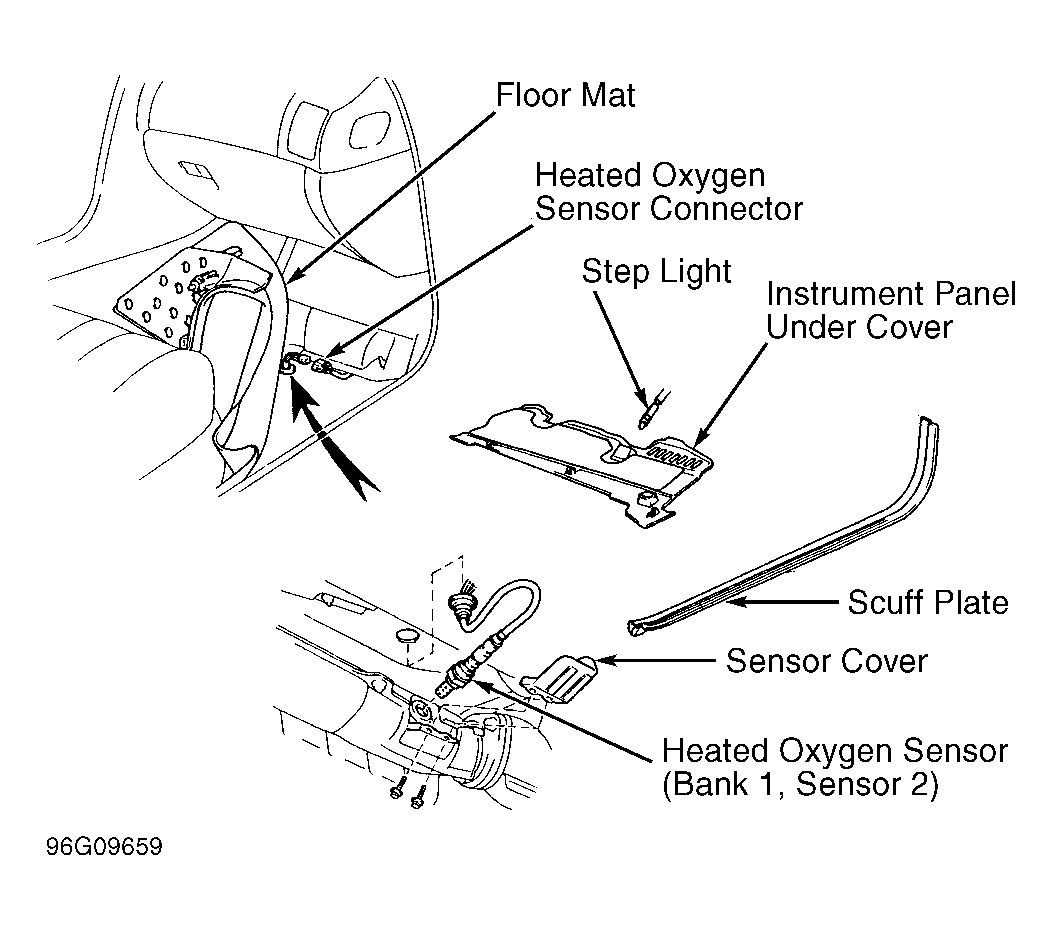

Fig 1: Removing Bank No. 1, Sensor No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
